Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 7, 2016, 11:51 AM

  • 02 1991_02 1990_07112016_035216.mp4

Date
11/07/2016
W/O
602268
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00351
PipeID
P02919
Time
3:51 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3817
Sewer Name
02 GARFIELD AVENUE EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
13
Purpose
Routine Assessment
Project
WO_602268_TV02061_NOV2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1990
Downstream MH
02 1991
Dir. of Survey
Upstream
Length Surveyed
316.5 ft.
Total Length
316.6 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 02 1990 to 02 1991
MH: 02 1990MH: 02 1991upstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 19918.5 ft. CM - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES15.1 ft. CS - Crack Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES105 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"115.5 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"234.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"316.6 ft. AMH - Downstream Manhole, Survey Begins - 02 1991316.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK316.6 ft. MWL - Water Level, 10 %of cross sectional area316.6 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (2)

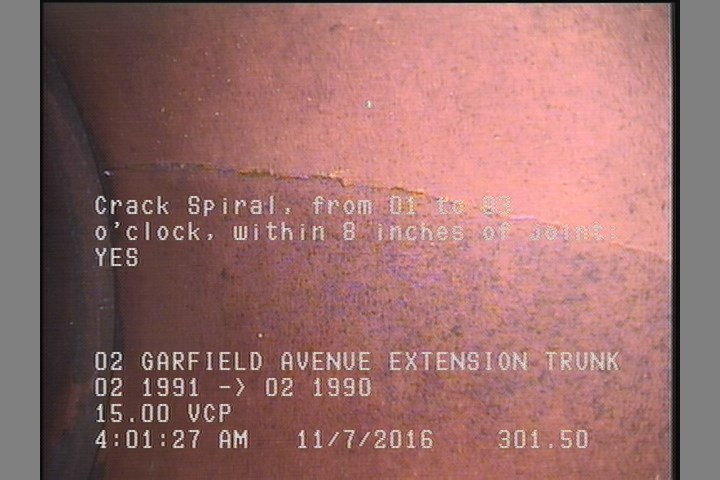

  • Crack Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES

    301.5 ft. - Crack Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES

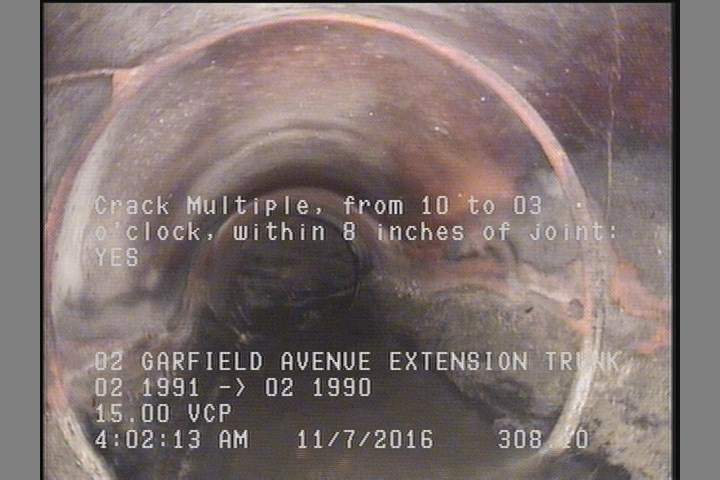

  • Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

    308.1 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

All inspections of P02919Work order 602268

Observations (10)

DistanceCodeObservation
0AMH02 1991
301.5CS—
0MGOCONNECTION AT MH 3 O'CLOCK
0MWL—
0MWM—
316.6AMH02 1991
308.1CM—
82.3TF—
201.1TF—
211.6TF—

Properties (5)

additional_info
SC304566
custom_field_two
4
customer
LACSD
datetime
2016-11-07T03:51:35-08:00
sewer_category
Gravity
