Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 6, 2017, 08:53 AM

  • J 0026_STACK_662017_025507.mp4

Date
06/06/2017
W/O
0644585
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00471
PipeID
P06930
Time
1:53 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0551
Sewer Name
05 LOMITA TRUNK
City
LOMITA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
36
Purpose
Routine Assessment
Project
20170606MDM_LOMITA_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
J 0026
Downstream MH
STACK
Dir. of Survey
Downstream
Length Surveyed
10 ft.
Total Length
10 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole J 0026 to STACK
MH: J 0026MH: STACKdownstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:20AM1 ft. MGO - General Observation - FRAME2 ft. MGO - General Observation - GRADE RING & RISER NORTH3 ft. MGO - General Observation - GRADE RING & RISER SOUTH4 ft. MGO - General Observation - NORTH SIDE STACK & CONE5 ft. MGO - General Observation - SOUTH SIDE STACK & CONE6 ft. MGO - General Observation - SHELF & PULL RING NORTH SIDE7 ft. MGO - General Observation - BOTTOM OF SHAFT8 ft. MGO - General Observation - MH CONN NO STOPLG GROOVES9 ft. MGO - General Observation - DOWNSTREAM PIPE NO STOPLOG GROOVES10 ft. MGO - General Observation - UPSTREAM PIPE NO STOPLOG GROOVES

Observation photos (10)

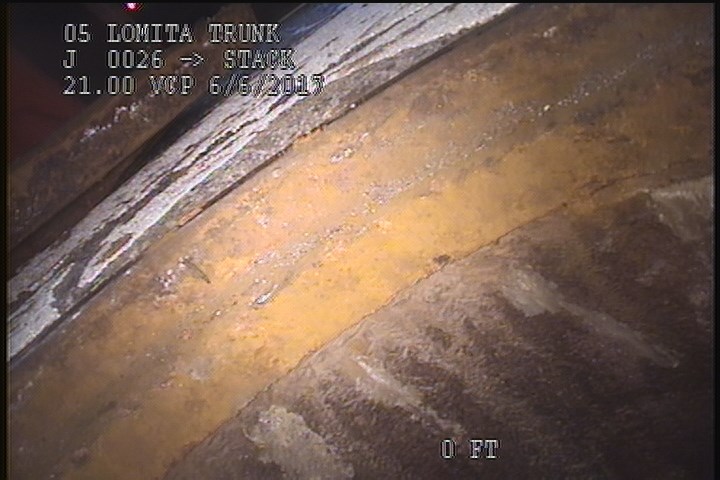

  • General Observation - FRAME

    1 ft. - General Observation - FRAME

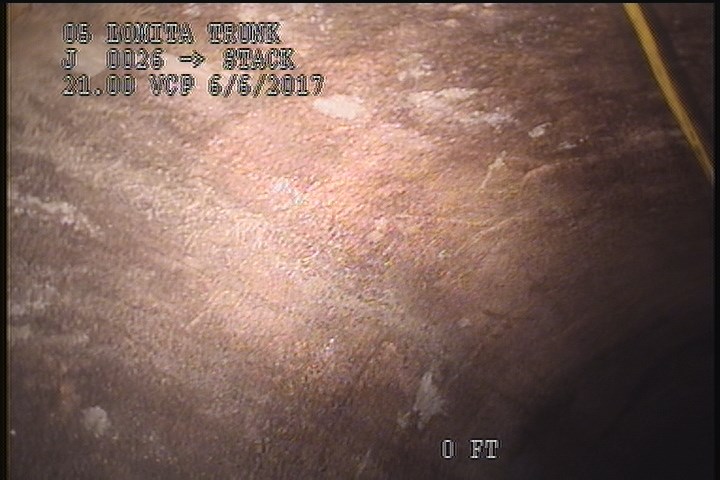

  • General Observation - GRADE RING & RISER NORTH

    2 ft. - General Observation - GRADE RING & RISER NORTH

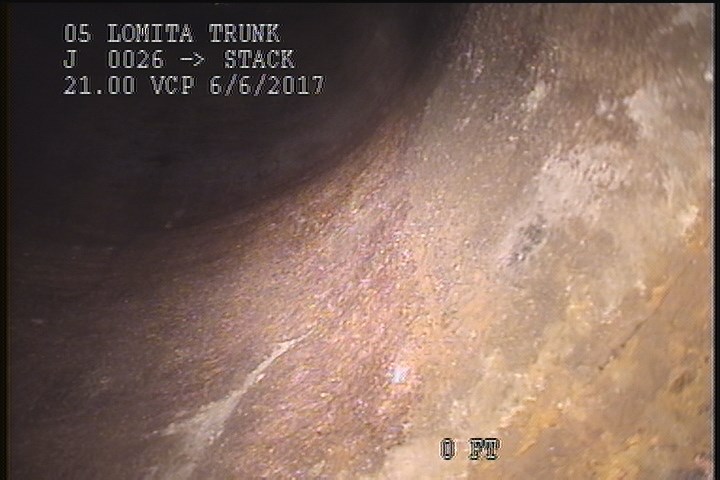

  • General Observation - GRADE RING & RISER SOUTH

    3 ft. - General Observation - GRADE RING & RISER SOUTH

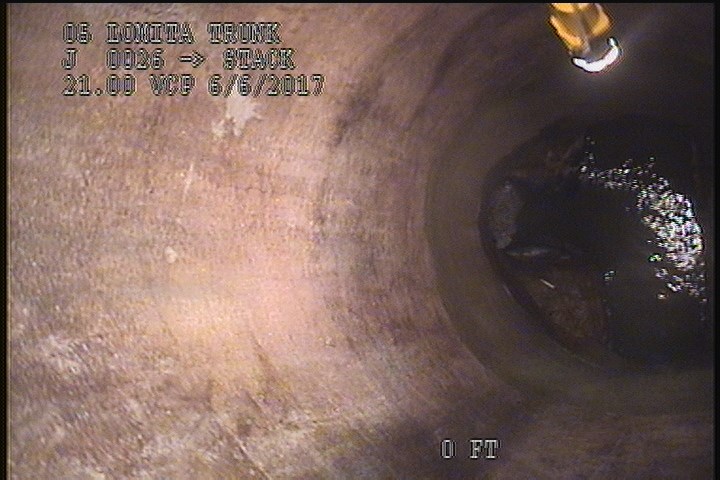

  • General Observation - NORTH SIDE STACK & CONE

    4 ft. - General Observation - NORTH SIDE STACK & CONE

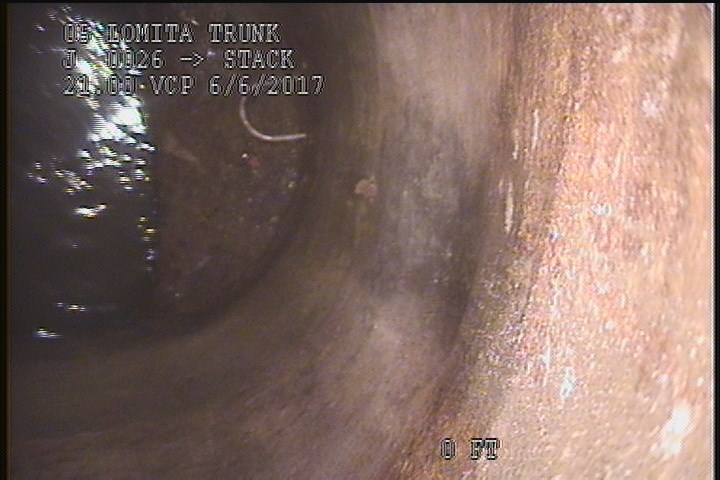

  • General Observation - SOUTH SIDE STACK & CONE

    5 ft. - General Observation - SOUTH SIDE STACK & CONE

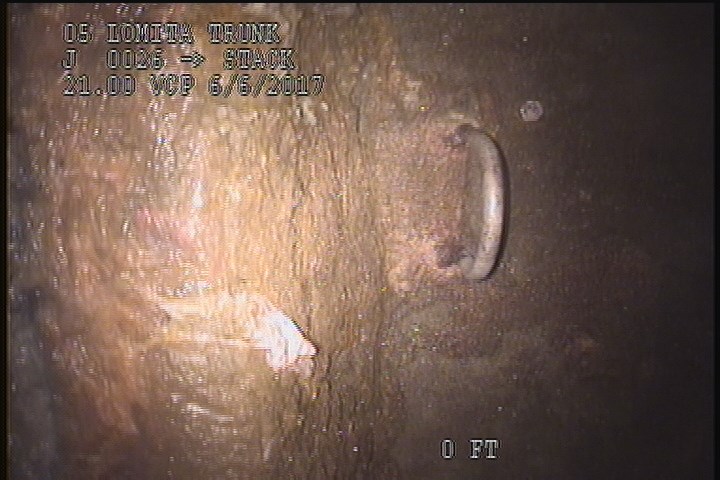

  • General Observation - SHELF & PULL RING NORTH SIDE

    6 ft. - General Observation - SHELF & PULL RING NORTH SIDE

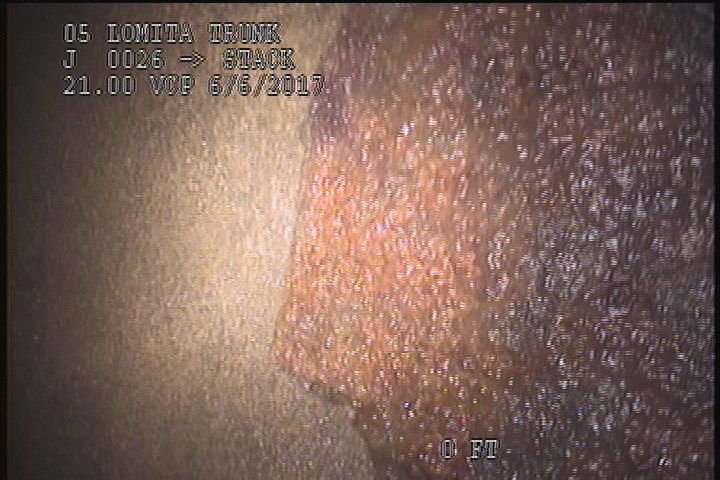

  • General Observation - BOTTOM OF SHAFT

    7 ft. - General Observation - BOTTOM OF SHAFT

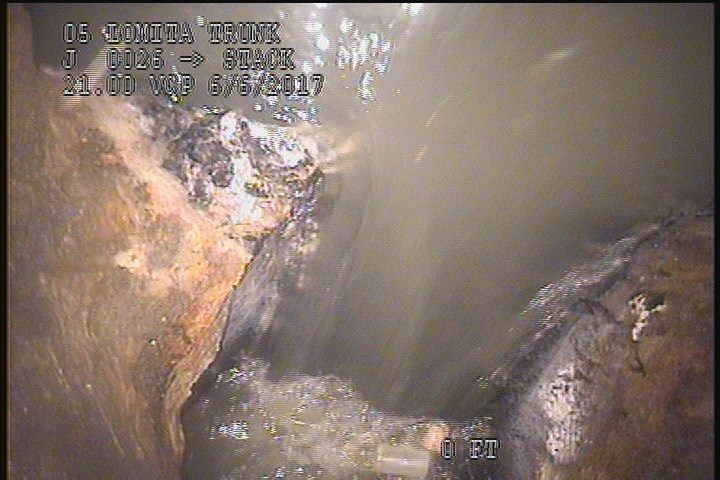

  • General Observation - MH CONN NO STOPLG GROOVES

    8 ft. - General Observation - MH CONN NO STOPLG GROOVES

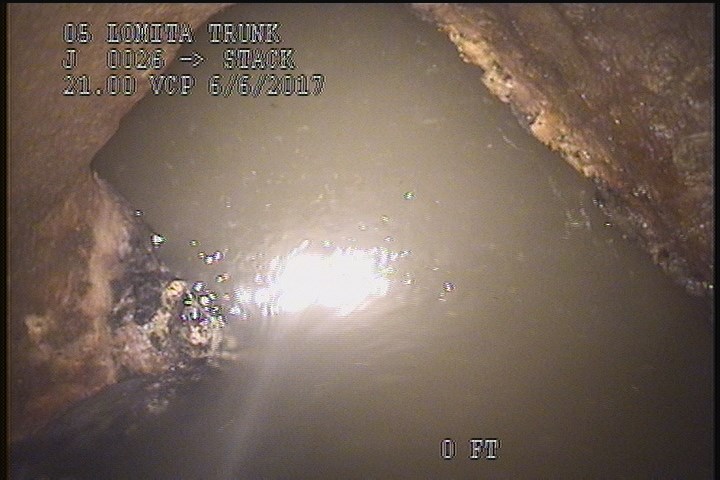

  • General Observation - DOWNSTREAM PIPE NO STOPLOG GROOVES

    9 ft. - General Observation - DOWNSTREAM PIPE NO STOPLOG GROOVES

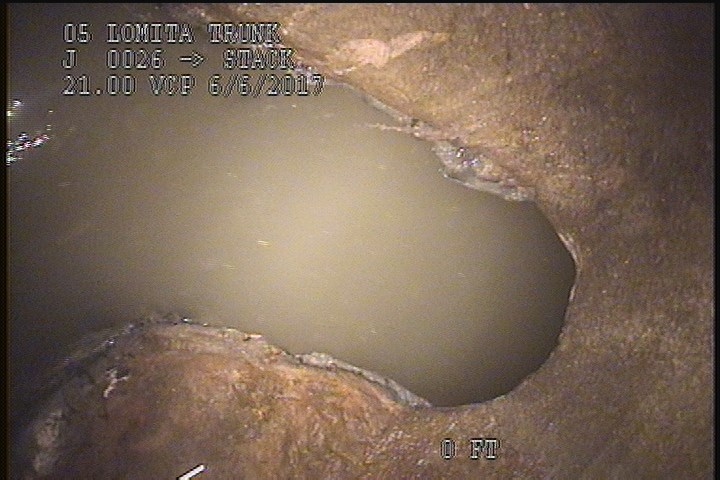

  • General Observation - UPSTREAM PIPE NO STOPLOG GROOVES

    10 ft. - General Observation - UPSTREAM PIPE NO STOPLOG GROOVES

All inspections of P06930Work order 0644585

Observations (11)

DistanceCodeObservation
6MGOSHELF & PULL RING NORTH SIDE
8MGOMH CONN NO STOPLG GROOVES
4MGONORTH SIDE STACK & CONE
10MGOUPSTREAM PIPE NO STOPLOG GROOVES
3MGOGRADE RING & RISER SOUTH
1MGOFRAME
0AMH2:20AM
7MGOBOTTOM OF SHAFT
9MGODOWNSTREAM PIPE NO STOPLOG GROOVES
2MGOGRADE RING & RISER NORTH
5MGOSOUTH SIDE STACK & CONE

Properties (3)

additional_info
TOPSIDE MANHOLE INSPECTION ONLY
customer
LACSD
datetime
2017-06-06T01:53:40-07:00
