Wastewater/Activity/PacpInspection/1.0Jun 7, 2017, 10:17 AM
05 1104_05 1103_672017_035030.mp4
- Date
- 06/07/2017
- W/O
- 0635412
- Weather
- Dry
- Operator/Surveyor
- MARTIN,MANANES,REVELES
- Sewer ID
- Z00488
- PipeID
- P06339
- Time
- 3:17 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0553
- Sewer Name
- 05 MONETA EXTENSION TRUNK SECTION 1
- City
- CHENSHAW
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20170602MDM_MONETA_EXTENSION_TRUNK_SECTION_1
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 05 1103
- Downstream MH
- 05 1104
- Dir. of Survey
- Upstream
- Length Surveyed
- 106 ft.
- Total Length
- 106 ft.
- Structural Index
- 2
- Structural Quick
- 2300
- Structural Rating
- 6
- O&M Index
- 4
- O&M Quick
- 4131
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)

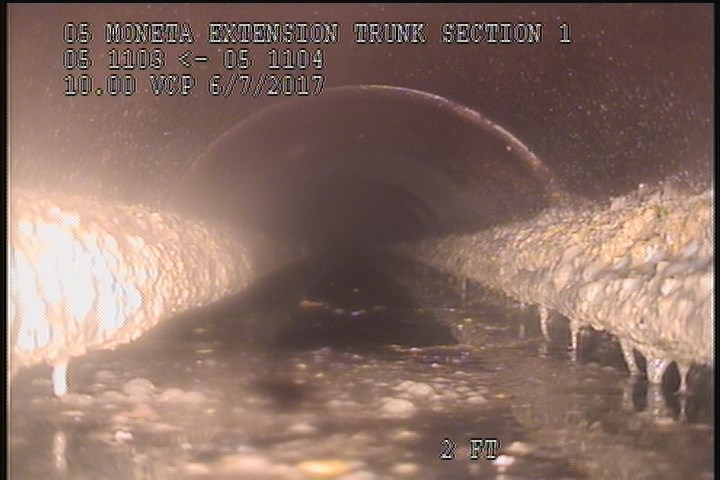

2 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

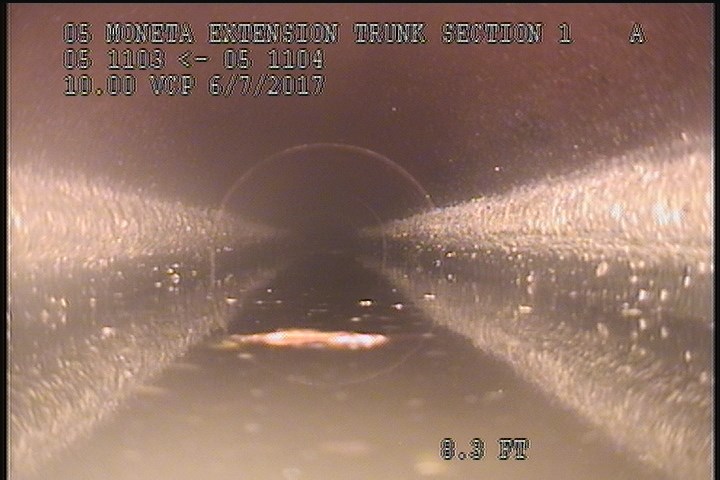

8.3 ft. - General Observation - 10" VCP

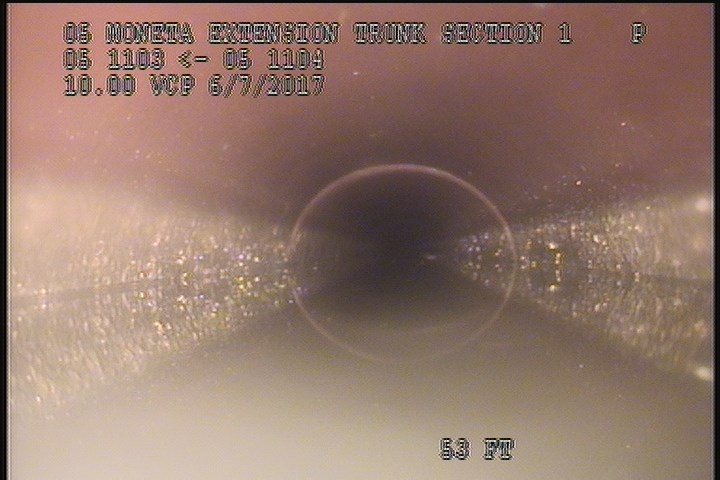

53 ft. - Water Level, 40 %of cross sectional area

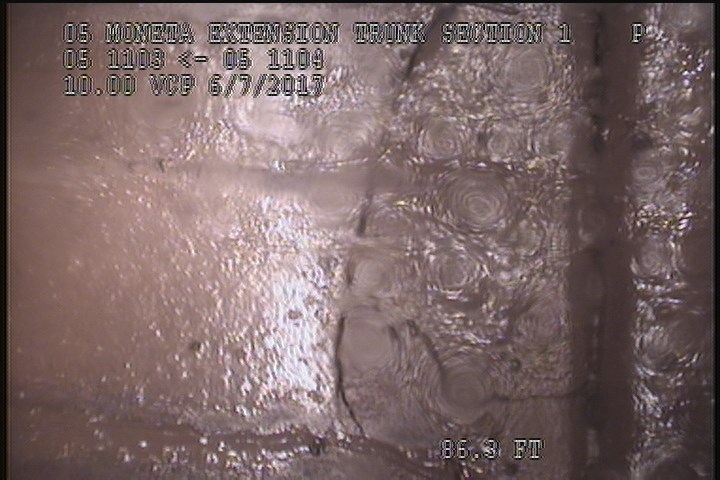

106 ft. - Upstream Manhole, Survey Ends(COMPLETED BY REVERSE INSPECTION) - 4:20AM(COMPLETED BY REVERSE INSPECTION)
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | STANDING WATER |
| 0 | MWM | — |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 86.3 | FC | SLIGHT |
| 53 | MGO | CAMERA PARTIAL UNDER WATER START |
| 53 | FC | HAIRLINE |
| 8.3 | MGO | 10" VCP |
| 0 | AMH | 3:45AM |
| 18.3 | DAGS | — |
| 60.8 | FC | H |
| 53 | MWL | — |
| 106 | AMH | 4:20AM(COMPLETED BY REVERSE INSPECTION) |
| 105 | MGO | CAMERA PARTIAL UNDER WATER FINISH |
| 2 | DAGS | — |
Properties (4)
- custom_field_three
- SLIGHT FRACTURE
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-06-07T03:17:17-07:00
