Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 6, 2017, 10:48 AM

  • 05 2514_05 1106_662017_041420.mp4

Date
06/06/2017
W/O
0635412
Weather
Dry
Operator/Surveyor
MARTIN,MANANES,REVELES
Sewer ID
Z00488
PipeID
P06342
Time
3:48 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0552
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
CHENSHAW
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
14
Purpose
Routine Assessment
Project
20170602MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
05 1106
Downstream MH
05 2514
Dir. of Survey
Upstream
Length Surveyed
334 ft.
Total Length
334 ft.
Structural Index
2
Structural Quick
3329
Structural Rating
27
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole 05 1106 to 05 2514
MH: 05 1106MH: 05 2514upstream0 ft. AMH - Upstream Manhole, Survey Ends - 5:00AM STOPLOG IN PLACE4.8 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SL29.2 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H45.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H53.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL126.1 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active135.7 ft. FC - Fracture Circumferential, from 06 to 09 o'clock, within 8 inches of joint: YES - SL144.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6", 6" - Capped147.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H147.4 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open227.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H228.5 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SLUDGE228.5 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open264.3 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL268.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped279.2 ft. MGO - General Observation - 10" VCP295.7 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE303.8 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL320 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL328 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT334 ft. MWM - Water Mark, 20 %of cross sectional area334 ft. AMH - Downstream Manhole, Survey Begins - 4:15AM334 ft. MWL - Water Level, 5 %of cross sectional area - NO FLOW

Observation photos (2)

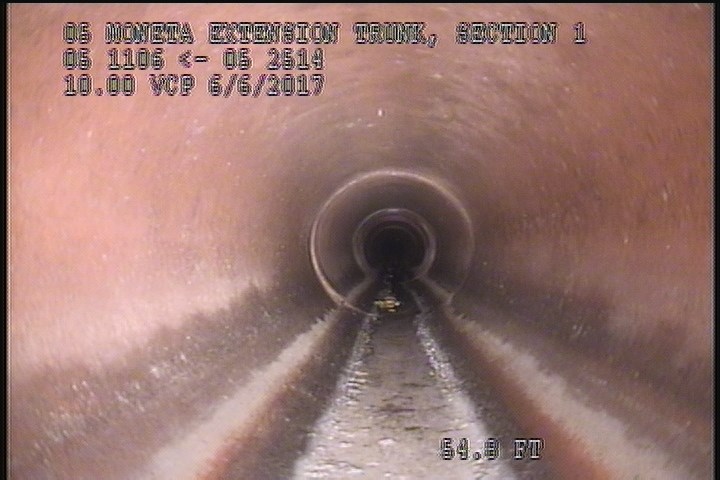

  • General Observation - 10" VCP

    54.8 ft. - General Observation - 10" VCP

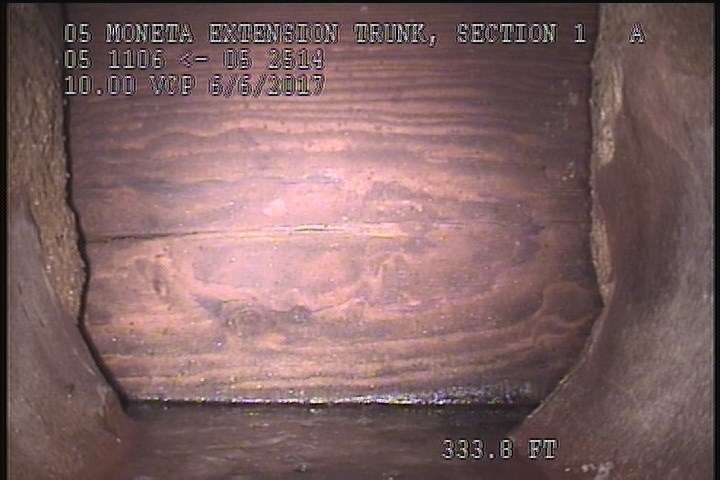

  • Upstream Manhole, Survey Ends - 5:00AM STOPLOG IN PLACE

    334 ft. - Upstream Manhole, Survey Ends - 5:00AM STOPLOG IN PLACE

All inspections of P06342Work order 0635412

Observations (23)

DistanceCodeObservation
6FCSLIGHT
14FCSL
54.8MGO10" VCP
0MWM—
105.5DSZSLUDGE
106.1FLH
30.2FCSL
0AMH4:15AM
207.9TBActive
186.6FLH
38.3FCHAIRLINE
69.7FCSL
288.5FLH
198.3FCSL
105.5TBOpen
280.2FCSL
186.6TBOpen
329.2FCSL
189.6TFCCapped
334AMH5:00AM STOPLOG IN PLACE
0MWLNO FLOW
65.2TFCCapped
304.8FCH

Properties (4)

custom_field_three
FEW SLIGHT FRACTURES
custom_field_two
4
customer
LACSD
datetime
2017-06-06T03:48:32-07:00
