Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 6, 2017, 10:47 AM

  • 05 1107_05 2514_662017_035452.mp4

Date
06/06/2017
W/O
0635412
Weather
Dry
Operator/Surveyor
MARTIN,MANANES,REVELES
Sewer ID
Z00488
PipeID
P20917
Time
3:47 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0552
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
CHENSHAW
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
14
Purpose
Routine Assessment
Project
20170602MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
05 1107
Downstream MH
05 2514
Dir. of Survey
Downstream
Length Surveyed
4.4 ft.
Total Length
4.4 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 05 1107 to 05 2514
MH: 05 1107MH: 05 2514downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 3:50AM2.7 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SLIGHT2.7 ft. MGO - General Observation - 10" VCP2.7 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active OUGOING LINE4.4 ft. AMH - Downstream Manhole, Survey Ends - 4:00AM STOPLOG IN PLACE DOWNSTREAM

Observation photos (2)

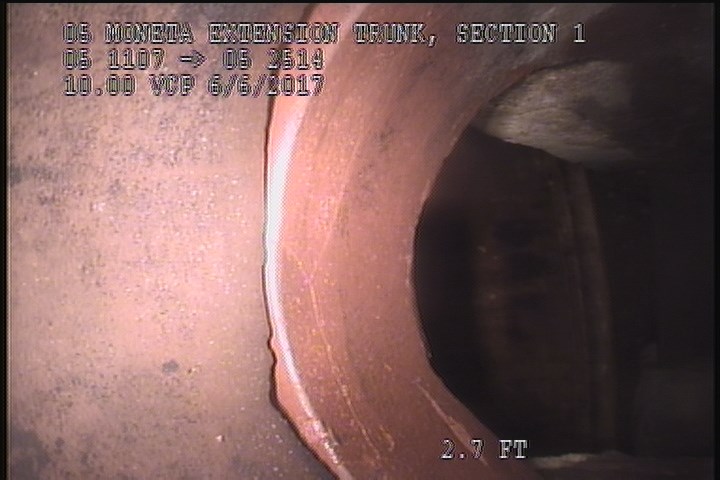

  • General Observation - 10" VCP

    2.7 ft. - General Observation - 10" VCP

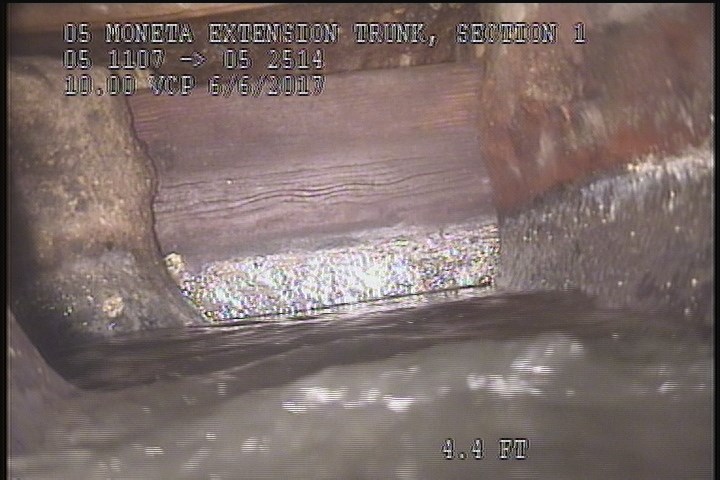

  • Downstream Manhole, Survey Ends - 4:00AM STOPLOG IN PLACE DOWNSTREAM

    4.4 ft. - Downstream Manhole, Survey Ends - 4:00AM STOPLOG IN PLACE DOWNSTREAM

All inspections of P20917Work order 0635412

Observations (10)

DistanceCodeObservation
2.7FCSLIGHT
2.7MGO10" VCP
0MWM—
2.7FCHAIRLINE
0MGOConn. @ Mh, 3 O' Clock. Active
4MGOConn. @ Mh, 9 O' Clock. Active OUGOING LINE
4.4AMH4:00AM STOPLOG IN PLACE DOWNSTREAM
0MWL—
0MGOConn. @ Mh, 9 O' Clock. Active
0AMH3:50AM

Properties (4)

custom_field_three
SLIGHT FRACTURE
custom_field_two
4
customer
LACSD
datetime
2017-06-06T03:47:06-07:00
