Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 2, 2017, 07:33 AM

  • 08 0150_08 0149_622017_013118.mp4

Date
06/02/2017
W/O
0635421
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00006
PipeID
P00206
Time
12:33 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0547
Sewer Name
08 FIGUEROA STREET TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
18
Purpose
Routine Assessment
Project
20170602MDM_FIGUEROA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
11.100000381469728 in.
Upstream MH
08 0150
Downstream MH
08 0149
Dir. of Survey
Downstream
Length Surveyed
300.2 ft.
Total Length
300.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 08 0150 to 08 0149
MH: 08 0150MH: 08 0149downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 1:30AM0 ft. MWM - Water Mark, 40 %of cross sectional area8 ft. MGP - General Photograph - 11.1" VCP + PEP LINER51.4 ft. MWM - Water Mark, 70 %of cross sectional area195.2 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open195.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: NO261.8 ft. MWM - Water Mark, 30 %of cross sectional area261.8 ft. MWL - Water Level, 10 %of cross sectional area300.2 ft. AMH - Downstream Manhole, Survey Ends - 1:55AM

Observation photos (2)

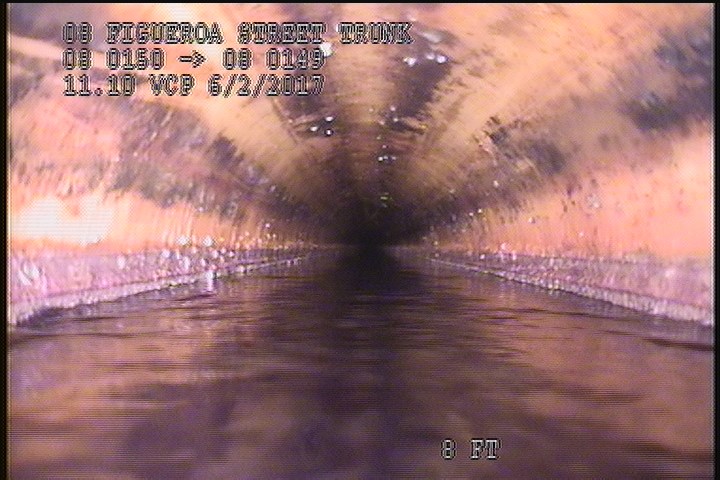

  • General Photograph - 11.1" VCP + PEP LINER

    8 ft. - General Photograph - 11.1" VCP + PEP LINER

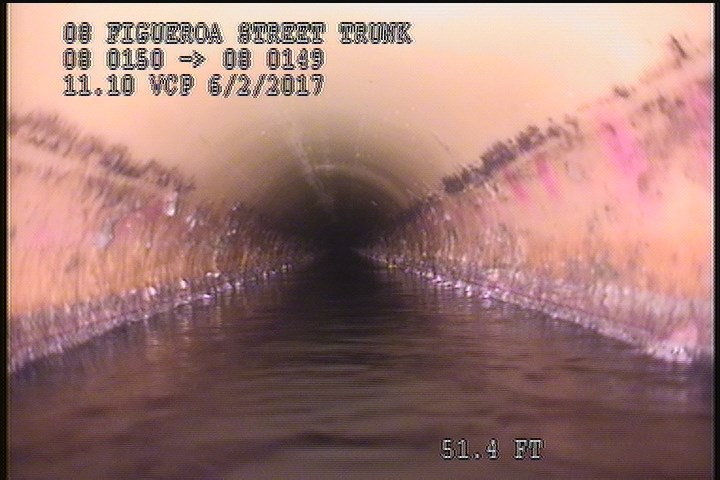

  • Water Mark, 70 %of cross sectional area

    51.4 ft. - Water Mark, 70 %of cross sectional area

All inspections of P00206Work order 0635421

Observations (12)

DistanceCodeObservation
261.8MWM—
0MWL—
261.8MWL—
51.4MWM—
0MGOConn. @ Mh, 9 O' Clock. Active
8MGP11.1" VCP + PEP LINER
0MGOConn. @ Mh, 3 O' Clock. Active
0AMH1:30AM
195.2TBOpen
195.2DAGS—
300.2AMH1:55AM
0MWM—

Properties (4)

custom_field_three
LINER GOOD COND.
custom_field_two
4
customer
LACSD
datetime
2017-06-02T00:33:20-07:00
