Wastewater/Activity/PacpInspection/1.0Feb 5, 2016, 07:21 AM
B 0322_B 0321_20160204_232119.mp4
- Date
- 02/04/2016
- W/O
- 552357
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00089
- PipeID
- P08847
- Time
- 11:21 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3136
- Sewer Name
- B JOINT OUTFALL B - UNIT 4A
- City
- ROSEMEAD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_552357_TV15106_FEB2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- B 0322
- Downstream MH
- B 0321
- Dir. of Survey
- Downstream
- Length Surveyed
- 147.6 ft.
- Total Length
- 147.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2E11
- O&M Rating
- 57
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 57
Observation photos (1)

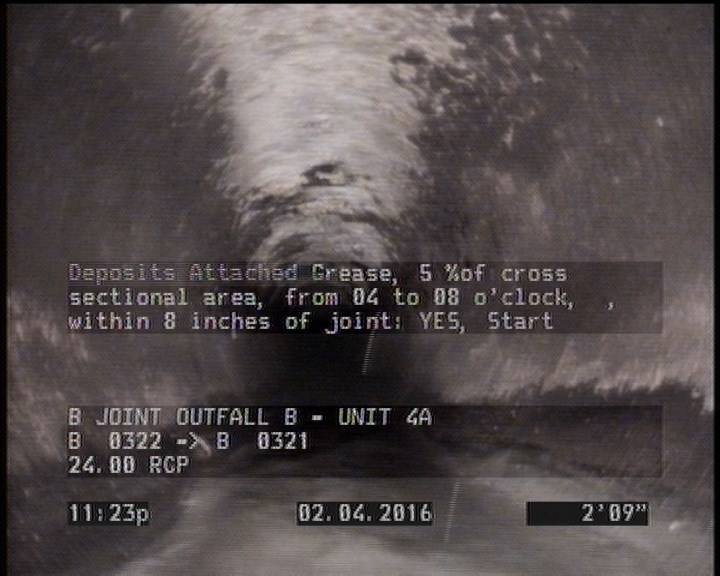

2.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 147.2 | MGO | LATERAL AT MH 9 OCLOCK |
| 143.7 | DAGS | — |
| 0 | MWM | — |
| 147.6 | MGO | ROACHES IN MH |
| 2 | MGO | MAGNESIUM H.O. START |
| 147.6 | AMH | B 0321 |
| 12.9 | VC | — |
| 2.8 | DAGS | — |
| 0 | AMH | B 0322 |
Properties (5)
- additional_info
- SC225523
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-04T23:21:46-08:00
- sewer_category
- GRAVITY
