Wastewater/Activity/PacpInspection/1.0Feb 5, 2016, 12:18 PM
B 0312_B 0311_20160205_041801.mp4
- Date
- 02/05/2016
- W/O
- 552356
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00088
- PipeID
- P20103
- Time
- 4:18 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3137
- Sewer Name
- B JOINT OUTFALL B - UNIT 3B
- City
- ROSEMEAD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_552356_TV15105_FEB2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- B 0312
- Downstream MH
- B 0311
- Dir. of Survey
- Downstream
- Length Surveyed
- 400.4 ft.
- Total Length
- 400.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 156
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 156
Observation photos (1)

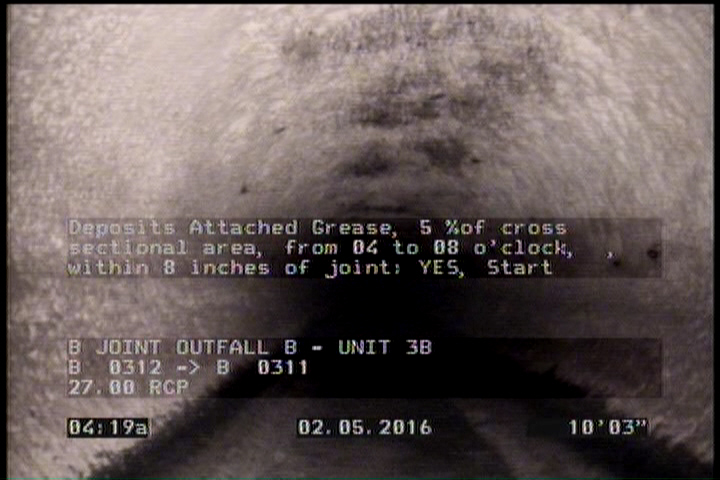

10.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 10.1 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | B 0312 |
| 0 | MWM | — |
| 400.4 | AMH | B 0311 |
| 399.4 | DAGS | — |
| 2 | MGO | MAGNESIUM H.O. START |
Properties (5)
- additional_info
- SC225524
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-05T04:18:00-08:00
- sewer_category
- GRAVITY
