Wastewater/Activity/PacpInspection/1.0Feb 12, 2016, 07:15 AM
B 0304_B 0233_20160212_002141.mp4
- Date
- 02/11/2016
- W/O
- 552354
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00086
- PipeID
- P08814
- Time
- 11:15 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3144
- Sewer Name
- B JOINT OUTFALL B - UNIT 3A
- City
- ROSEMEAD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_552354_TV15103_FEB2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Upstream MH
- B 0304
- Downstream MH
- B 0233
- Dir. of Survey
- Downstream
- Length Surveyed
- 33.7 ft.
- Total Length
- 33.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 4126
- O&M Rating
- 16
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (1)

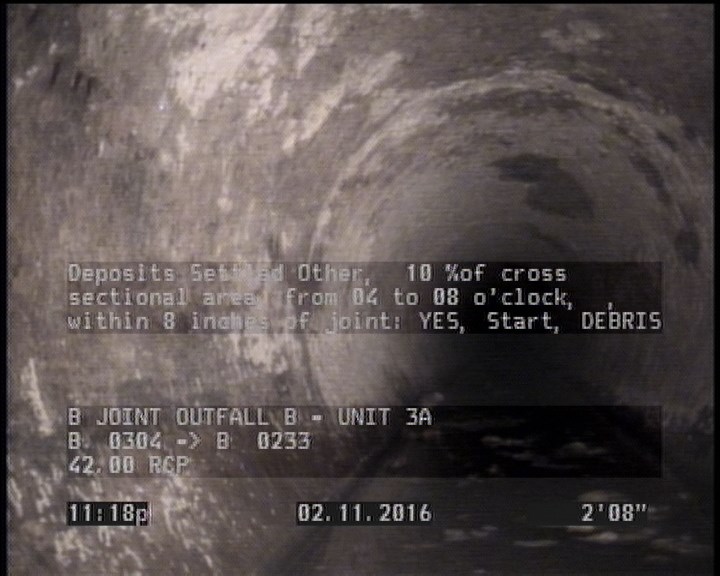

2.7 ft. - Deposits Settled Other, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - DEBRIS
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 0304 |
| 33.7 | MSA | DUE TO SLUDGE |
| 2.7 | DSZ | DEBRIS |
| 2.6 | MGO | MAGNESIUM H.O. START |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 33.7 | OBZ | SLUDGE |
| 0 | MWL | — |
| 33.7 | MGO | DUE TO SLUDGE |
| 0 | MWM | — |
| 33.7 | DSZ | DEBRIS |
Properties (5)
- additional_info
- SC225531
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-02-11T23:15:00-08:00
- sewer_category
- GRAVITY
