Wastewater/Activity/PacpInspection/1.0Feb 24, 2016, 12:13 PM
17 0001_B 0478_24022016_041355.mp4
- Date
- 02/24/2016
- W/O
- 552349
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00668
- PipeID
- P13726
- Time
- 4:13 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3266
- Sewer Name
- 17 DISTRICT #17 MAIN TRUNK
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_552349_TV17005_FEB2016
- Material
- NRCP
- Shape
- Other
- Height
- 15 in.
- Upstream MH
- 17 0001
- Downstream MH
- B 0478
- Dir. of Survey
- Downstream
- Length Surveyed
- 36.8 ft.
- Total Length
- 36.8 ft.
- Structural Index
- 3
- Structural Quick
- 3500
- Structural Rating
- 15
- O&M Index
- 2
- O&M Quick
- 4127
- O&M Rating
- 18
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 33
Observation photos (3)

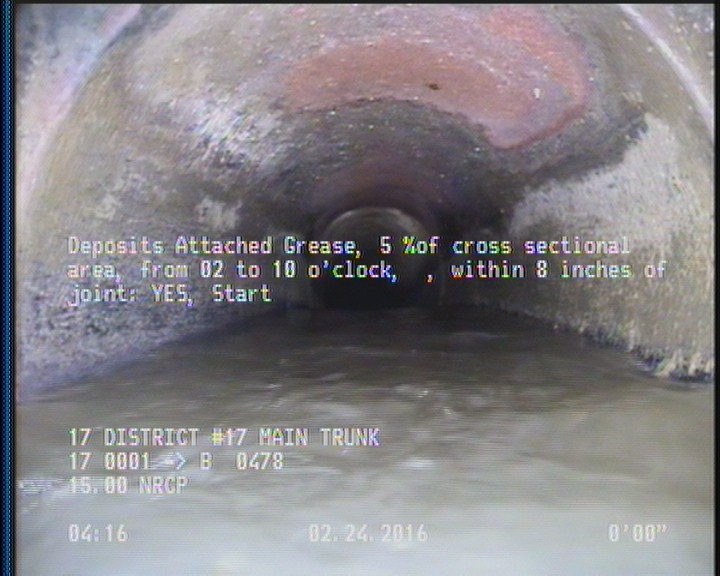

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

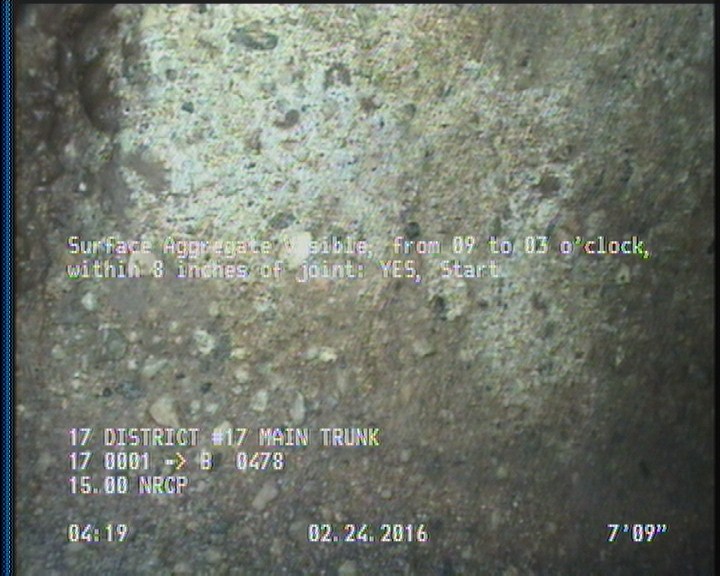

7.8 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
7.8 ft. - Material Change, Concrete pipe (non-reinfored)
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 36.8 | MGO | CAPPED CONNECTION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 0 | AMH | 17 0001 |
| 2 | MMC | — |
| 36.8 | AMH | B 0478 |
| 35.1 | DAGS | — |
| 7.8 | SAV | — |
| 0 | MWM | — |
| 35.1 | SAV | — |
| 36.8 | MGO | CONNECTION AT MH 4 O'CLOCK |
| 7.8 | MMC | — |
Properties (5)
- additional_info
- SC225489
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-24T04:13:22-08:00
- sewer_category
- GRAVITY
