Wastewater/Activity/PacpInspection/1.0Feb 16, 2016, 12:42 PM
17 0063_17 0062_16022016_044313.mp4
- Date
- 02/16/2016
- W/O
- 552349
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00668
- PipeID
- P13782
- Time
- 4:42 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3257
- Sewer Name
- 17 DISTRICT #17 MAIN TRUNK
- City
- ALTADENA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 17
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_552349_TV17005_FEB2016
- Material
- NRCP
- Shape
- Other
- Height
- 18 in.
- Upstream MH
- 17 0063
- Downstream MH
- 17 0062
- Dir. of Survey
- Downstream
- Length Surveyed
- 399.3 ft.
- Total Length
- 399.3 ft.
- Structural Index
- 3
- Structural Quick
- 3O00
- Structural Rating
- 237
- O&M Index
- 2
- O&M Quick
- 4131
- O&M Rating
- 167
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 404
Observation photos (5)

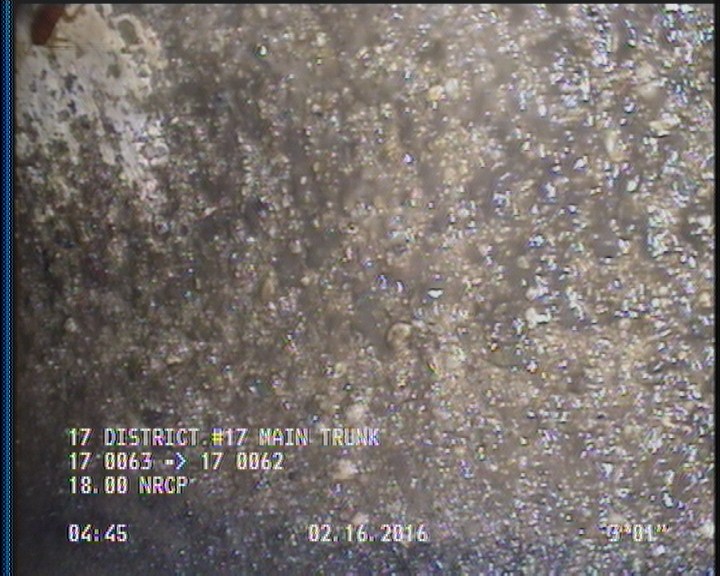

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

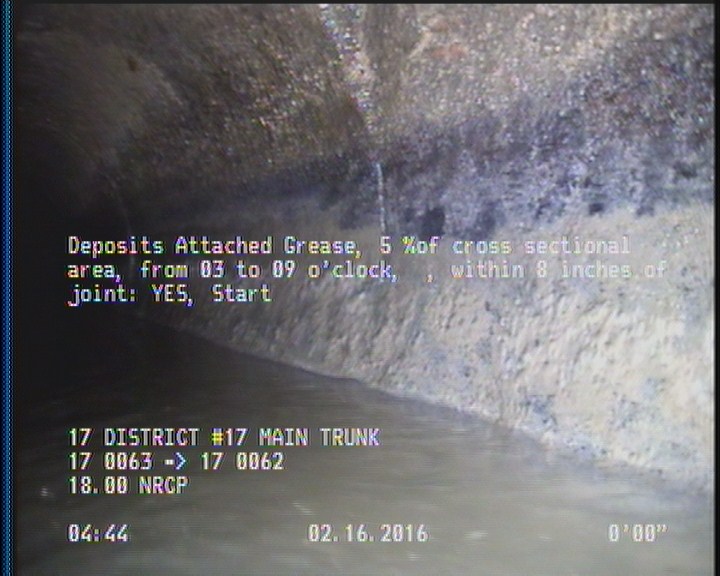

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

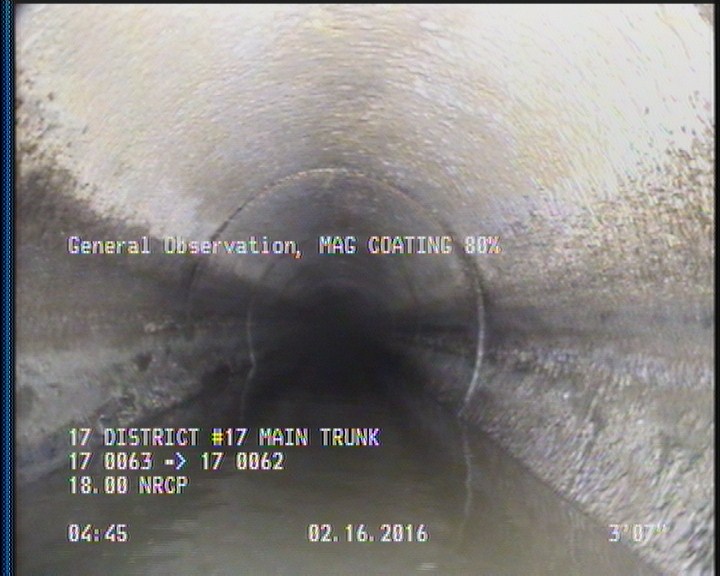

3.5 ft. - General Observation - MAG COATING 80%

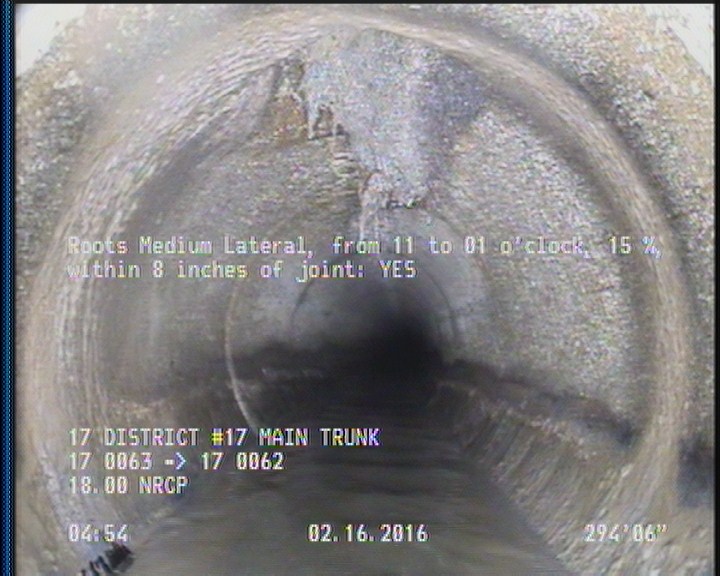

294.5 ft. - Roots Medium Lateral, from 11 to 01 o'clock, 15 %, within 8 inches of joint: YES

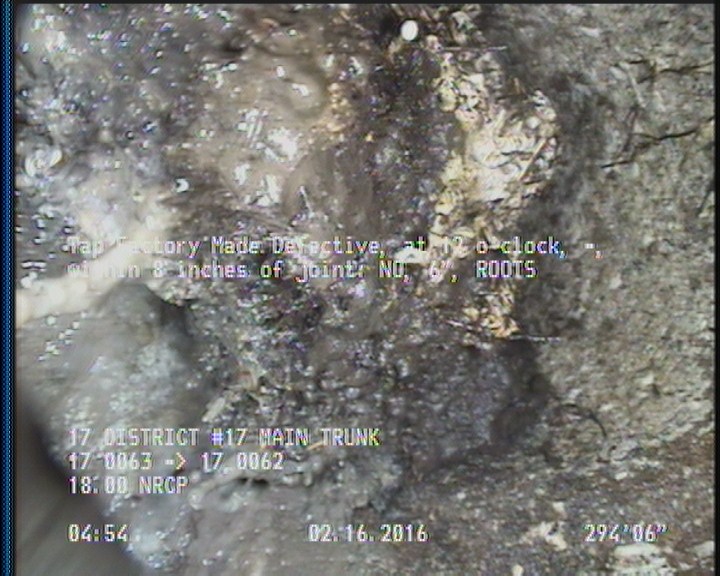

294.5 ft. - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | SAV | — |
| 399.3 | AMH | 17 0062 |
| 3.5 | MGO | MAG COATING 80% |
| 397.6 | SAV | — |
| 0 | AMH | 17 0063 |
| 2 | DAGS | — |
| 294.5 | RML | — |
| 40.4 | TFC | — |
| 399.3 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 397.6 | DAGS | — |
| 199.7 | TFC | — |
| 294.5 | TFD | ROOTS |
Properties (5)
- additional_info
- SC225479
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-16T04:42:47-08:00
- sewer_category
- GRAVITY
