Wastewater/Activity/PacpInspection/1.0Aug 22, 2016, 11:05 AM
14 1139_14 1138_08222016_040536.mp4
- Date
- 08/22/2016
- W/O
- 585703
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01214
- PipeID
- P26473
- Time
- 4:05 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3641
- Sewer Name
- 14 55TH STREET WEST RELIEF TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_585703_TV14072_AUG2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 1139
- Downstream MH
- 14 1138
- Dir. of Survey
- Downstream
- Length Surveyed
- 361.4 ft.
- Total Length
- 361.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 142
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 142
Observation photos (1)

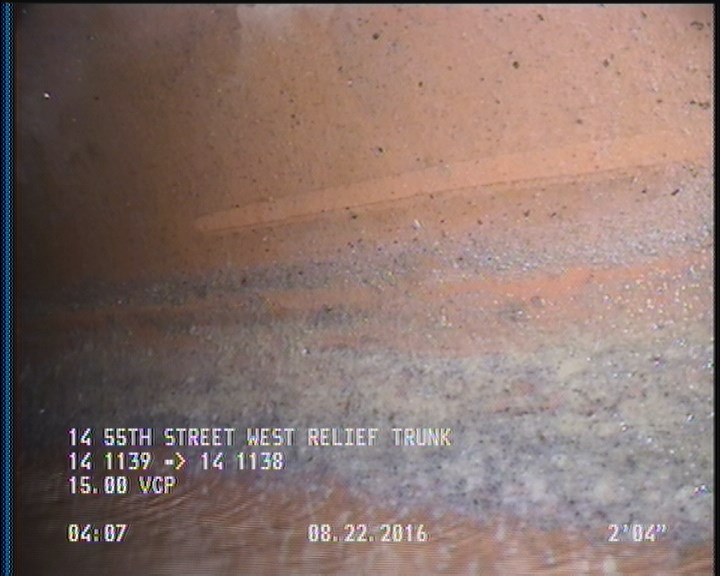

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 14 1139 |
| 2 | DAGS | — |
| 358.6 | DAGS | — |
| 361.4 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 361.4 | AMH | 14 1138 |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC306078
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-22T04:05:16-07:00
- sewer_category
- Gravity
- year_laid
- 41262
