Wastewater/Activity/PacpInspection/1.0Aug 23, 2016, 05:58 AM
14 1134_14 1133_08222016_225818.mp4
- Date
- 08/22/2016
- W/O
- 585703
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01214
- PipeID
- P26468
- Time
- 10:58 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3642
- Sewer Name
- 14 55TH STREET WEST RELIEF TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_585703_TV14072_AUG2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 1134
- Downstream MH
- 14 1133
- Dir. of Survey
- Downstream
- Length Surveyed
- 400.5 ft.
- Total Length
- 400.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2_00
- O&M Rating
- 316
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 316
Observation photos (2)

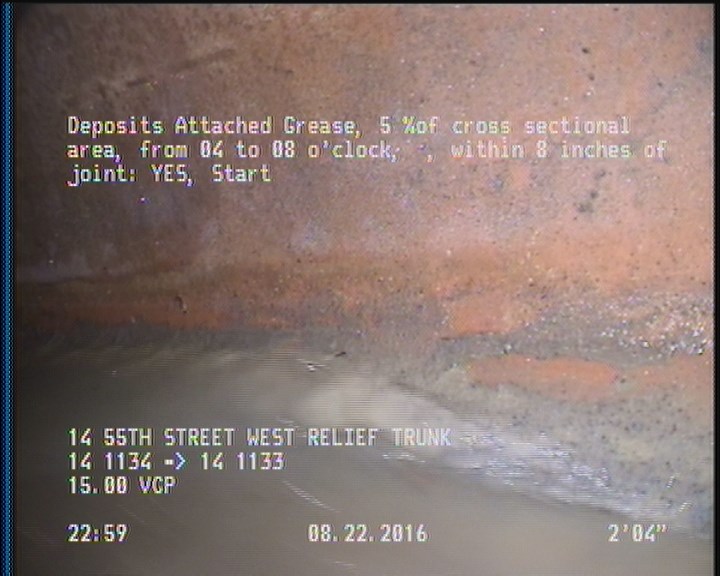

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

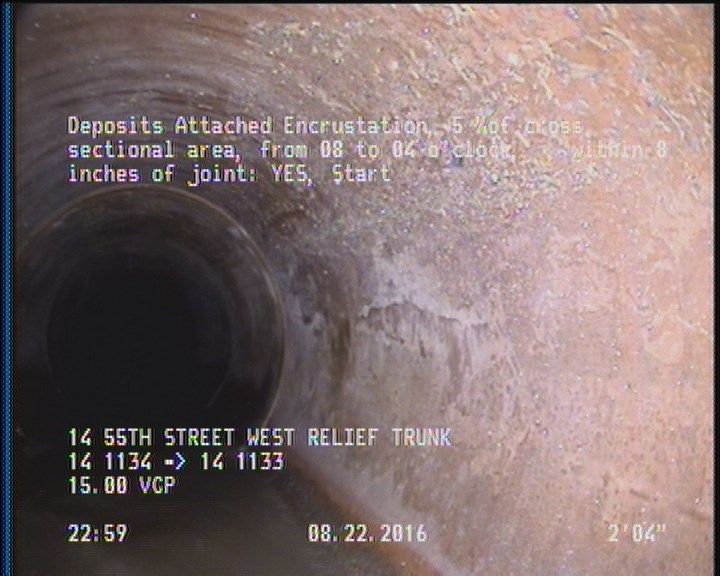

2.4 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 14 1134 |
| 400.5 | AMH | 14 1133 |
| 0 | MWL | — |
| 398.9 | DAGS | — |
| 2.4 | DAE | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 400.5 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 398.9 | DAE | — |
Properties (6)
- additional_info
- SC306079
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-22T22:58:00-07:00
- sewer_category
- Gravity
- year_laid
- 41262
