Wastewater/Activity/PacpInspection/1.0Sep 14, 2016, 10:45 AM
14 0952_14 0951 _09142016_034722.mp4
- Date
- 09/14/2016
- W/O
- 585470
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00957
- PipeID
- P23168
- Time
- 3:45 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3757
- Sewer Name
- 14 AVENUE "H" WEST TRUNK
- City
- LANCASTER
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_585470_TV14044_AUG2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- 14 0952
- Downstream MH
- 14 0951
- Dir. of Survey
- Downstream
- Length Surveyed
- 432.4 ft.
- Total Length
- 432.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 332P
- O&M Rating
- 181
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 181
Observation photos (3)

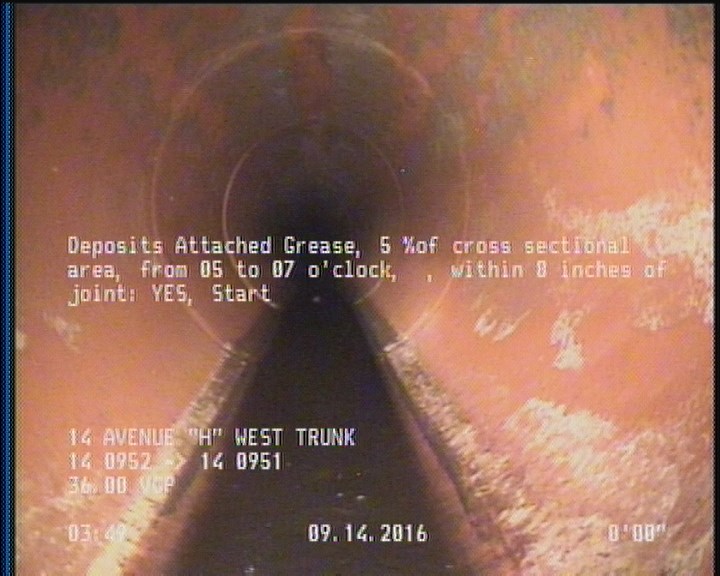

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

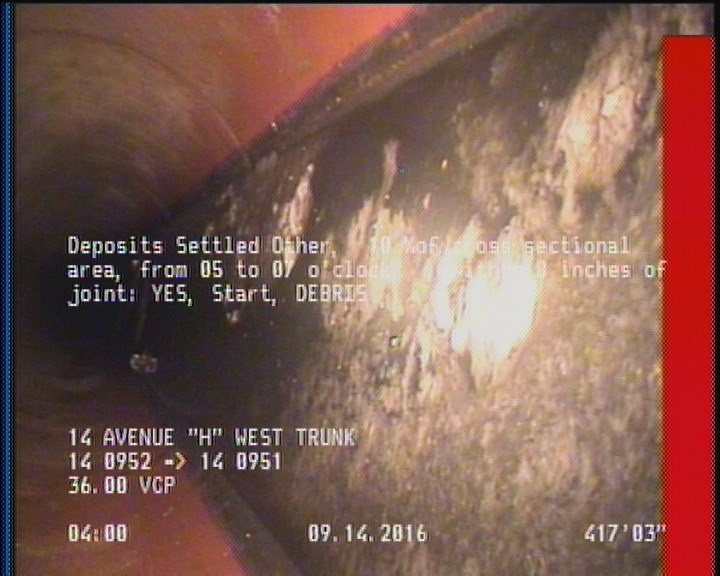

417.3 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

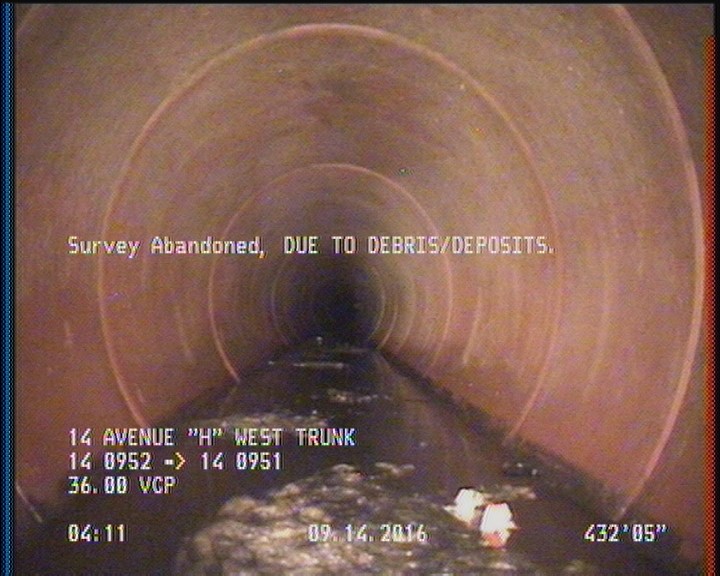

432.4 ft. - Survey Abandoned - DUE TO DEBRIS/DEPOSITS.
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 432.4 | MSA | DUE TO DEBRIS/DEPOSITS. |
| 432.4 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 417.3 | DSZ | DEBRIS |
| 0 | MGO | CAPPED CONNECTION AT MH 8 O'CLOCK |
| 432.4 | DSZ | DEBRIS |
| 0 | AMH | 14 0952 |
Properties (5)
- additional_info
- SC306098
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-09-14T03:45:37-07:00
- sewer_category
- Gravity
