Wastewater/Activity/PacpInspection/1.0Mar 3, 2016, 12:37 PM
14 0535_14 0534_03032016_043743.mp4
- Date
- 03/03/2016
- W/O
- 552346
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00588
- PipeID
- P18624
- Time
- 4:37 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3274
- Sewer Name
- 14 35TH STREET WEST TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_552346_TV14042_FEB2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 14 0534
- Downstream MH
- 14 0535
- Dir. of Survey
- Upstream
- Length Surveyed
- 495.6 ft.
- Total Length
- 495.6 ft.
- Structural Index
- 3
- Structural Quick
- 3S00
- Structural Rating
- 294
- O&M Index
- 2
- O&M Quick
- 2S00
- O&M Rating
- 196
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 490
Observation photos (1)

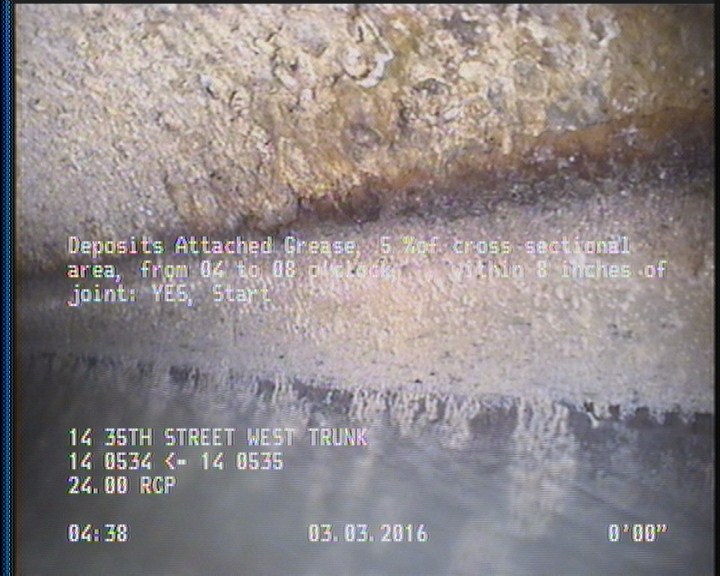

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 495.6 | AMH | 14 0535 |
| 0 | AMH | 14 0534 |
| 495.6 | MGO | CAPPED CONNECTION AT MH 3 O'CLOCK |
| 2 | DAGS | — |
| 2 | MGO | MAG COATING 90% |
| 0 | MWL | — |
| 0 | MWM | — |
| 493.9 | DAGS | — |
| 495.6 | MGO | CAPPED CONNECTION AT MH 9 O'CLOCK |
Properties (5)
- additional_info
- SC225498
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-03-03T04:37:37-08:00
- sewer_category
- GRAVITY
