Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 19, 2016, 11:15 AM

  • B 0508_B 0507A_20160219_031325.mp4

Date
02/19/2016
W/O
552342
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00099
PipeID
P21603
Time
3:15 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3153
Sewer Name
B JOINT OUTFALL B - UNIT 6E
City
ROSEMEAD, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
27
Purpose
Routine Assessment
Project
WO_552342_TV15111_FEB2016
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Upstream MH
B 0508
Downstream MH
B 0507A
Dir. of Survey
Downstream
Length Surveyed
171.9 ft.
Total Length
171.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412E
O&M Rating
69
Overall Index
2
Overall Quick
—
Overall Rating
69
Pipe schematic from manhole B 0508 to B 0507A
MH: B 0508MH: B 0507Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - B 05080 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. MGO - General Observation - MAGNESIUM H.O. START5.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start153.6 ft. VC - Vermin Cockroach165.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish171.9 ft. AMH - Downstream Manhole, Survey Ends - B 0507A171.9 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK

Observation photos (3)

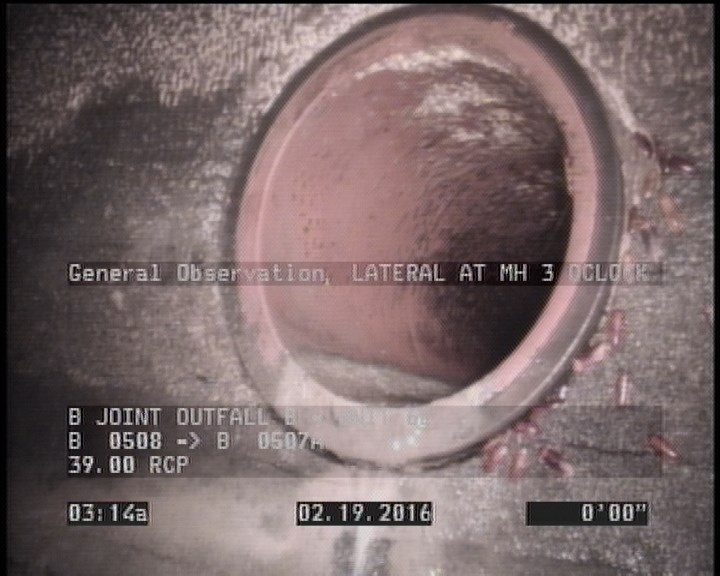

  • General Observation - LATERAL AT MH 3 OCLOCK

    0 ft. - General Observation - LATERAL AT MH 3 OCLOCK

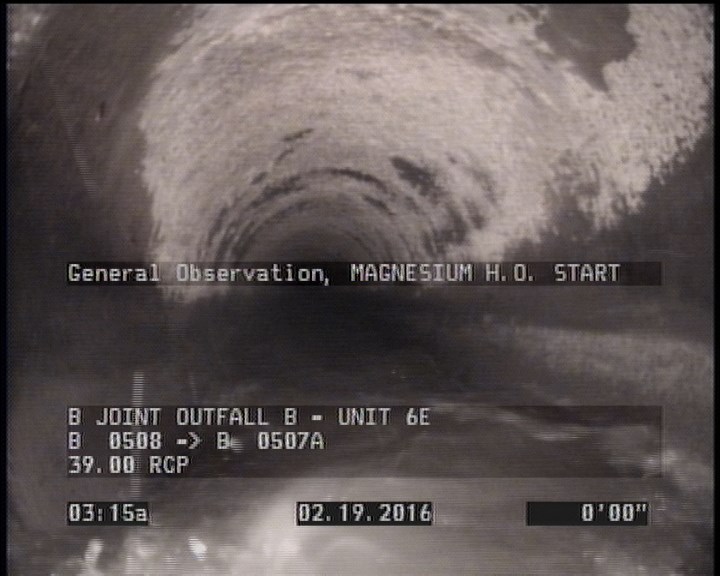

  • General Observation - MAGNESIUM H.O. START

    2 ft. - General Observation - MAGNESIUM H.O. START

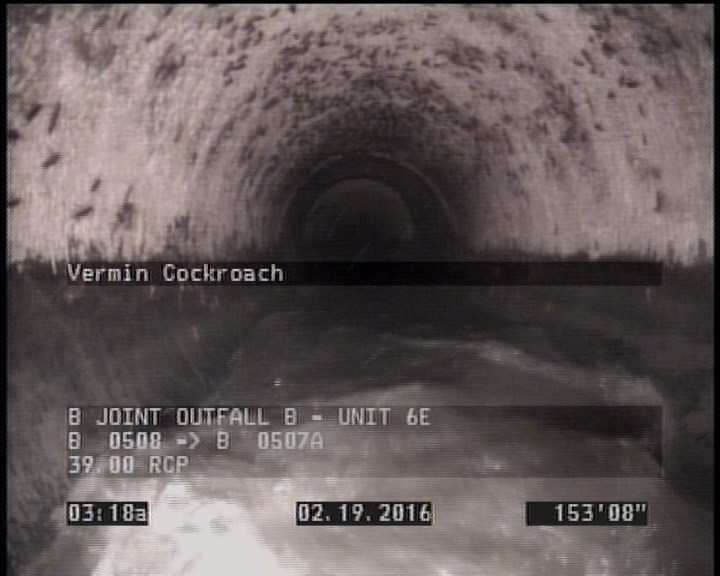

  • Vermin Cockroach

    153.6 ft. - Vermin Cockroach

All inspections of P21603Work order 552342

Observations (10)

DistanceCodeObservation
0AMHB 0508
0MGOLATERAL AT MH 3 OCLOCK
0MWM—
2MGOMAGNESIUM H.O. START
171.9AMHB 0507A
171.9MGOLATERAL AT MH 9 OCLOCK
5.5DAGS—
153.6VC—
0MWL—
165.1DAGS—

Properties (5)

additional_info
SC225540
custom_field_two
4
customer
LACSD
datetime
2016-02-19T03:15:00-08:00
sewer_category
GRAVITY
