Wastewater/Activity/PacpInspection/1.0Feb 19, 2016, 10:42 AM
B 0510_B 0509_20160219_024106.mp4
- Date
- 02/19/2016
- W/O
- 552342
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00099
- PipeID
- P09057
- Time
- 2:42 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3153
- Sewer Name
- B JOINT OUTFALL B - UNIT 6E
- City
- ROSEMEAD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_552342_TV15111_FEB2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Upstream MH
- B 0510
- Downstream MH
- B 0509
- Dir. of Survey
- Downstream
- Length Surveyed
- 370.5 ft.
- Total Length
- 370.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2M11
- O&M Rating
- 145
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 145
Observation photos (3)

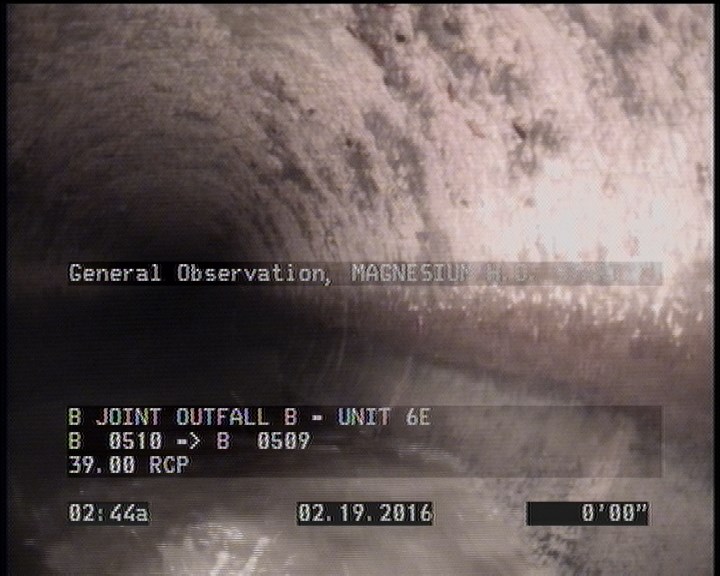

2 ft. - General Observation - MAGNESIUM H.O. START

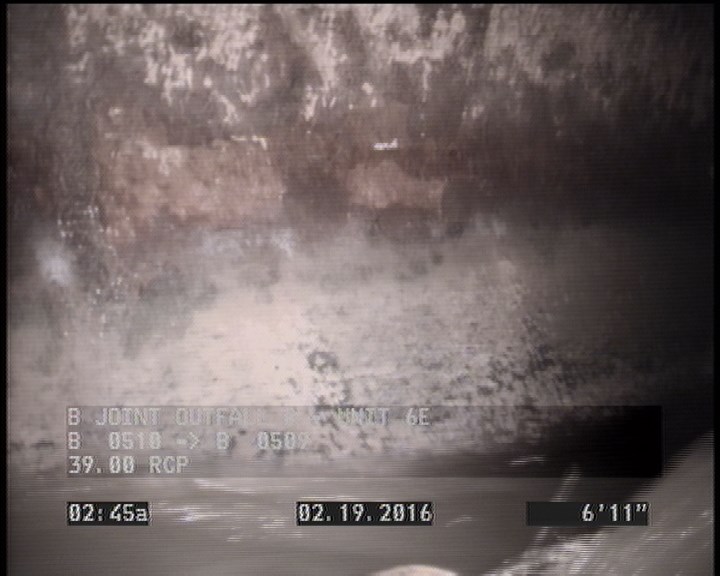

7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

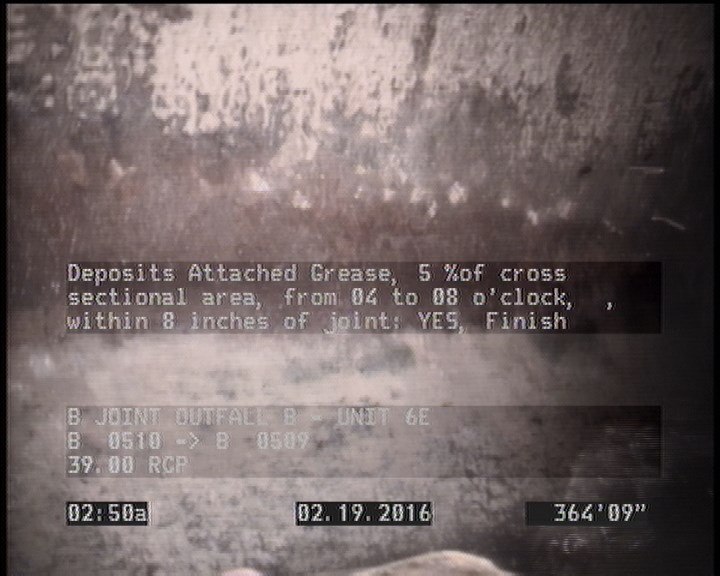

364.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 364.7 | DAGS | — |
| 7 | DAGS | — |
| 0 | MWM | — |
| 370.5 | AMH | B 0509 |
| 0 | AMH | B 0510 |
| 2 | MGO | MAGNESIUM H.O. START |
| 0 | VC | — |
Properties (5)
- additional_info
- SC225540
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-19T02:42:00-08:00
- sewer_category
- GRAVITY
