Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 13, 2016, 10:40 AM

  • 02 0431_02 0430_20160113_035301_.mp4

Date
01/13/2016
W/O
547709
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00312
PipeID
P02754
Time
2:40 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2955
Sewer Name
02 70TH WAY EXTENSION TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
35
Purpose
Routine Assessment
Project
WO_547709_TV02338_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
02 0431
Downstream MH
02 0430
Dir. of Survey
Downstream
Length Surveyed
304.4 ft.
Total Length
304.4 ft.
Structural Index
4
Structural Quick
4E31
Structural Rating
117
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
117
Pipe schematic from manhole 02 0431 to 02 0430
MH: 02 0431MH: 02 0430downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 043110.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"27.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES32.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES42.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start58.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"111.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"159.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"177.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish207.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"260 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"272.3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES304.4 ft. AMH - Downstream Manhole, Survey Ends - 02 0430

Observation photos (4)

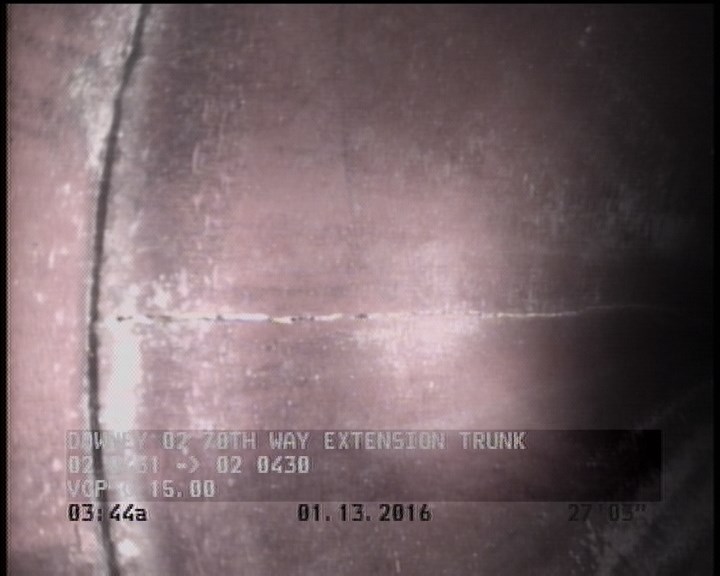

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    27.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

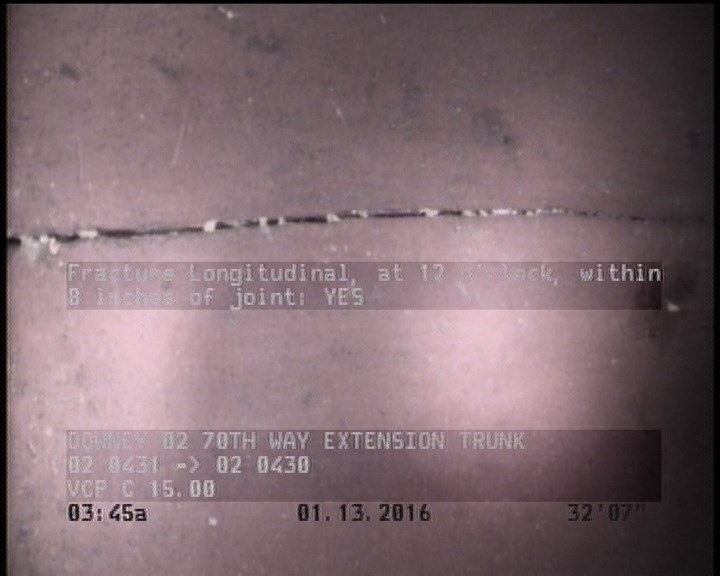

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    32.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

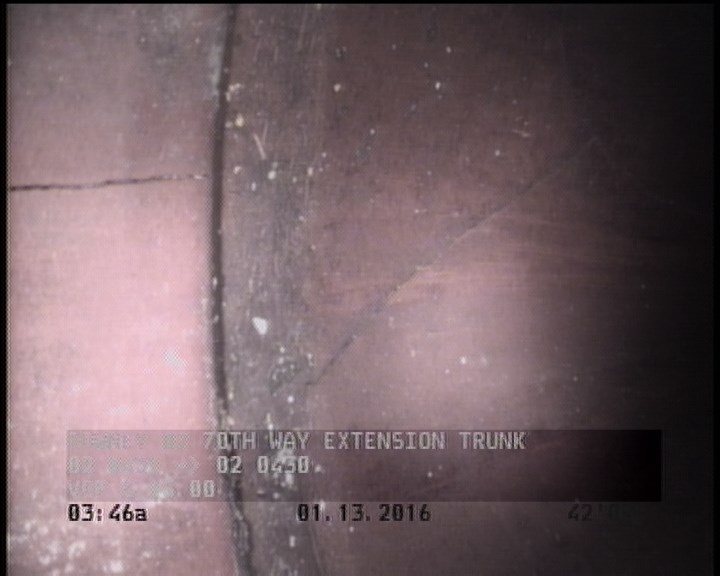

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    42.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    272.3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P02754Work order 547709

Observations (15)

DistanceCodeObservation
207.1TFC—
58.1TFC—
272.3FM—
304.4AMH02 0430
159.4TFA—
111.8TFC—
177.5FM—
0MWL—
0MWM—
10.5TFC—
0AMH02 0431
32.6FL—
260TFC—
42.2FM—
27.2CL—

Properties (5)

additional_info
SC224966
custom_field_two
2
customer
LACSD
datetime
2016-01-13T02:40:08-08:00
sewer_category
GRAVITY
