Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 12, 2016, 09:27 AM

  • G 0178_G 0177_20160112_014715.mp4

Date
01/12/2016
W/O
547459
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z01180
PipeID
P01083
Time
1:27 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3112
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
LYNNWOOD, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_547459_TV01053_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
G 0178
Downstream MH
G 0177
Dir. of Survey
Downstream
Length Surveyed
330.7 ft.
Total Length
330.7 ft.
Structural Index
2
Structural Quick
3123
Structural Rating
9
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole G 0178 to G 0177
MH: G 0178MH: G 0177downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - G 01780 ft. MWL - Water Level, 15 %of cross sectional area2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start61.3 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES75.8 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES259.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES268.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES283.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish283.6 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start327.4 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish330.6 ft. MGO - General Observation - CONNECTION AT MH 10 OCLOCK330.6 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK330.7 ft. AMH - Downstream Manhole, Survey Ends - G 0177330.7 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK

Observation photos (5)

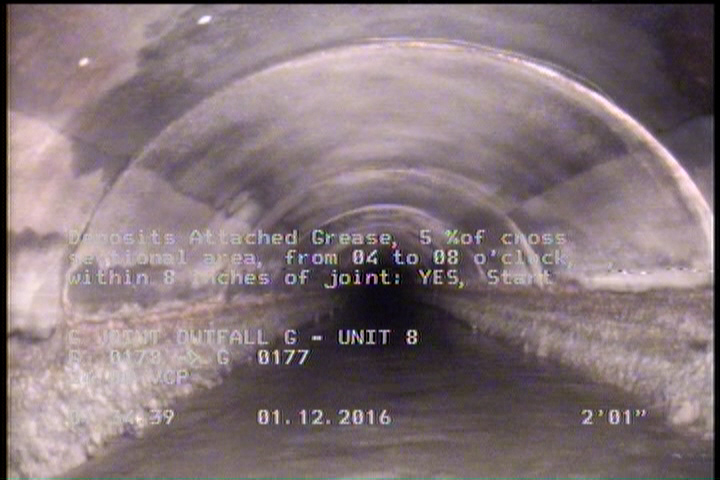

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

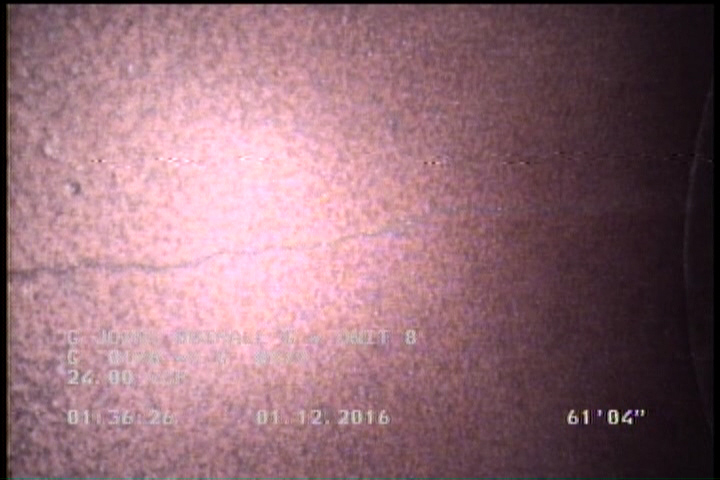

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    61.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

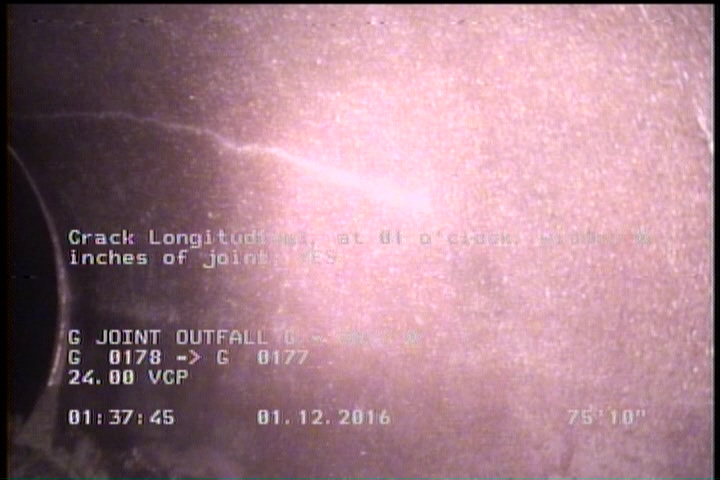

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    75.8 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

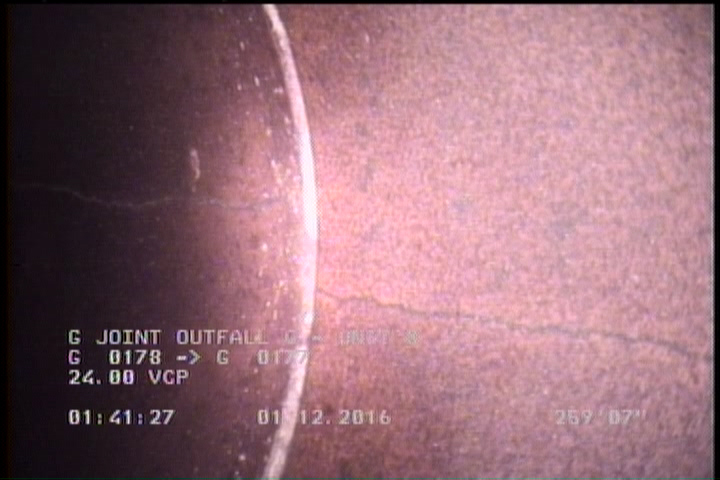

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    259.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

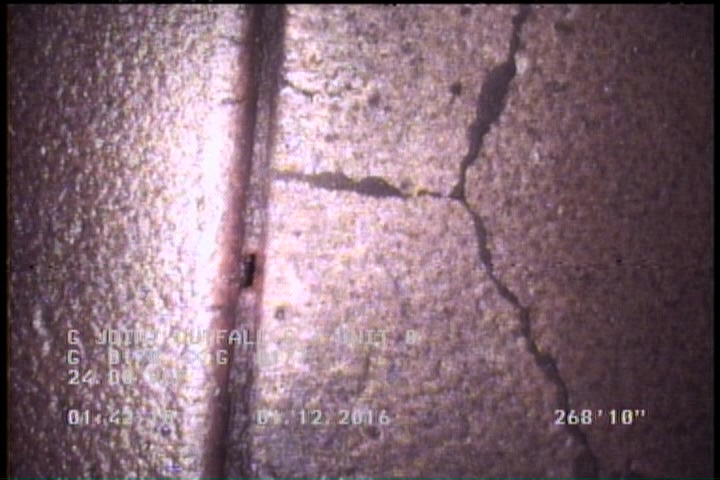

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    268.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P01083Work order 547459

Observations (15)

DistanceCodeObservation
61.3CL—
330.7AMHG 0177
268.8CM—
0MWM—
330.7MGOCONNECTION AT MH 3 OCLOCK
283.6DAGS—
327.4DAGS—
330.6MGOCONNECTION AT MH 10 OCLOCK
283.6DAGS—
0AMHG 0178
2.1DAGS—
259.6CL—
0MWL—
330.6MGOCONNECTION AT MH 9 OCLOCK
75.8CL—

Properties (5)

additional_info
SC224493
custom_field_two
3
customer
LACSD
datetime
2016-01-12T01:27:00-08:00
sewer_category
GRAVITY
