Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2016, 12:11 PM

  • G 0206_G 0205_20160111_043017.mp4

Date
01/11/2016
W/O
547459
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z01180
PipeID
P01111
Time
4:11 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3111
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
SOUTH GATE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_547459_TV01053_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
G 0206
Downstream MH
G 0205
Dir. of Survey
Downstream
Length Surveyed
489.3 ft.
Total Length
489.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole G 0206 to G 0205
MH: G 0206MH: G 0205downstream0 ft. AMH - Upstream Manhole, Survey Begins - G 02060 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area7 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start486.3 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish489.3 ft. AMH - Downstream Manhole, Survey Ends - G 0205

Observation photos (1)

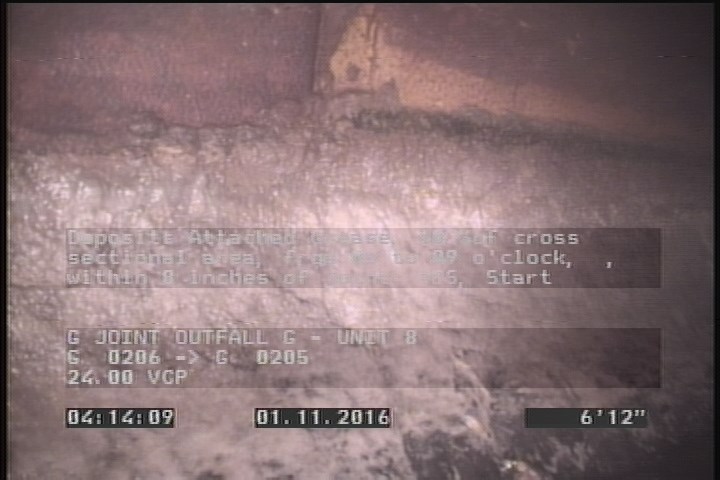

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    7 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P01111Work order 547459

Observations (6)

DistanceCodeObservation
486.3DAGS—
7DAGS—
0AMHG 0206
0MWM—
489.3AMHG 0205
0MWL—

Properties (5)

additional_info
SC224492
custom_field_two
4
customer
LACSD
datetime
2016-01-11T04:11:00-08:00
sewer_category
GRAVITY
