Wastewater/Activity/PacpInspection/1.0Aug 30, 2016, 10:42 AM
08 0482_08 0481A _08302016_034249.mp4
- Date
- 08/30/2016
- W/O
- 585990
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00007
- PipeID
- P23409
- Time
- 3:42 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3647
- Sewer Name
- 08 FRAMPTON AVENUE TRUNK
- City
- HARBOR CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_585990_TV08086_AUG2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0482
- Downstream MH
- 08 0481A
- Dir. of Survey
- Downstream
- Length Surveyed
- 159.8 ft.
- Total Length
- 159.8 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 62
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 70
Observation photos (3)

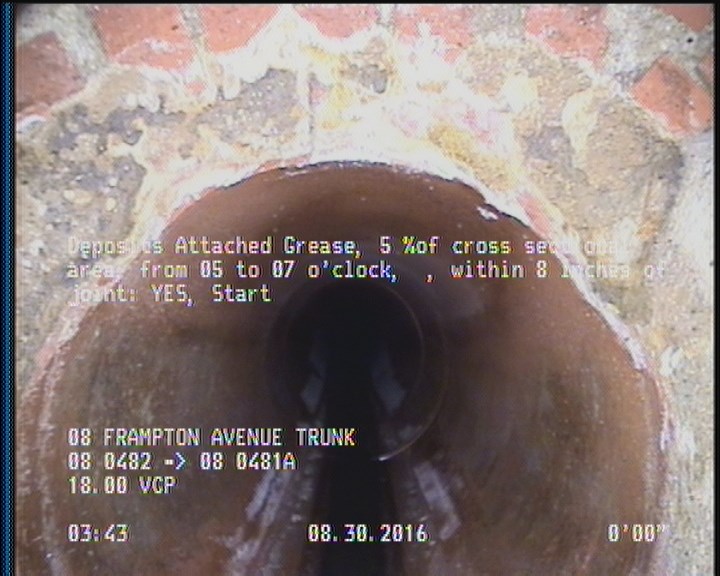

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

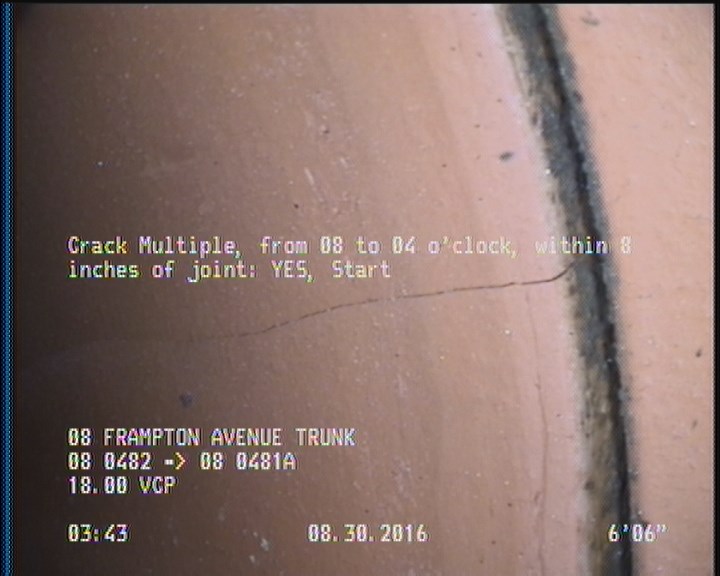

6.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

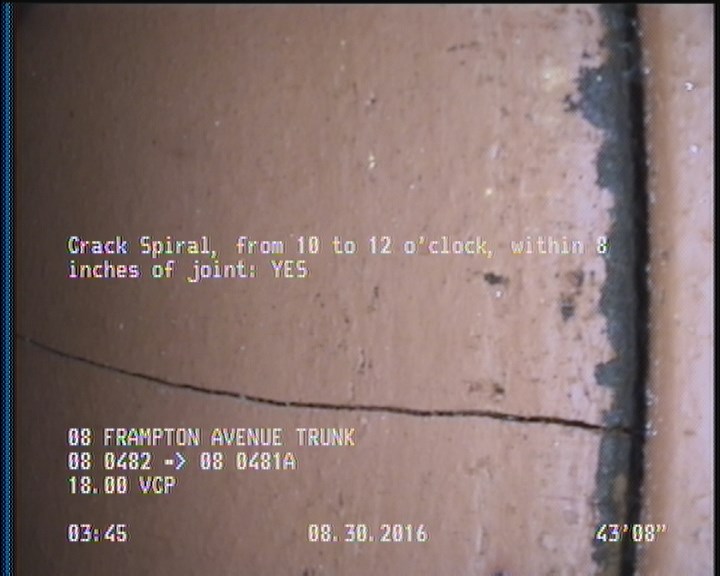

43.7 ft. - Crack Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 159.8 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 6.5 | CM | — |
| 0 | AMH | 08 0482 |
| 2 | DAGS | — |
| 43.7 | CS | — |
| 93.1 | CM | — |
| 0 | MWL | — |
| 101.1 | TFC | — |
| 50.7 | TFC | — |
| 0 | MWM | — |
| 159.8 | AMH | 08 0481A |
| 151.2 | TFC | — |
| 158.1 | DAGS | — |
Properties (5)
- additional_info
- SC306086
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-08-30T03:42:10-07:00
- sewer_category
- Gravity
