Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2016, 10:50 AM

  • 08 0481A_08 0481 _08302016_035124.mp4

Date
08/30/2016
W/O
585990
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00007
PipeID
P00540
Time
3:50 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3647
Sewer Name
08 FRAMPTON AVENUE TRUNK
City
HARBOR CITY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
16
Purpose
Routine Assessment
Project
WO_585990_TV08086_AUG2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
08 0481A
Downstream MH
08 0481
Dir. of Survey
Downstream
Length Surveyed
331.1 ft.
Total Length
331.1 ft.
Structural Index
3
Structural Quick
3I23
Structural Rating
162
O&M Index
2
O&M Quick
2L00
O&M Rating
130
Overall Index
2
Overall Quick
—
Overall Rating
292
Pipe schematic from manhole 08 0481A to 08 0481
MH: 08 0481AMH: 08 0481downstream0 ft. AMH - Upstream Manhole, Survey Begins - 08 0481A0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start41.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"44.6 ft. CS - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES64.8 ft. CS - Crack Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES67 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start94.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"144.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"194.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"223.3 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES245.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"295.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"326.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish329.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish331.1 ft. AMH - Downstream Manhole, Survey Ends - 08 0481331.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK331.1 ft. MGO - General Observation - CAPPED CONNECTION AT MH 3 O'CLOCK

Observation photos (5)

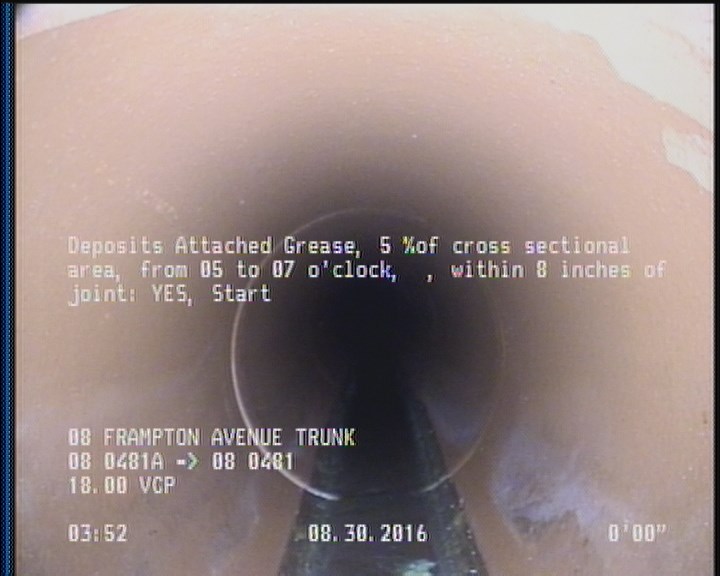

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

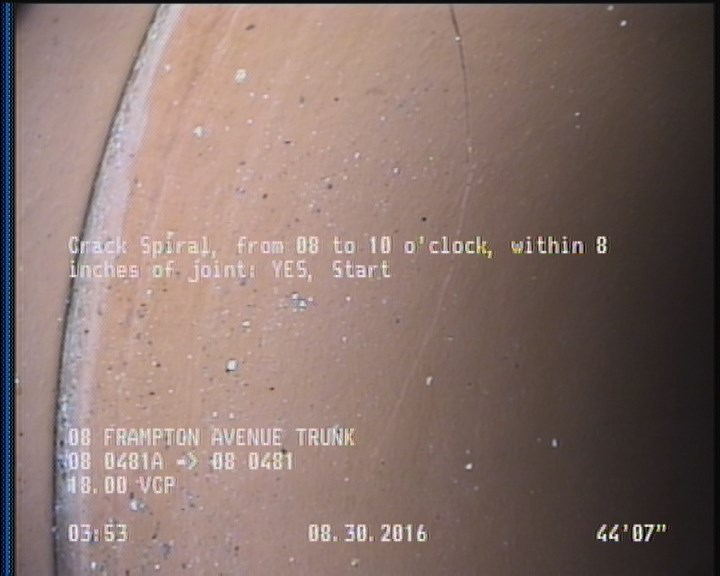

  • Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES

    44.6 ft. - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES

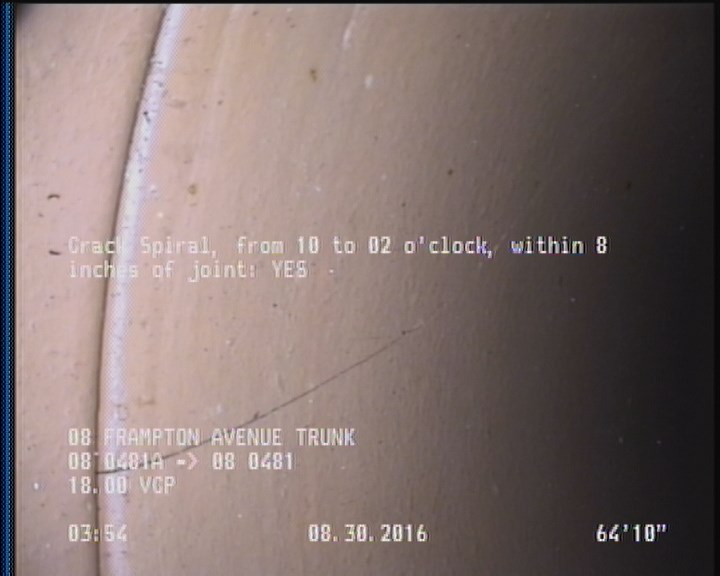

  • Crack Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES

    64.8 ft. - Crack Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES

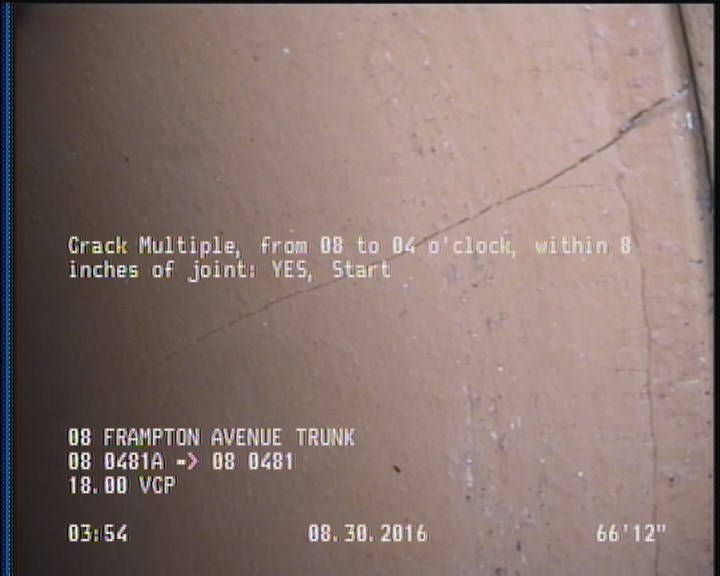

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    67 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

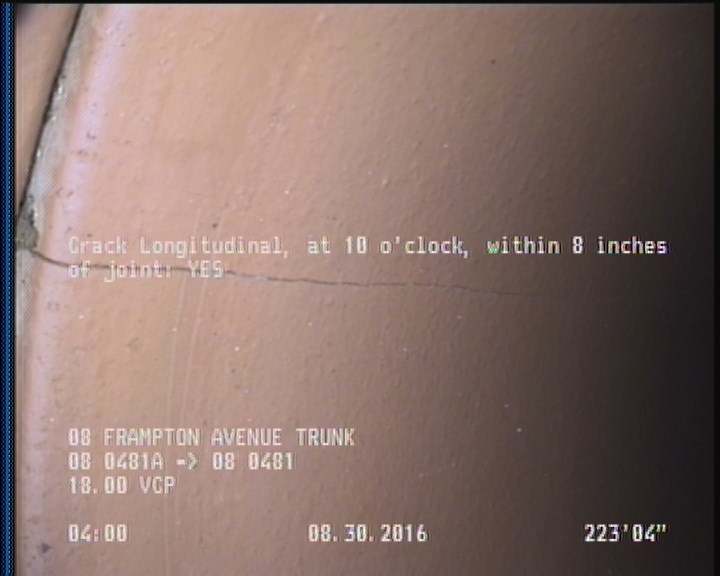

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    223.3 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

All inspections of P00540Work order 585990

Observations (20)

DistanceCodeObservation
331.1AMH08 0481
194.6TFC—
41.3TF—
331.1MGOACTIVE CONNECTION AT MH 9 O'CLOCK
64.8CS—
67CM—
0AMH08 0481A
223.3CL—
245.5TFC—
94.4TFC—
295.6TFA—
2DAGS—
0MWL—
144.4TF—
326.7CM—
0MWM—
331.1MGOCAPPED CONNECTION AT MH 3 O'CLOCK
329.2DAGS—
44.6CS—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK

Properties (5)

additional_info
SC306086
custom_field_two
3
customer
LACSD
datetime
2016-08-30T03:50:40-07:00
sewer_category
Gravity
