Wastewater/Activity/PacpInspection/1.0Aug 31, 2016, 07:00 AM
08 0479_08 0478 _08312016_000131.mp4
- Date
- 08/31/2016
- W/O
- 585990
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00007
- PipeID
- P00537
- Time
- 12:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3648
- Sewer Name
- 08 FRAMPTON AVENUE TRUNK
- City
- HARBOR CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_585990_TV08086_AUG2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0479
- Downstream MH
- 08 0478
- Dir. of Survey
- Downstream
- Length Surveyed
- 99.4 ft.
- Total Length
- 99.4 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 38
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 44
Observation photos (4)

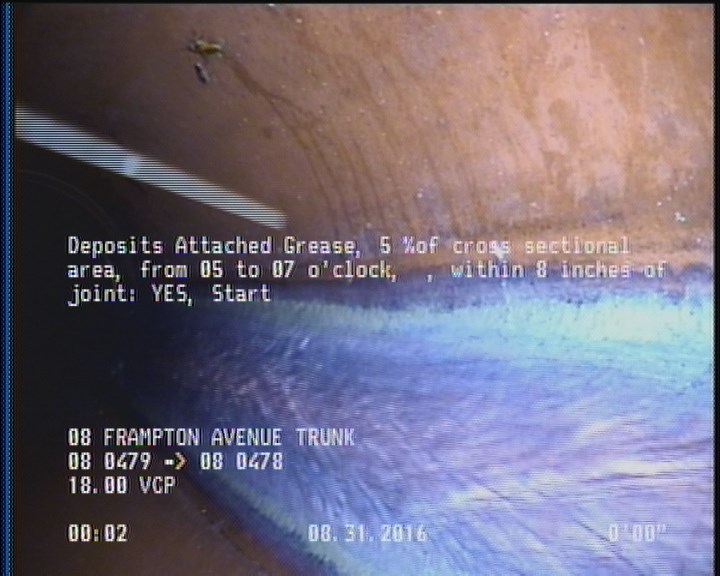

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

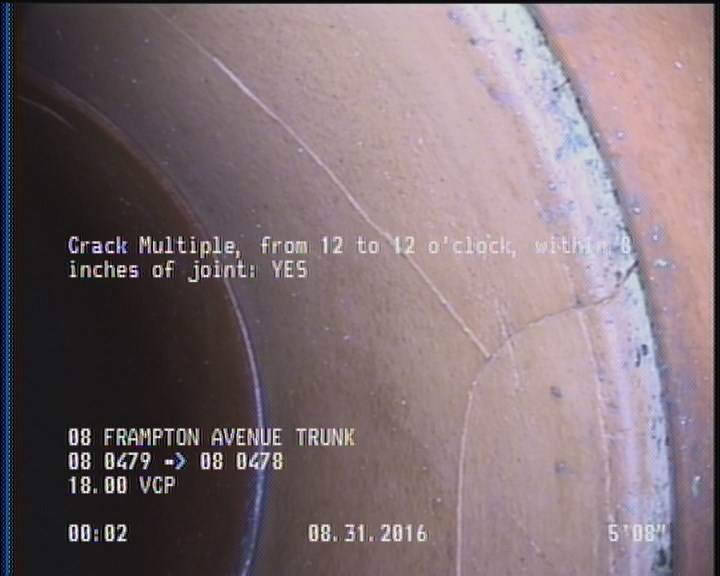

5.7 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

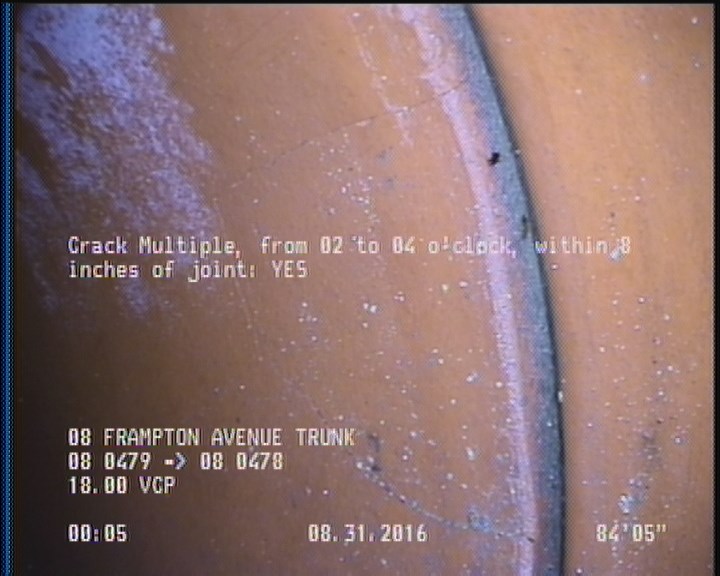

84.4 ft. - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

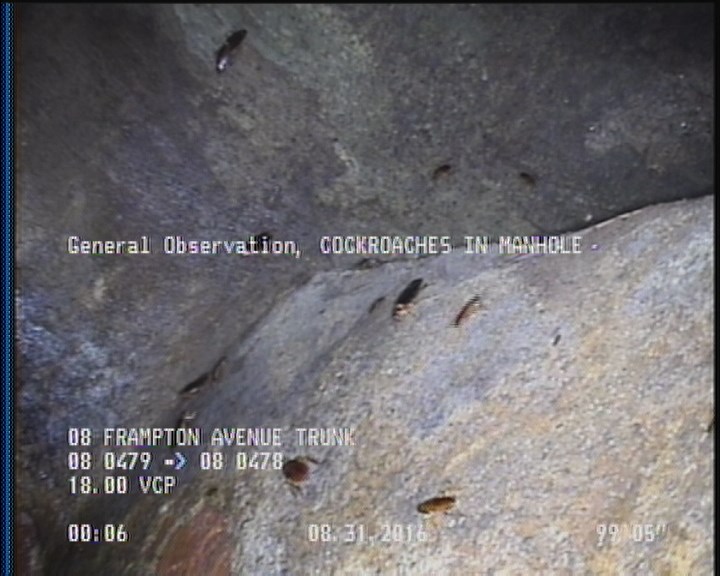

99.4 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 35.3 | TFC | — |
| 0 | AMH | 08 0479 |
| 99.4 | AMH | 08 0478 |
| 85.1 | TFC | — |
| 84.4 | CM | — |
| 99.4 | MGO | COCKROACHES IN MANHOLE |
| 99.4 | MGO | CAPPED CONNECTION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 5.7 | CM | — |
| 95.8 | DAGS | — |
Properties (5)
- additional_info
- SC306087
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-08-31T00:00:23-07:00
- sewer_category
- Gravity
