Wastewater/Activity/PacpInspection/1.0Aug 31, 2016, 07:43 AM
08 0478_05 1699 _08312016_004357.mp4
- Date
- 08/31/2016
- W/O
- 585990
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00007
- PipeID
- P00536
- Time
- 12:43 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3648
- Sewer Name
- 08 FRAMPTON AVENUE TRUNK
- City
- HARBOR CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_585990_TV08086_AUG2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0478
- Downstream MH
- 05 1699
- Dir. of Survey
- Downstream
- Length Surveyed
- 88.3 ft.
- Total Length
- 88.3 ft.
- Structural Index
- 3
- Structural Quick
- 413B
- Structural Rating
- 46
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 34
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 80
Observation photos (4)

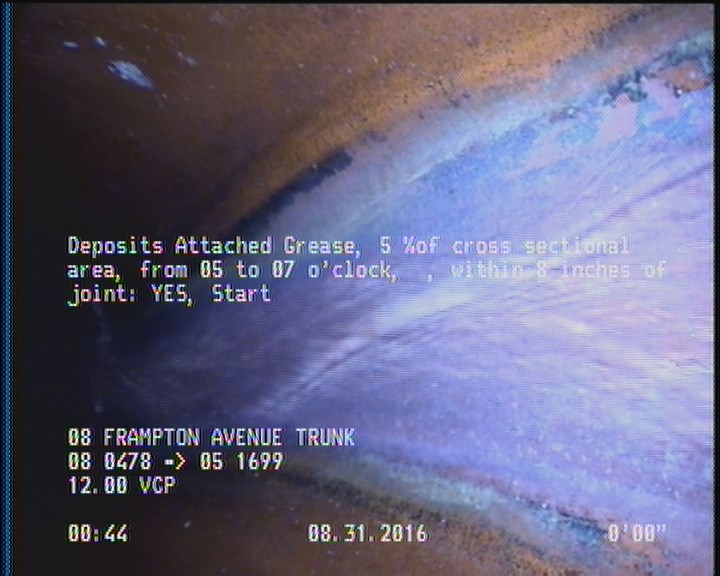

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

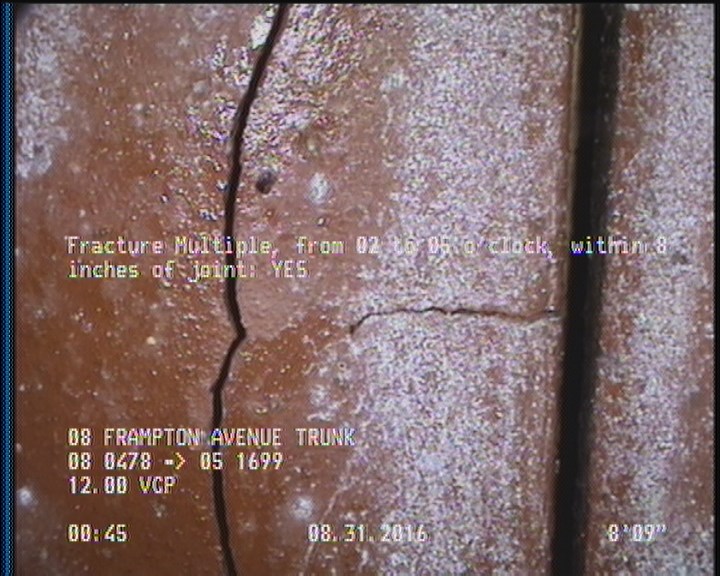

8.7 ft. - Fracture Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

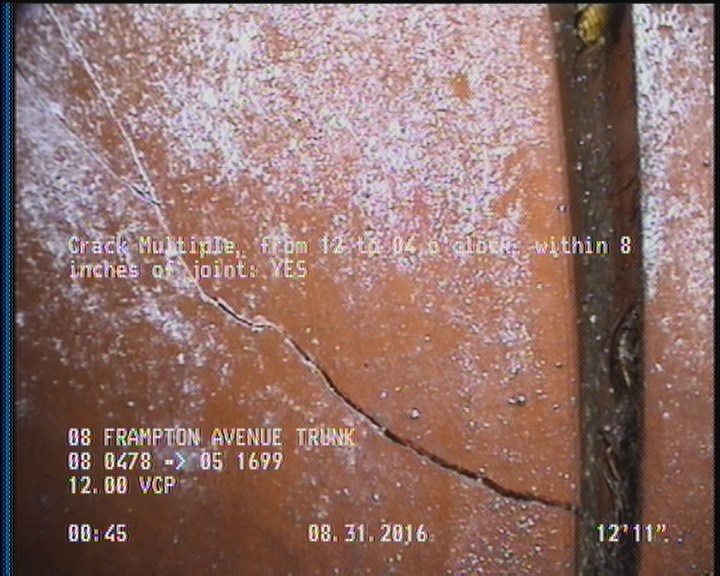

12.9 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

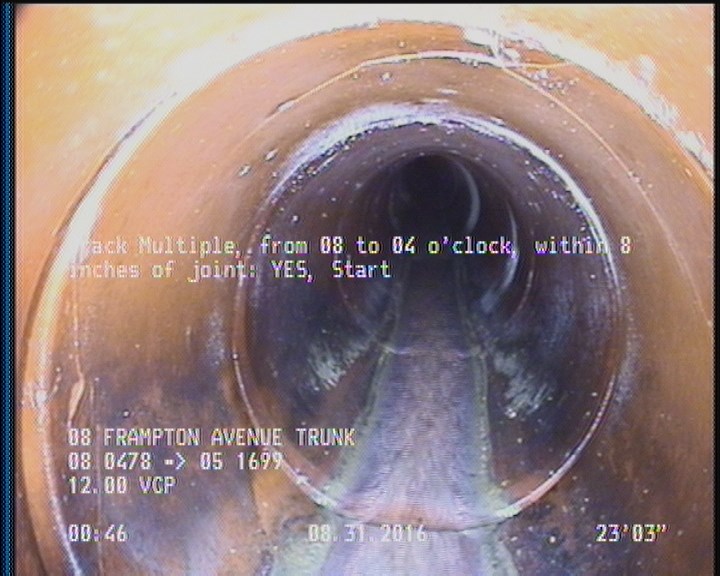

23.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 08 0478 |
| 0 | MWM | — |
| 88.3 | AMH | 05 1699 |
| 87.4 | DAGS | — |
| 88.3 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 23.2 | CM | — |
| 12.9 | CM | — |
| 8.7 | FM | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 87.4 | CM | — |
Properties (5)
- additional_info
- SC306087
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-08-31T00:43:40-07:00
- sewer_category
- Gravity
