Wastewater/Activity/PacpInspection/1.0Sep 21, 2016, 08:44 AM
J 0307_J 0306_20160921_025546.mp4
- Date
- 09/21/2016
- W/O
- 585666
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00059
- PipeID
- P11548
- Time
- 1:44 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3712
- Sewer Name
- J JOINT OUTFALL J - UNIT 1G
- City
- PALOS VERDES, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 41
- Purpose
- Routine Assessment
- Project
- WO_585666_TV05319_AUG2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- J 0307
- Downstream MH
- J 0306
- Dir. of Survey
- Downstream
- Length Surveyed
- 341.6 ft.
- Total Length
- 341.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (3)

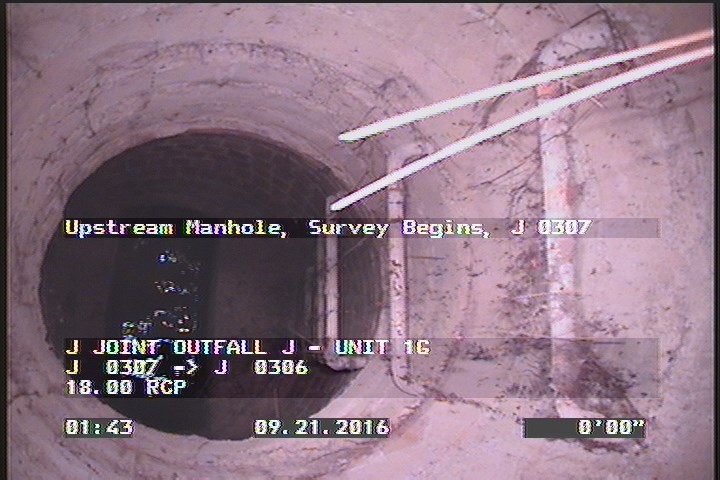

0 ft. - Upstream Manhole, Survey Begins - J 0307

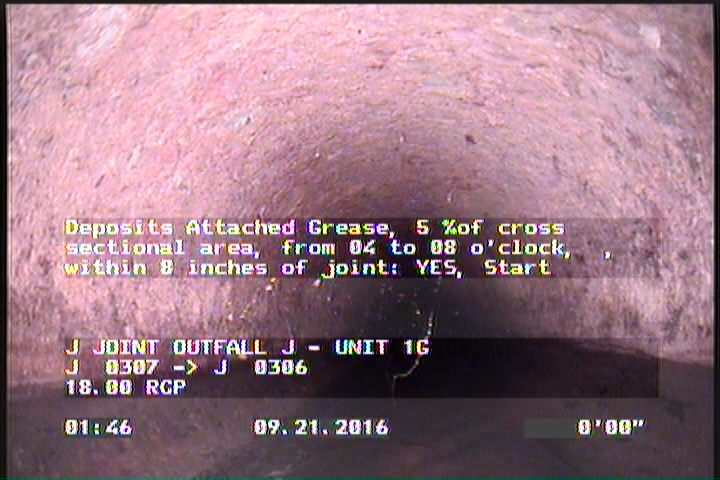

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

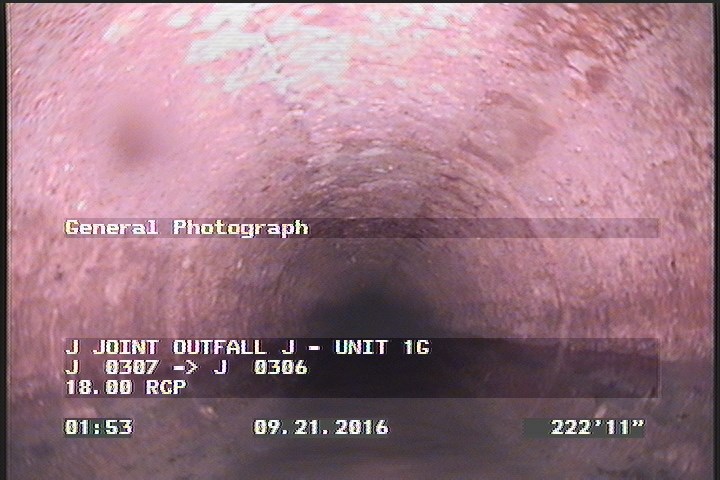

222.9 ft. - General Photograph
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 222.9 | MGP | — |
| 2 | DAGS | — |
| 341.6 | AMH | J 0306 |
| 0 | MWM | — |
| 339.3 | MGO | MAG.H.C. FINISH |
| 0 | AMH | J 0307 |
| 339.3 | DAGS | — |
| 0 | MWL | — |
| 2 | MGO | MAG.H.C. START 80% |
Properties (5)
- additional_info
- SC306047
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-21T01:44:00-07:00
- sewer_category
- Gravity
