Wastewater/Activity/PacpInspection/1.0Sep 7, 2016, 07:15 AM
08 0333_08 0332_20160907_012907.mp4
- Date
- 09/07/2016
- W/O
- 585488
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00003
- PipeID
- P00383
- Time
- 12:15 AM
- Certificate
- U508-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3701
- Sewer Name
- 08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
- City
- WILMINGTON, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_585488_TV08012_AUG2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 08 0333
- Downstream MH
- 08 0332
- Dir. of Survey
- Downstream
- Length Surveyed
- 325 ft.
- Total Length
- 325 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

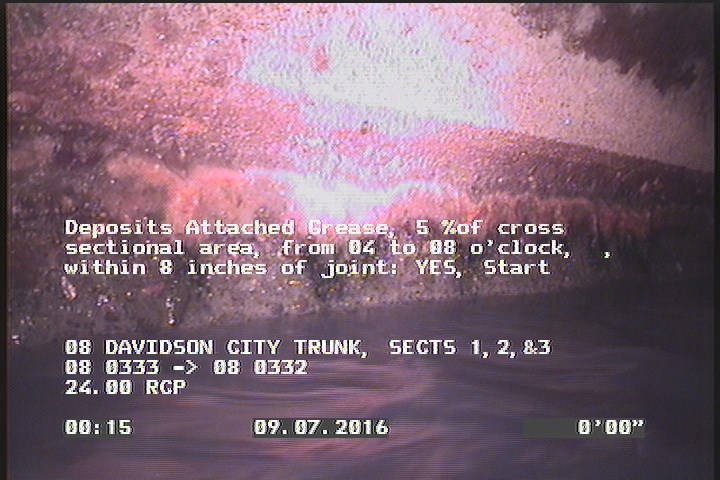

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 322.8 | MGO | MAG.H.C. FINISH |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 2 | MGO | MAG.H.C. START 15% |
| 322.8 | DAGS | — |
| 0 | MWL | — |
| 0 | DAGS | — |
| 0 | MGO | CONNECTION AT THE MH 2 O'CLOCK |
| 325 | AMH | 08 0332 |
| 0 | AMH | 08 0333 |
| 148.2 | TBA | — |
Properties (5)
- additional_info
- SC306032
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-07T00:15:00-07:00
- sewer_category
- Gravity
