Wastewater/Activity/PacpInspection/1.0Sep 6, 2016, 11:27 AM
08 0639_08 0638 _20160906_053802.mp4
- Date
- 09/06/2016
- W/O
- 585488
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00003
- PipeID
- P00393
- Time
- 4:27 AM
- Certificate
- U508-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Heavy Cleaning
- Media Label
- K3700
- Sewer Name
- 08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
- City
- CARSON, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_585488_TV08012_AUG2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 08 0638
- Downstream MH
- 08 0639
- Dir. of Survey
- Upstream
- Length Surveyed
- 37 ft.
- Total Length
- 37 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (1)

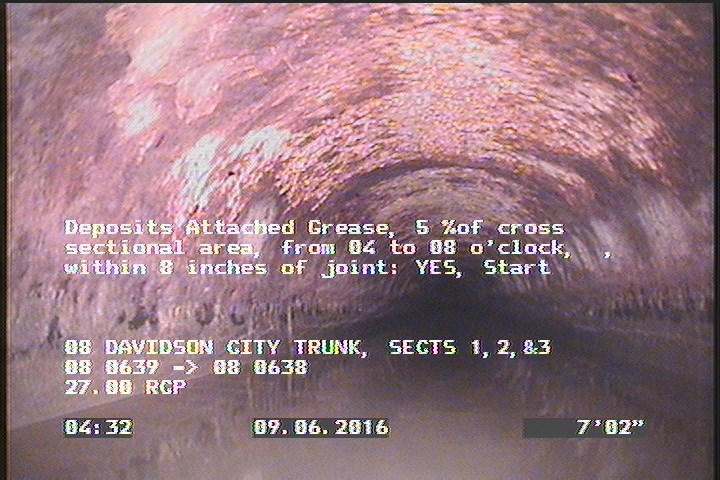

7.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 08 0638 |
| 37 | MSA | DUE TO SLUGE |
| 7.2 | DAGS | — |
| 36.5 | DSZ | SLUGE |
| 2 | MGO | MAG.H.C. START |
| 0 | MWM | — |
| 37 | DAGS | — |
Properties (6)
- additional_info
- SC306031
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-09-06T04:27:00-07:00
- sewer_category
- Gravity
- year_laid
- 26654
