Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 31, 2016, 10:58 AM

  • 08 0225_08 0224 _08312016_040112.mp4

Date
08/31/2016
W/O
580149
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00005
PipeID
P00099
Time
3:58 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3649
Sewer Name
08 EAST ROAD TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
WO_580149_TV08112_AUG2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
08 0224
Downstream MH
08 0225
Dir. of Survey
Upstream
Length Surveyed
117.3 ft.
Total Length
117.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2H00
O&M Rating
92
Overall Index
2
Overall Quick
—
Overall Rating
92
Pipe schematic from manhole 08 0224 to 08 0225
MH: 08 0224MH: 08 0225upstream0 ft. AMH - Upstream Manhole, Survey Ends - 08 02250 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - CAPPED CONNECTION AT MH 9 O'CLOCK1 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish1 ft. MGO - General Observation - COCKROACHES IN MANHOLE1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish26.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"113.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"115.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start115.3 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start117.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE117.3 ft. MWL - Water Level, 10 %of cross sectional area117.3 ft. MWM - Water Mark, 20 %of cross sectional area117.3 ft. AMH - Downstream Manhole, Survey Begins - 08 0224

Observation photos (3)

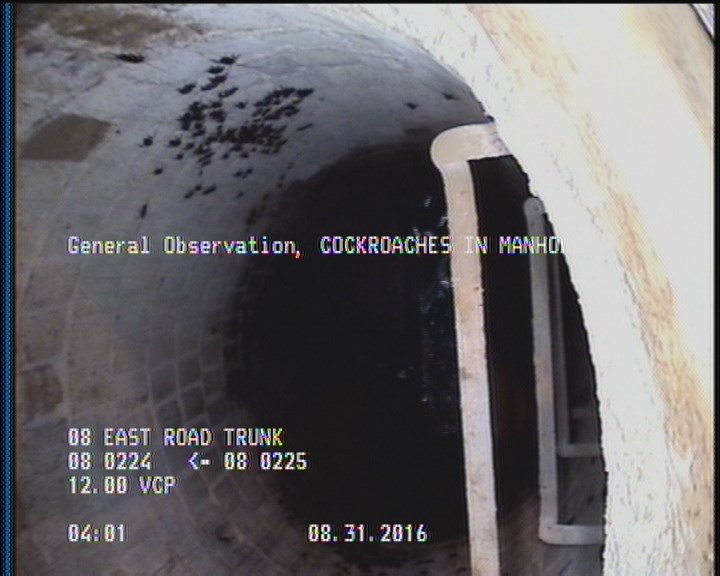

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

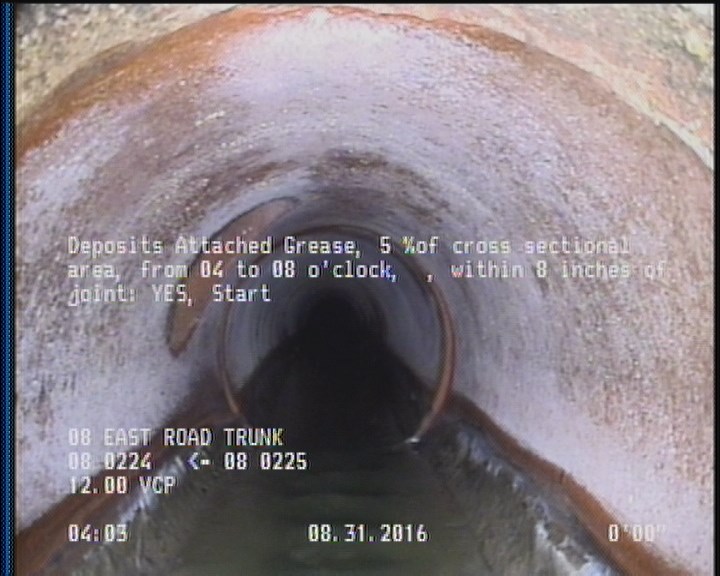

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

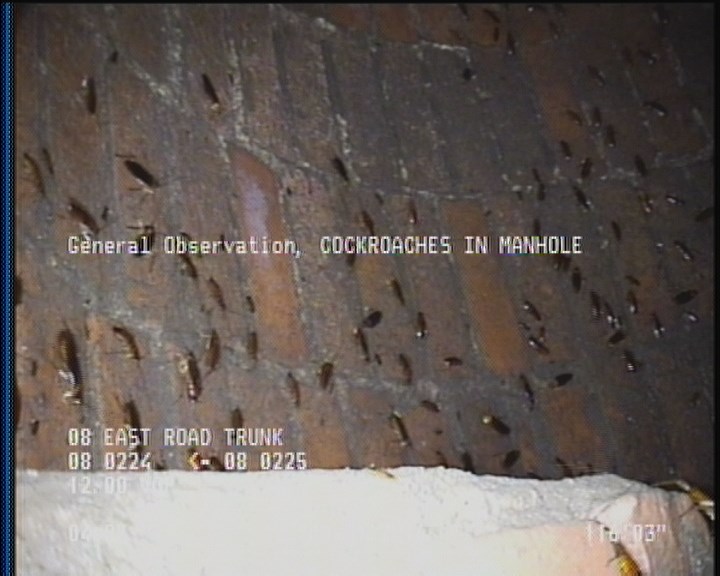

  • General Observation - COCKROACHES IN MANHOLE

    116.3 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00099Work order 580149

Observations (14)

DistanceCodeObservation
116.3DAE—
117.3AMH08 0225
0MGOCOCKROACHES IN MANHOLE
3.9TFC—
0MWL—
0MWM—
2DAGS—
116.3MGOCOCKROACHES IN MANHOLE
117.3MGOACTIVE CONNECTION AT MH 3 O'CLOCK
90.9TFC—
116.3DAGS—
0AMH08 0224
2DAE—
117.3MGOCAPPED CONNECTION AT MH 9 O'CLOCK

Properties (5)

additional_info
SC306088
custom_field_two
4
customer
LACSD
datetime
2016-08-31T03:58:25-07:00
sewer_category
Gravity
