Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 1, 2016, 08:02 AM

  • 08 0228_08 0227 _09012016_010444.mp4

Date
09/01/2016
W/O
580149
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00005
PipeID
P00102
Time
1:02 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3650
Sewer Name
08 EAST ROAD TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
WO_580149_TV08112_AUG2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
08 0228
Downstream MH
08 0227
Dir. of Survey
Downstream
Length Surveyed
89.8 ft.
Total Length
89.8 ft.
Structural Index
3
Structural Quick
3821
Structural Rating
26
O&M Index
2
O&M Quick
2F00
O&M Rating
72
Overall Index
2
Overall Quick
—
Overall Rating
98
Pipe schematic from manhole 08 0228 to 08 0227
MH: 08 0228MH: 08 0227downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 02282 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start35.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"45.8 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES52.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start89.8 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish89.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish89.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE89.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish89.8 ft. AMH - Downstream Manhole, Survey Ends - 08 0227

Observation photos (4)

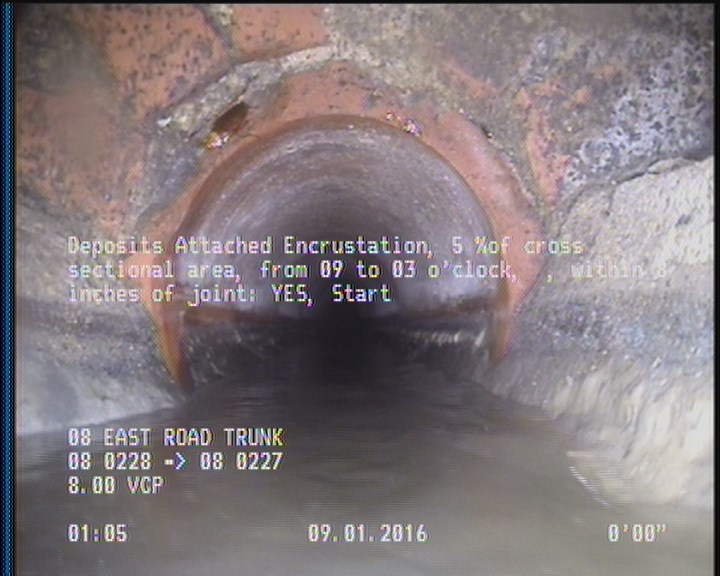

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

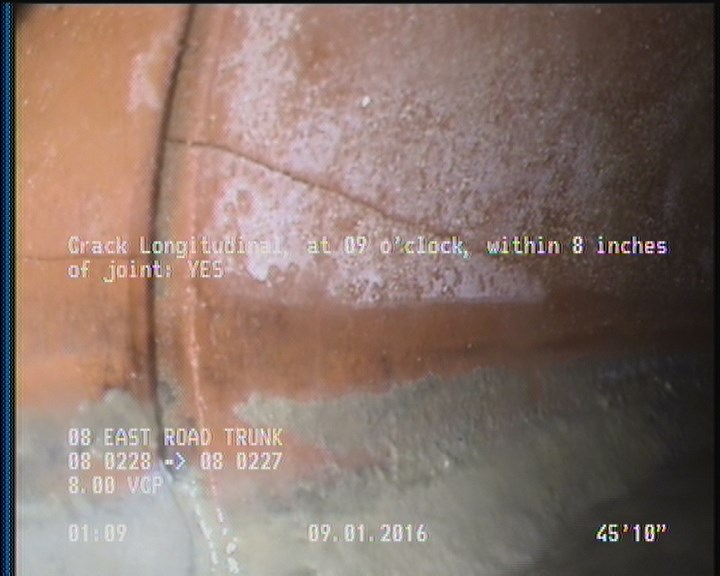

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    45.8 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

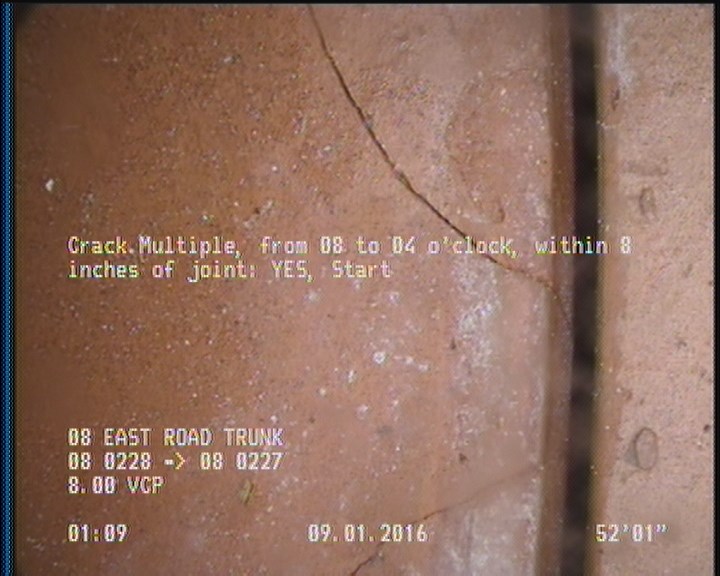

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    52.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

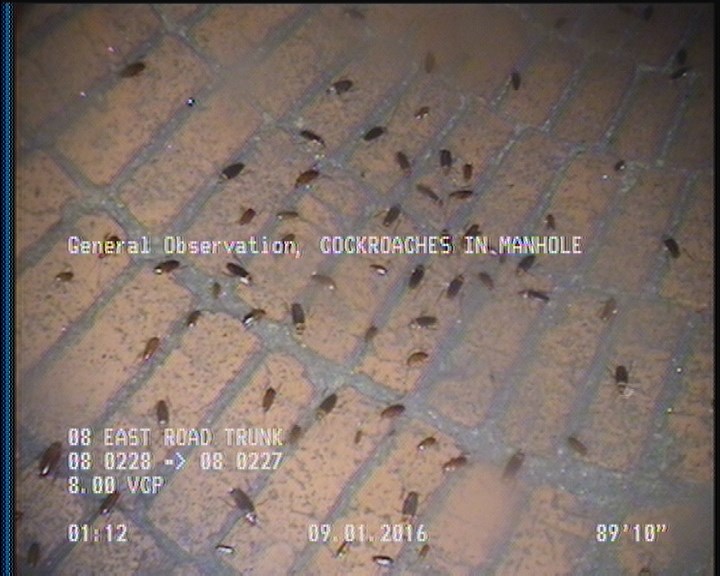

  • General Observation - COCKROACHES IN MANHOLE

    89.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00102Work order 580149

Observations (14)

DistanceCodeObservation
52.1CM—
0MGOCOCKROACHES IN MANHOLE
2DAE—
0MWL—
89.8DAE—
89.8DAGS—
89.8MGOCOCKROACHES IN MANHOLE
0DAGS—
89.8CM—
35.2TFA—
45.8CL—
89.8AMH08 0227
0MWM—
0AMH08 0228

Properties (5)

additional_info
SC306090
custom_field_two
3
customer
LACSD
datetime
2016-09-01T01:02:34-07:00
sewer_category
Gravity
