Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 31, 2016, 09:19 AM

  • 08 0216_08 0215 _08312016_021958.mp4

Date
08/31/2016
W/O
580149
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00005
PipeID
P00086
Time
2:19 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3649
Sewer Name
08 EAST ROAD TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
WO_580149_TV08112_AUG2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
08 0216
Downstream MH
08 0215
Dir. of Survey
Downstream
Length Surveyed
44.2 ft.
Total Length
44.2 ft.
Structural Index
3
Structural Quick
3500
Structural Rating
15
O&M Index
2
O&M Quick
2B00
O&M Rating
32
Overall Index
2
Overall Quick
—
Overall Rating
47
Pipe schematic from manhole 08 0216 to 08 0215
MH: 08 0216MH: 08 0215downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 02160 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start16.7 ft. CM - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES20.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start42.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE42.6 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish42.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish42.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish44.2 ft. AMH - Downstream Manhole, Survey Ends - 08 0215

Observation photos (6)

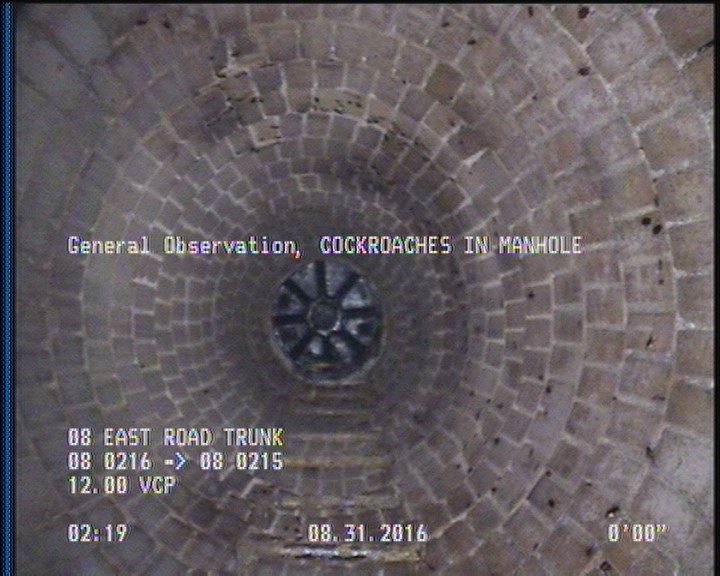

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

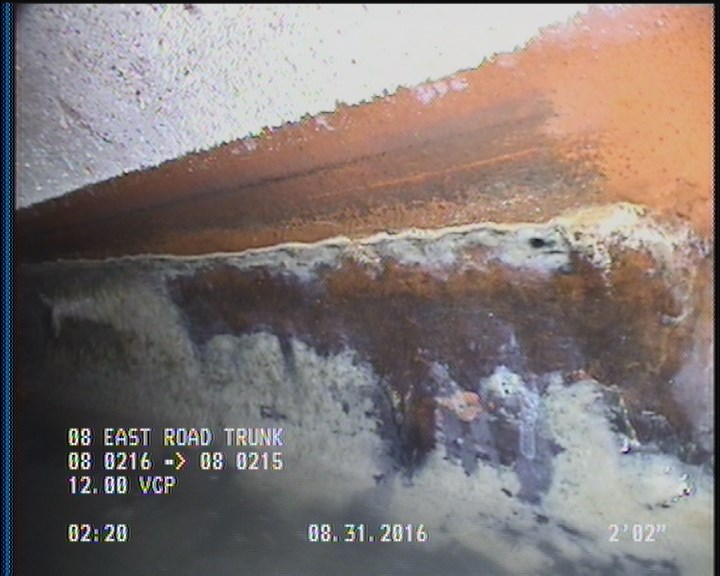

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

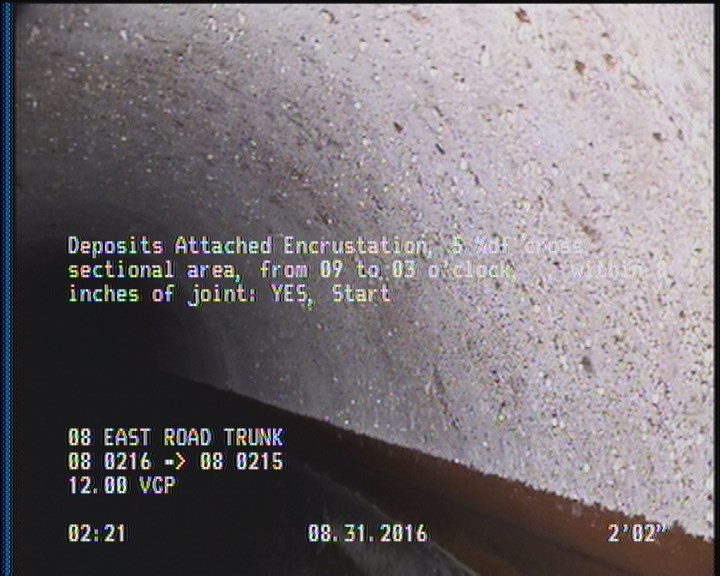

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    2.2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

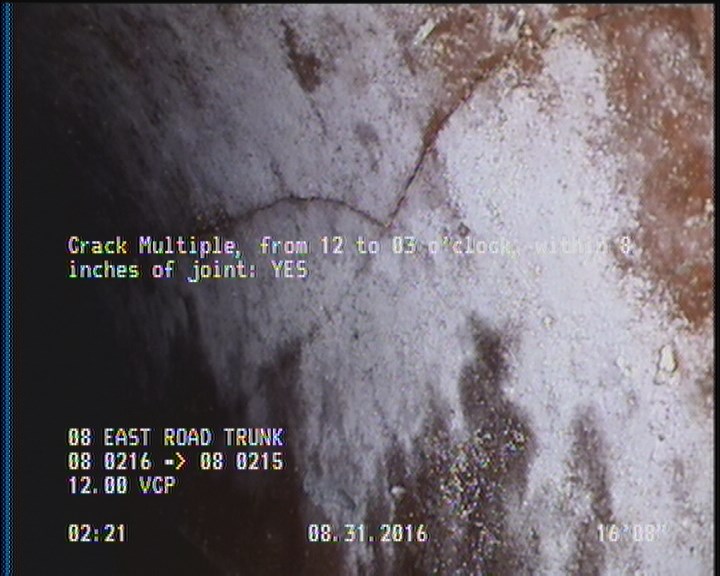

  • Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

    16.7 ft. - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

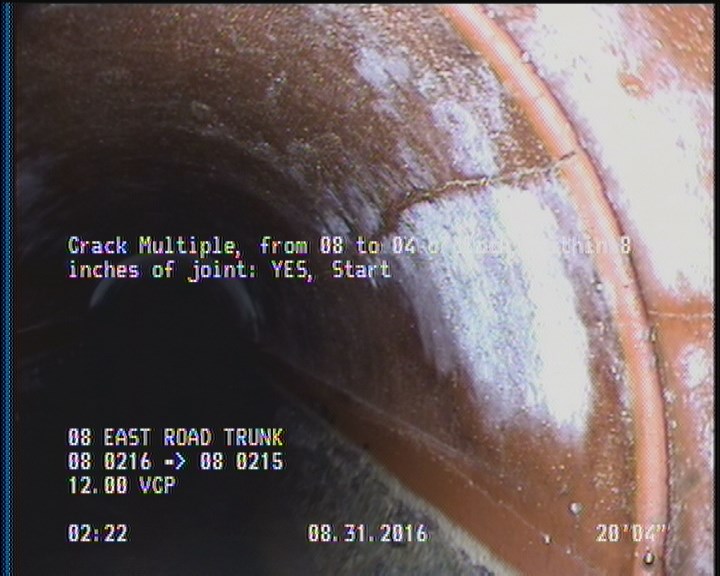

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    20.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

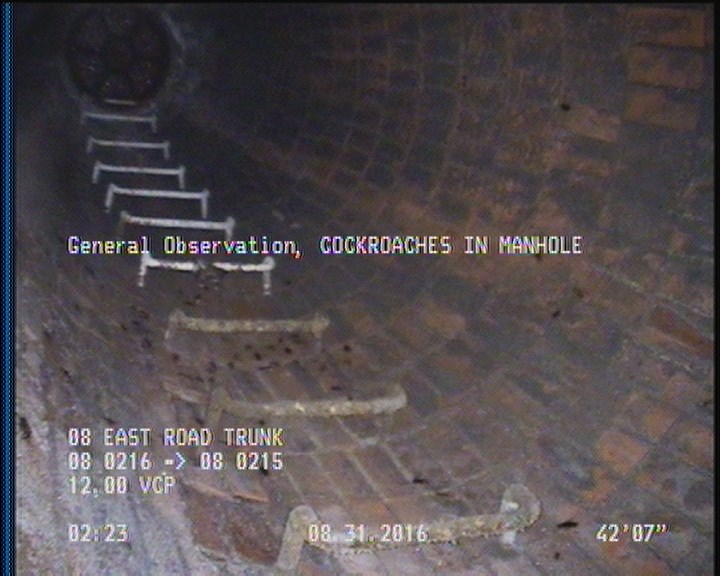

  • General Observation - COCKROACHES IN MANHOLE

    42.6 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00086Work order 580149

Observations (13)

DistanceCodeObservation
0MGOCOCKROACHES IN MANHOLE
42.6MGOCOCKROACHES IN MANHOLE
0MWL—
42.6DAE—
20.4CM—
42.6DAGS—
2DAGS—
44.2AMH08 0215
16.7CM—
42.6CM—
0AMH08 0216
0MWM—
2.2DAE—

Properties (5)

additional_info
SC306088
custom_field_two
4
customer
LACSD
datetime
2016-08-31T02:19:42-07:00
sewer_category
Gravity
