Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 31, 2016, 09:24 AM

  • 08 0215_08 0214 _08312016_022457.mp4

Date
08/31/2016
W/O
580149
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00005
PipeID
P00085
Time
2:24 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3649
Sewer Name
08 EAST ROAD TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
WO_580149_TV08112_AUG2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
08 0215
Downstream MH
08 0214
Dir. of Survey
Downstream
Length Surveyed
307.1 ft.
Total Length
307.1 ft.
Structural Index
4
Structural Quick
4K00
Structural Rating
240
O&M Index
2
O&M Quick
412W
O&M Rating
248
Overall Index
3
Overall Quick
—
Overall Rating
488
Pipe schematic from manhole 08 0215 to 08 0214
MH: 08 0215MH: 08 0214downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 08 02150 ft. MWL - Water Level, 20 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2.3 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start5.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"9 ft. CH2 - Crack Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start68.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"144.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"224 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"306.7 ft. CH2 - Crack Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish306.7 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish306.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish306.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE307.1 ft. AMH - Downstream Manhole, Survey Ends - 08 0214

Observation photos (5)

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

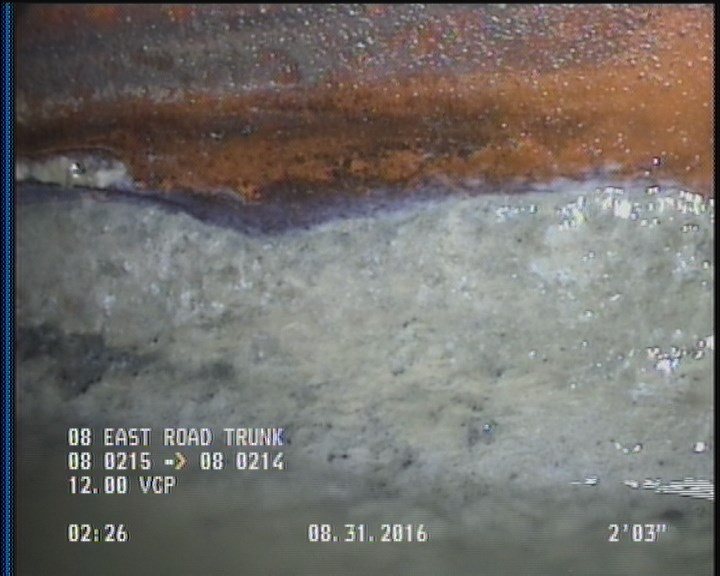

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

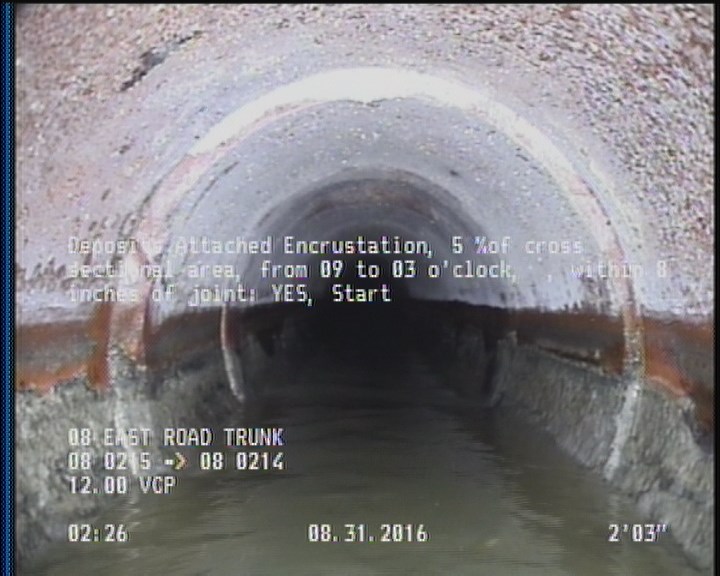

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    2.3 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

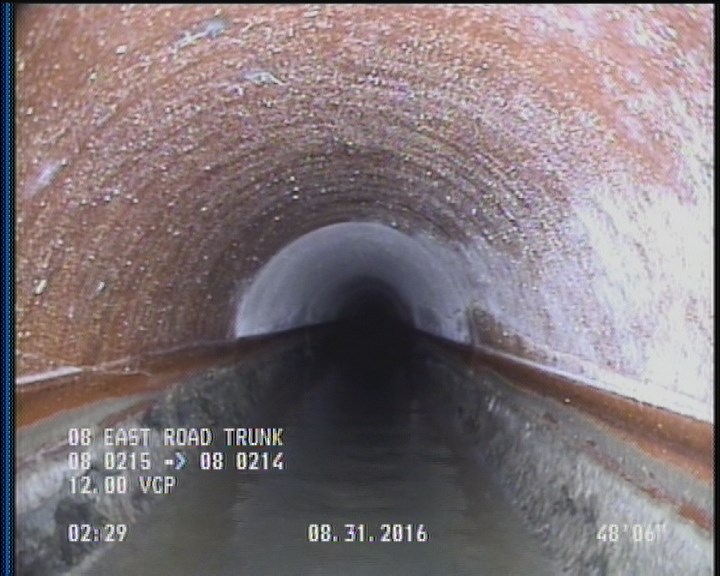

  • Crack Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    9 ft. - Crack Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

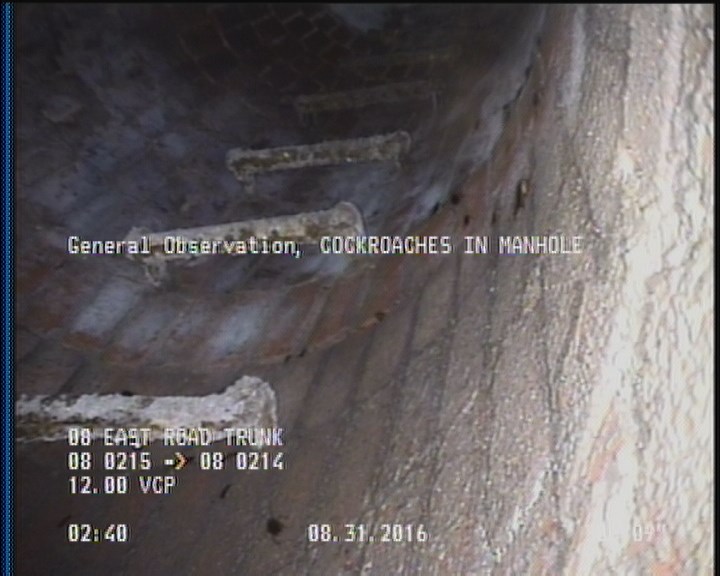

  • General Observation - COCKROACHES IN MANHOLE

    306.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00085Work order 580149

Observations (16)

DistanceCodeObservation
306.7CH2—
0MWM—
2DAGS—
0MGOCOCKROACHES IN MANHOLE
5.8TFC—
68.7TFC—
0AMH08 0215
306.8MGOCOCKROACHES IN MANHOLE
306.7DAE—
307.1AMH08 0214
224TF—
0MWL—
9CH2—
2.3DAE—
306.7DAGS—
144.4TFA—

Properties (5)

additional_info
SC306088
custom_field_two
4
customer
LACSD
datetime
2016-08-31T02:24:39-07:00
sewer_category
Gravity
