Wastewater/Activity/PacpInspection/1.0Aug 31, 2016, 09:07 AM
08 0217_08 0216 _08312016_020719.mp4
- Date
- 08/31/2016
- W/O
- 580149
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00005
- PipeID
- P00087
- Time
- 2:07 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3649
- Sewer Name
- 08 EAST ROAD TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_580149_TV08112_AUG2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0217
- Downstream MH
- 08 0216
- Dir. of Survey
- Downstream
- Length Surveyed
- 351.7 ft.
- Total Length
- 351.7 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 207
- O&M Index
- 2
- O&M Quick
- 2Z00
- O&M Rating
- 274
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 481
Observation photos (4)

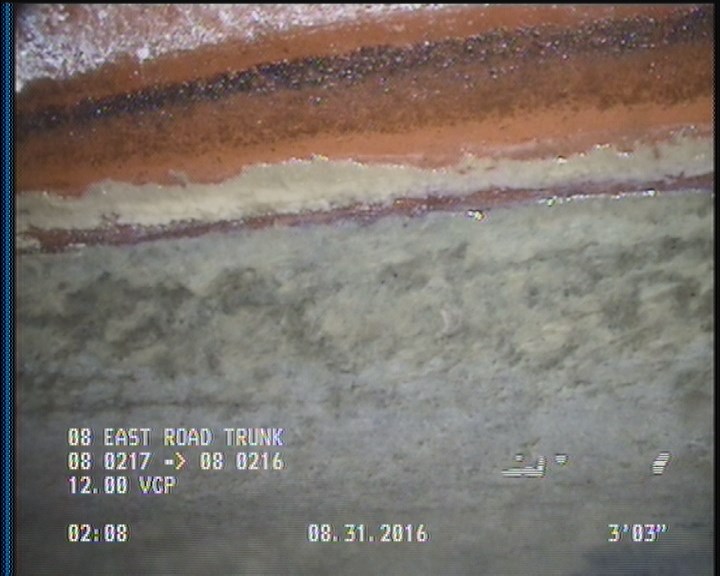

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

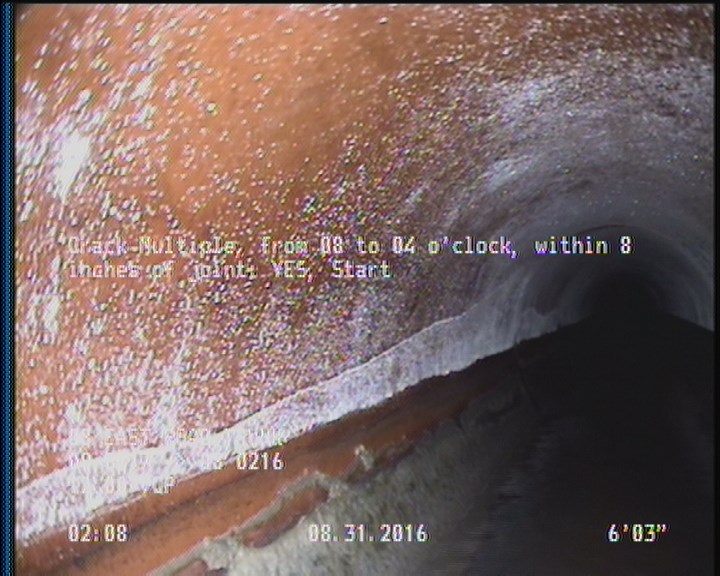

6.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

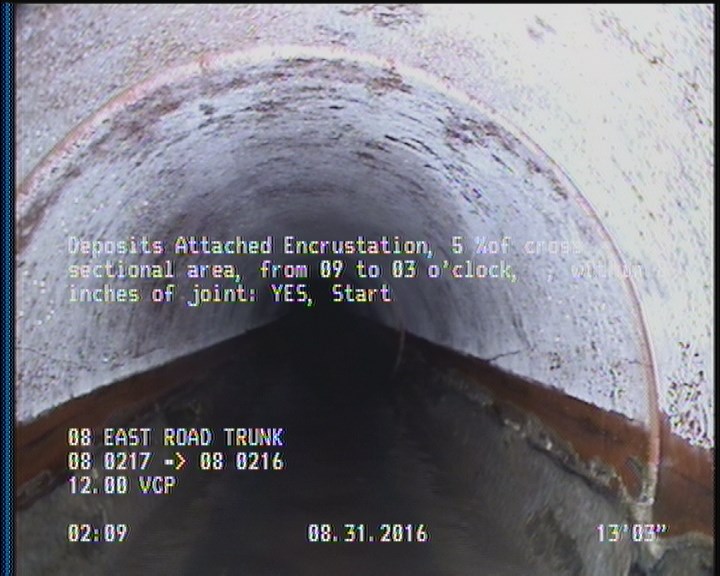

13.2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

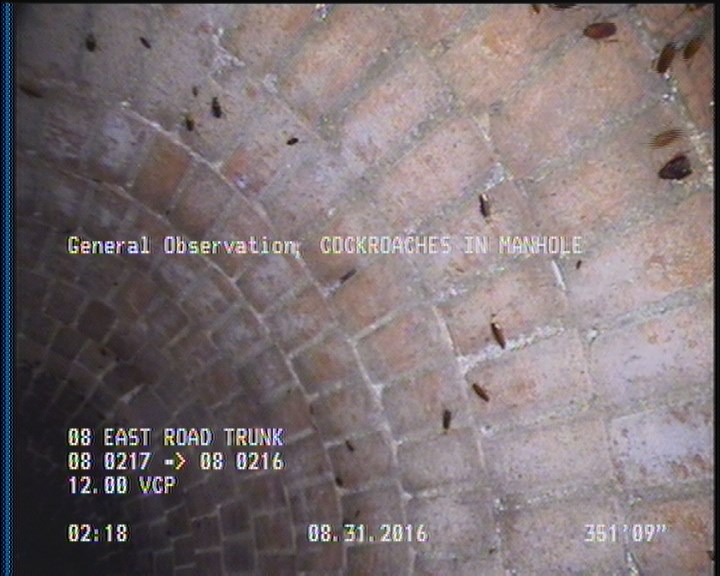

351.7 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 349.6 | CM | — |
| 349.6 | DAE | — |
| 351.7 | AMH | 08 0216 |
| 0 | AMH | 08 0217 |
| 351.7 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 13.2 | DAE | — |
| 2 | DAGS | — |
| 6.3 | CM | — |
| 349.6 | DAGS | — |
Properties (5)
- additional_info
- SC306088
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-31T02:07:00-07:00
- sewer_category
- Gravity
