Wastewater/Activity/PacpInspection/1.0Jan 5, 2016, 11:42 AM
22 0247_22 0246_20160105_044707.mp4
- Date
- 01/05/2016
- W/O
- 547395
- Weather
- Light Rain
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00793
- PipeID
- P16529
- Time
- 3:42 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3024
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_547395_TV22016_JAN2016
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 22 0247
- Downstream MH
- 22 0246
- Dir. of Survey
- Downstream
- Length Surveyed
- 35.2 ft.
- Total Length
- 35.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 1
- O&M Quick
- 2112
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

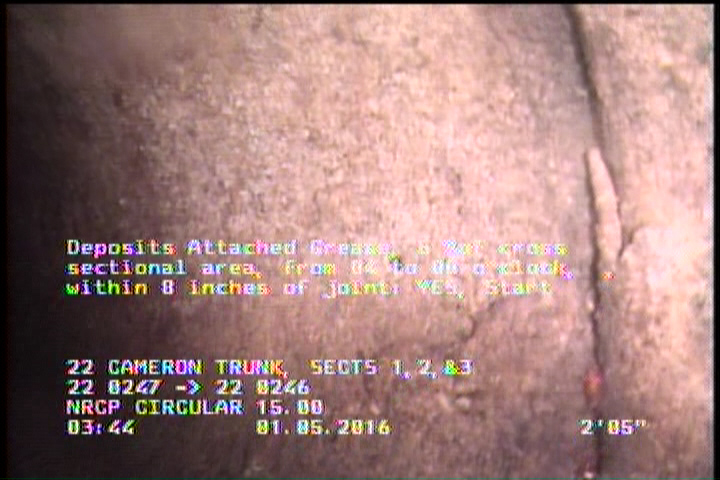

2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

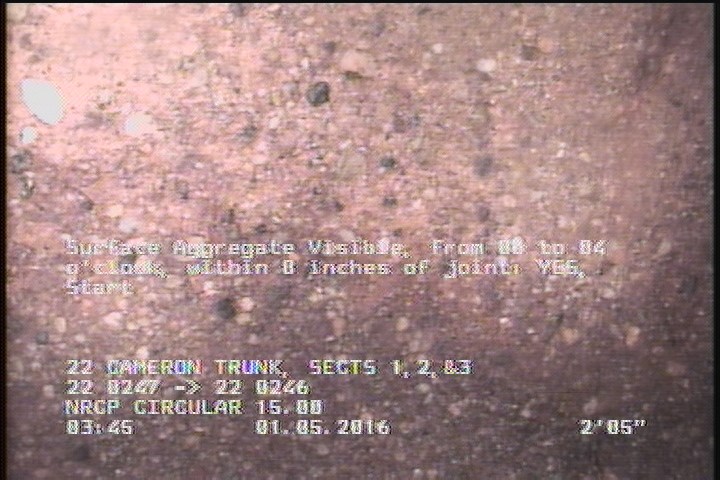

2.4 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 32.7 | SAV | — |
| 35.1 | VC | — |
| 32.7 | MGO | MAGNESIUM H.O. FINISH |
| 0 | AMH | 22 0247 |
| 2.4 | DAGS | — |
| 2.4 | MGO | MAGNESIUM H.O. START |
| 2.4 | SAV | — |
| 0 | VC | — |
| 32.7 | DAGS | — |
| 35.1 | MGO | LATERAL AT MH 3 O'CLOCK CAPPED |
| 0 | MWM | — |
| 0 | MGO | LATERAL AT MH 3 O'CLOCK ACTIVE |
| 35.2 | AMH | 22 0246 |
Properties (5)
- additional_info
- SC224617
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-05T03:42:18-08:00
- sewer_category
- GRAVITY
