Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 5, 2016, 09:11 AM

  • 22 0251_22 0250_20160105_022617.mp4

Date
01/05/2016
W/O
547395
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16533
Time
1:11 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3024
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_547395_TV22016_JAN2016
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0251
Downstream MH
22 0250
Dir. of Survey
Downstream
Length Surveyed
308.3 ft.
Total Length
308.3 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 22 0251 to 22 0250
MH: 22 0251MH: 22 0250downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 02510 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK ACTIVE0 ft. MWM - Water Mark, 20 %of cross sectional area2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - MAGNESIUM H.O. START9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"17 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES51.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"103.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"106.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"152.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4" - ROOTS INSIDE200.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"246.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"252.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"305.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish305.1 ft. MGO - General Observation - MAGNESIUM H.O. FINISH305.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish308.2 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK CAPPED308.3 ft. AMH - Downstream Manhole, Survey Ends - 22 0250308.3 ft. VC - Vermin Cockroach

Observation photos (4)

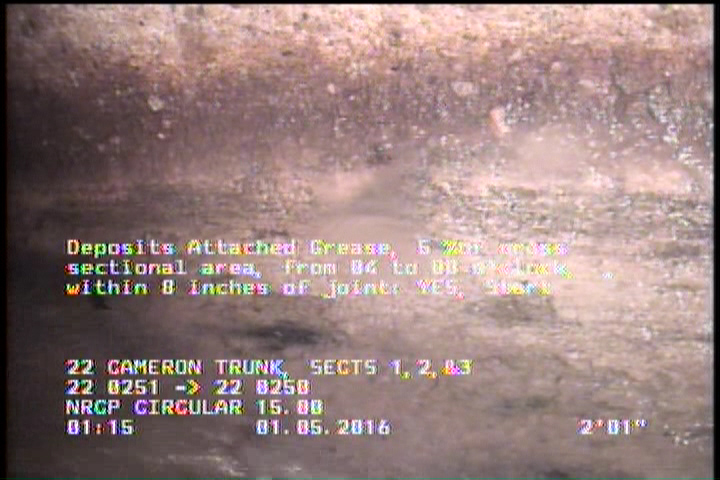

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

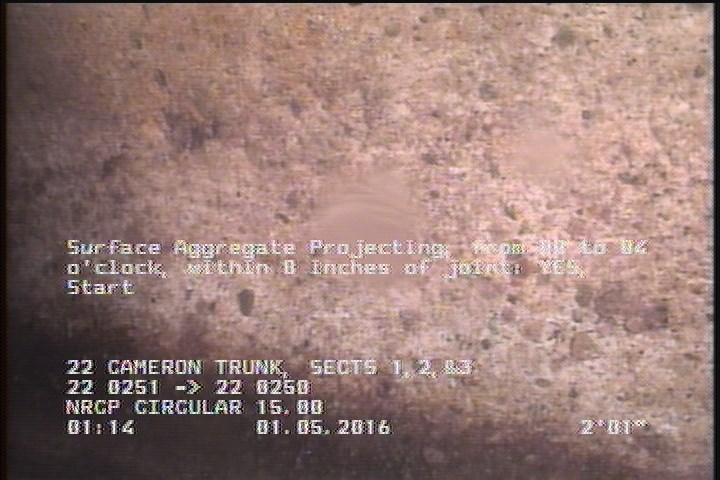

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

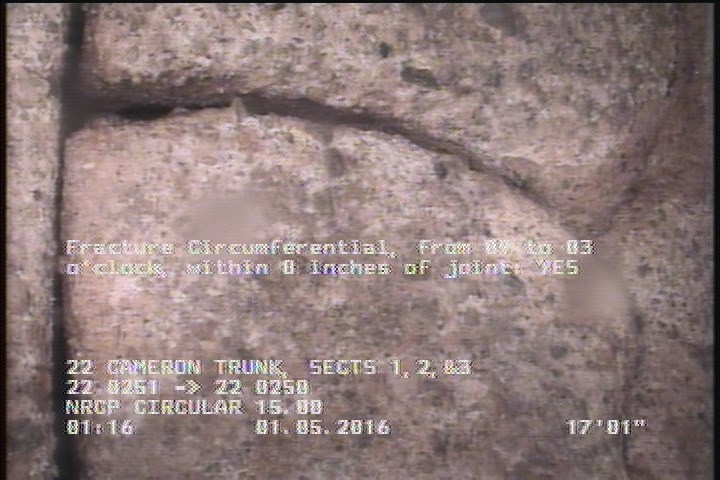

  • Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES

    17 ft. - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES

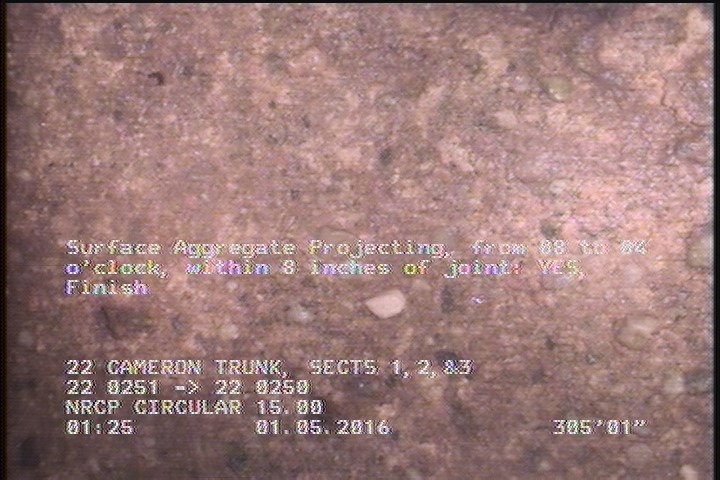

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    305.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

All inspections of P16533Work order 547395

Observations (22)

DistanceCodeObservation
0AMH22 0251
0MWL—
305.1SAP—
51.8TFA—
246.7TFA—
305.1MGOMAGNESIUM H.O. FINISH
2.1DAGS—
106.3TFA—
2.1SAP—
2.1MGOMAGNESIUM H.O. START
0MGOLATERAL AT MH 3 O'CLOCK ACTIVE
152.3TFAROOTS INSIDE
308.3AMH22 0250
305.1DAGS—
308.2MGOLATERAL AT MH 3 O'CLOCK CAPPED
17FC—
0MWM—
103.3TFC—
308.3VC—
200.8TFA—
252.6TFA—
9TFC—

Properties (5)

additional_info
SC224617
custom_field_two
3
customer
LACSD
datetime
2016-01-05T01:11:59-08:00
sewer_category
GRAVITY
