Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 6, 2016, 10:11 AM

  • 22 0239_22 0238_20160106_033133.mp4

Date
01/06/2016
W/O
547395
Weather
Damp
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16521
Time
2:11 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3026
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
35
Purpose
Routine Assessment
Project
WO_547395_TV22016_JAN2016
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0239
Downstream MH
22 0238
Dir. of Survey
Downstream
Length Surveyed
388.6 ft.
Total Length
388.6 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
3121
O&M Rating
7
Overall Index
2
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 22 0239 to 22 0238
MH: 22 0239MH: 22 0238downstream0 ft. MGO - General Observation - LATERAL AT MH 9 O'CLOCK ACTIVE0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. VC - Vermin Cockroach0 ft. AMH - Upstream Manhole, Survey Begins - 22 02392.9 ft. MGO - General Observation - MAGNESIUM H.O. START2.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start24.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"28 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"76.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"85.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"116.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"128.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"153.2 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: YES, 4" - CRACK INSIDE183.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"201.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"246.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"265.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"280.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"296 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"326 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6"332.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"341.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"378 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"381.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"385.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish385.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish385.1 ft. MGO - General Observation - MAGNESIUM H.O. FINISH388.6 ft. AMH - Downstream Manhole, Survey Ends - 22 0238388.6 ft. VC - Vermin Cockroach388.6 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK ACTIVE

Observation photos (2)

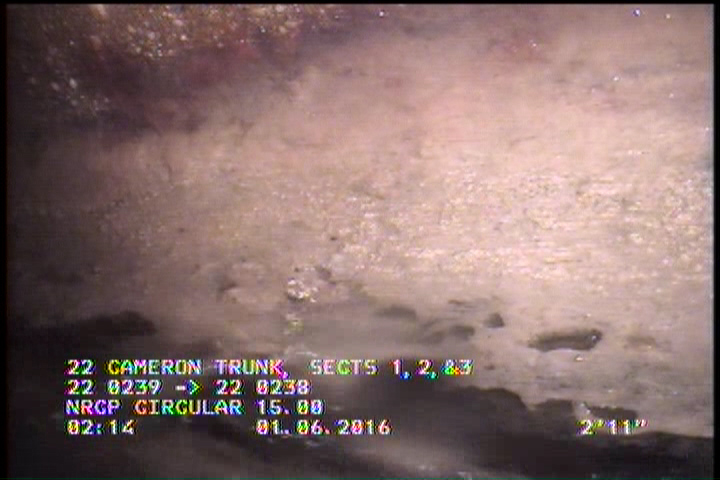

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

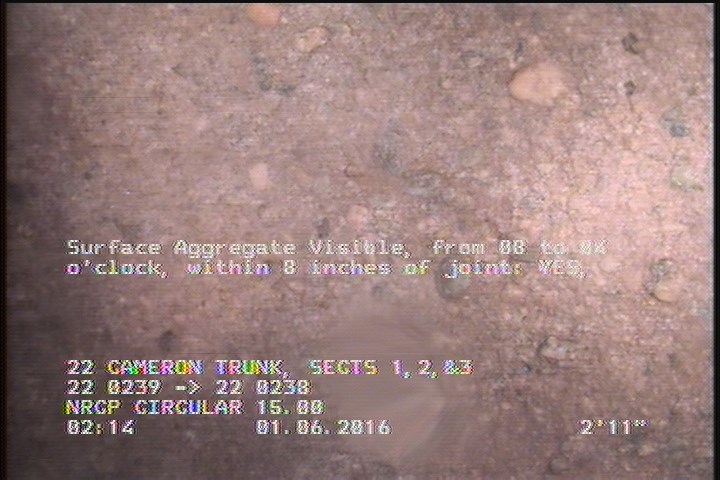

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16521Work order 547395

Observations (32)

DistanceCodeObservation
2.9MGOMAGNESIUM H.O. START
2.9DAGS—
116.1TFA—
153.2TBDCRACK INSIDE
381.1TF—
0MGOLATERAL AT MH 9 O'CLOCK ACTIVE
0MWL—
332.3TF—
246.4TFC—
388.6AMH22 0238
388.6VC—
341.7TFC—
0MWM—
385.1DAGS—
0VC—
28TFC—
76.2TFC—
183.2TF—
0AMH22 0239
378TFC—
326TB—
280.8TFC—
24.8TFC—
2.9SAV—
296TF—
385.1SAV—
201.6TFA—
128.2TFC—
385.1MGOMAGNESIUM H.O. FINISH
265.5TFC—
85.4TFC—
388.6MGOLATERAL AT MH 3 O'CLOCK ACTIVE

Properties (5)

additional_info
SC224619
custom_field_two
3
customer
LACSD
datetime
2016-01-06T02:11:50-08:00
sewer_category
GRAVITY
