Wastewater/Activity/PacpInspection/1.0Jan 4, 2016, 10:43 AM
22 0262_22 0261_20160104_035918.mp4
- Date
- 01/04/2016
- W/O
- 547395
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00793
- PipeID
- P16544
- Time
- 2:43 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3023
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_547395_TV22016_JAN2016
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 22 0262
- Downstream MH
- 22 0261
- Dir. of Survey
- Downstream
- Length Surveyed
- 316.8 ft.
- Total Length
- 316.8 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

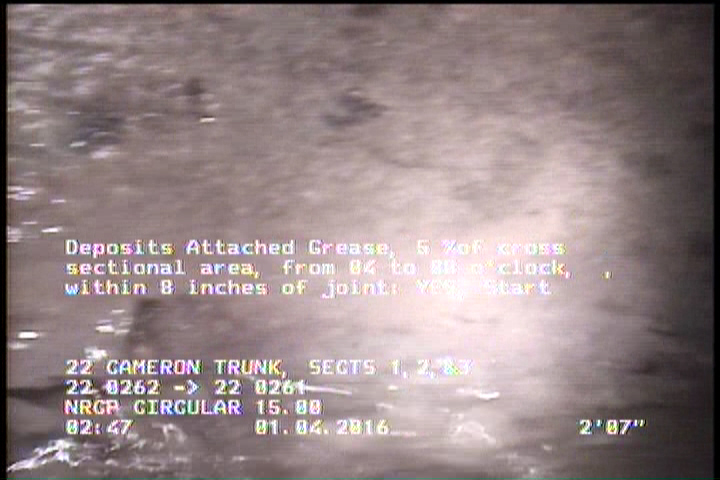

2.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

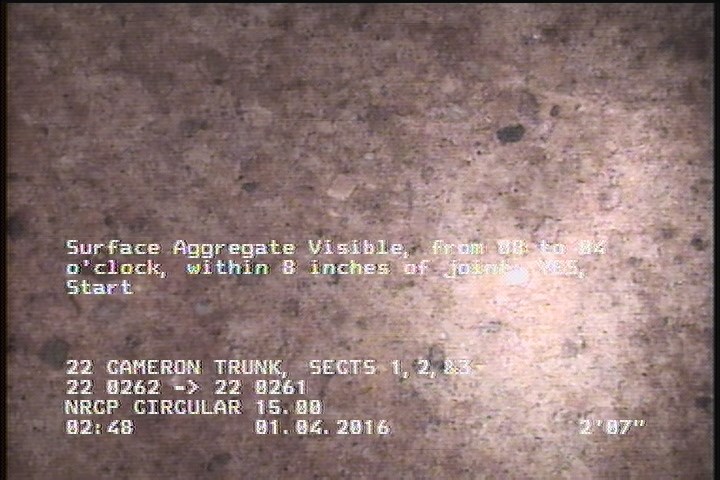

2.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

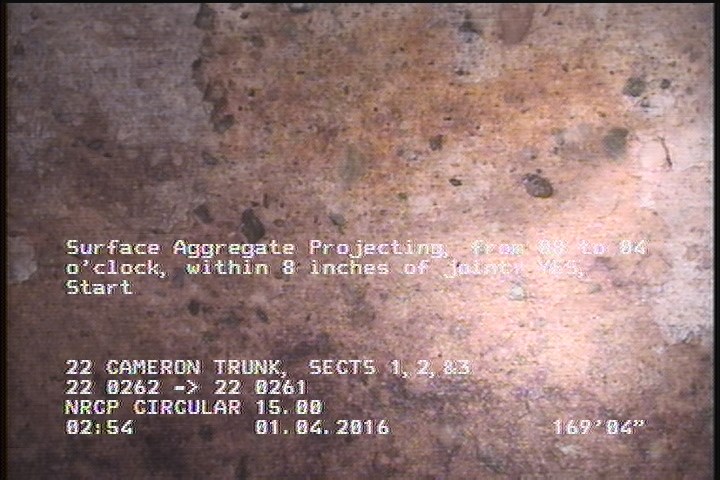

169.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

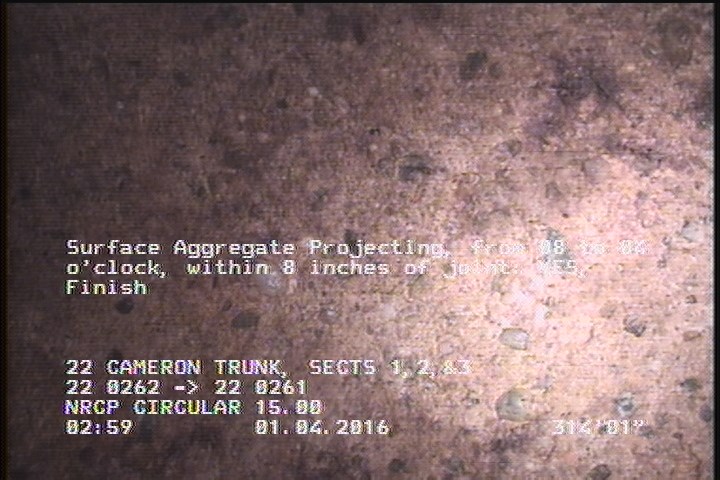

314.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish
Observations (23)
| Distance | Code | Observation |
|---|---|---|
| 2.6 | MGO | MAGNESIUM H.O. START |
| 212.9 | TFC | — |
| 61.2 | TFC | — |
| 0 | MGO | LATERAL AT MH 9 O'CLOCK ACTIVE |
| 314.1 | SAP | — |
| 169.4 | SAV | — |
| 0 | MWM | — |
| 316.8 | MGO | LATERAL AT MH 9 O'CLOCK ACTIVE |
| 231.3 | TFC | — |
| 0 | MWL | — |
| 2.6 | DAGS | — |
| 161.4 | TFC | — |
| 0 | AMH | 22 0262 |
| 12 | TF | — |
| 109.5 | TFC | — |
| 2.6 | SAV | — |
| 169.4 | SAP | — |
| 314.1 | DAGS | — |
| 314.1 | MGO | MAGNESIUM H.O. FINISH |
| 212.9 | VC | — |
| 261 | TFC | — |
| 106.1 | TFC | — |
| 316.8 | AMH | 22 0261 |
Properties (5)
- additional_info
- SC224615
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-04T02:43:24-08:00
- sewer_category
- GRAVITY
