Wastewater/Activity/PacpInspection/1.0Dec 31, 2015, 10:08 AM
22 0268_22 0267A_20151231_032755.mp4
- Date
- 12/31/2015
- W/O
- 547395
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00793
- PipeID
- P16552
- Time
- 2:08 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3022
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_547395_TV22016_JAN2016
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 22 0268
- Downstream MH
- 22 0267A
- Dir. of Survey
- Downstream
- Length Surveyed
- 126.2 ft.
- Total Length
- 126.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

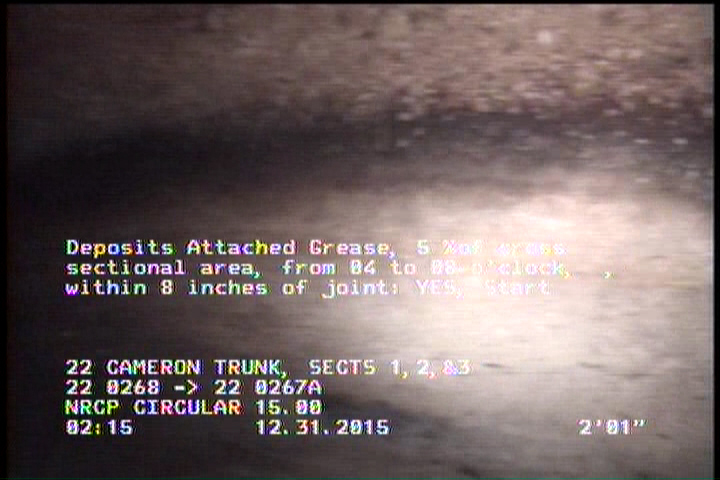

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

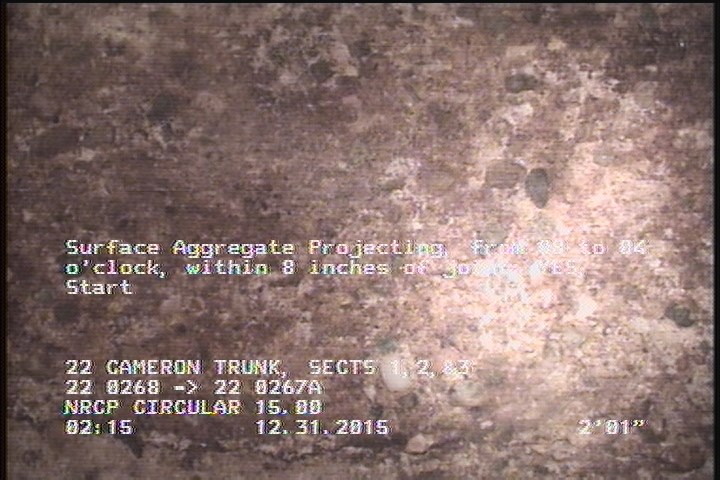

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

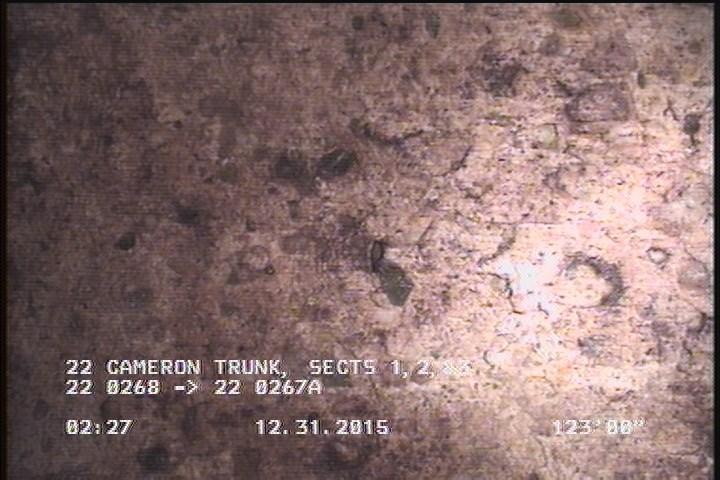

123 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 43.7 | TFC | — |
| 123 | DAGS | — |
| 19.2 | TFC | — |
| 123 | MGO | MAGNESIUM H.O. FINISH |
| 2.1 | DAGS | — |
| 68.4 | TFC | — |
| 126.2 | MGO | LATERAL AT MH 9 O'CLOCK ACTIVE |
| 0.2 | MGO | LATERAL AT MH 3 O'CLOCK ACTIVE |
| 93.7 | TFC | — |
| 126.2 | AMH | 22 0267A |
| 19.2 | VC | — |
| 117.6 | TFC | — |
| 0 | AMH | 22 0268 |
| 2.1 | MGO | MAGNESIUM H.O. START |
| 123 | SAP | — |
| 2.1 | SAP | — |
Properties (5)
- additional_info
- SC224614
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2015-12-31T02:08:48-08:00
- sewer_category
- GRAVITY
