Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 30, 2015, 09:28 AM

  • 22 0293_22 0292_20151230_014920.mp4

Date
12/30/2015
W/O
547382
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16579
Time
1:28 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3020
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
32
Purpose
Routine Assessment
Project
WO_547382_TV22014_JAN2016
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
22 0292
Downstream MH
22 0293
Dir. of Survey
Upstream
Length Surveyed
351.4 ft.
Total Length
351.4 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 22 0292 to 22 0293
MH: 22 0292MH: 22 0293upstream0 ft. MGO - General Observation - LATERAL AT MH 9 O'CLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Ends - 22 02932.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.5 ft. MGO - General Observation - MAGNESIUM H.O. FINISH2.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish65.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"73.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"138.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"142.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"219.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"223.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"232.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"348.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start348.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start348.8 ft. MGO - General Observation - MAGNESIUM H.O. START351.4 ft. MWL - Water Level, 5 %of cross sectional area351.4 ft. MWM - Water Mark, 10 %of cross sectional area351.4 ft. MGO - General Observation - LATERAL AT MH 9 O'CLOCK ACTIVE351.4 ft. VC - Vermin Cockroach351.4 ft. AMH - Downstream Manhole, Survey Begins - 22 0292

Observation photos (2)

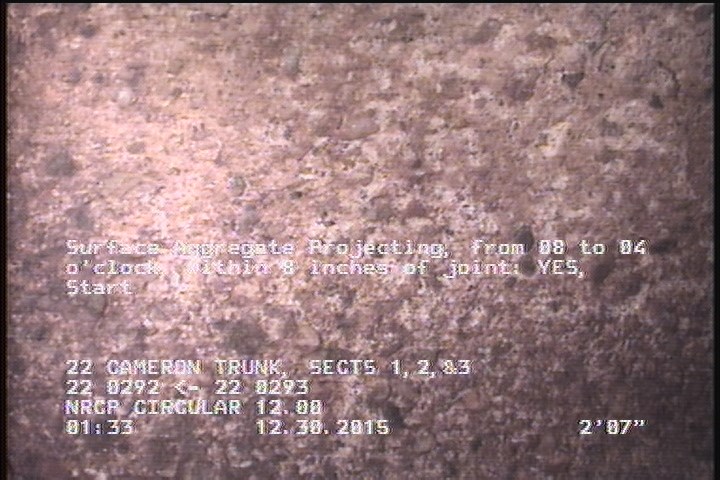

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

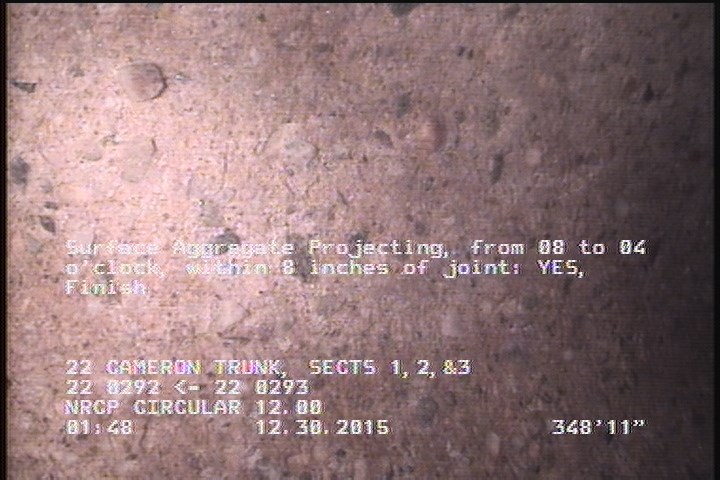

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    348.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

All inspections of P16579Work order 547382

Observations (20)

DistanceCodeObservation
348.9SAP—
0MWL—
119.3TFC—
351.4MGOLATERAL AT MH 9 O'CLOCK ACTIVE
208.8TFA—
131.8TFA—
212.6TFA—
0MWM—
0MGOLATERAL AT MH 9 O'CLOCK ACTIVE
348.9MGOMAGNESIUM H.O. FINISH
351.4AMH22 0293
0VC—
286TFA—
2.6DAGS—
348.9DAGS—
2.6SAP—
127.6TFA—
277.9TFA—
2.6MGOMAGNESIUM H.O. START
0AMH22 0292

Properties (5)

additional_info
SC224612
custom_field_two
3
customer
LACSD
datetime
2015-12-30T01:28:54-08:00
sewer_category
GRAVITY
