Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 30, 2015, 06:29 AM

  • 22 0296_22 0295_20151229_222011.mp4

Date
12/29/2015
W/O
547382
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16582
Time
10:29 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3020
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
32
Purpose
Routine Assessment
Project
WO_547382_TV22014_JAN2016
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
22 0296
Downstream MH
22 0295
Dir. of Survey
Downstream
Length Surveyed
313.4 ft.
Total Length
313.4 ft.
Structural Index
4
Structural Quick
4F3B
Structural Rating
193
O&M Index
2
O&M Quick
2212
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
199
Pipe schematic from manhole 22 0296 to 22 0295
MH: 22 0296MH: 22 0295downstream0 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK ACTIVE0 ft. VC - Vermin Cockroach0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 02960 ft. MGO - General Observation - CORRECTION SHOULD BE MAGNESIUM COATING AND SURFACE AGGREGATE PROJECTING2.1 ft. MGO - General Observation - MAGNESIUM H.O. START2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start43.3 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"55.7 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"60 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start60 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish124.7 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"126.7 ft. SSS - Surface Spalling, from 08 to 12 o'clock, within 8 inches of joint: YES133.4 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start133.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish177.7 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"230.8 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"259.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"309.8 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish309.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish313.3 ft. MGO - General Observation - MAGNESIUM H.O. FINISH313.4 ft. AMH - Downstream Manhole, Survey Ends - 22 0295313.4 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK ACTIVE313.4 ft. VC - Vermin Cockroach

Observation photos (2)

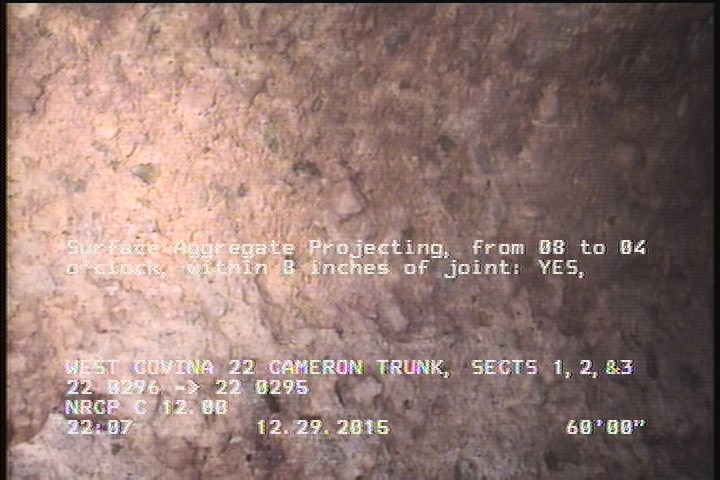

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    60 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

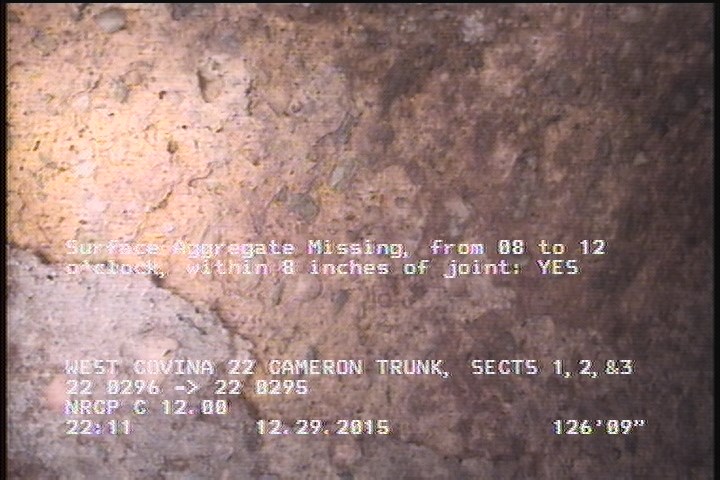

  • Surface Spalling, from 08 to 12 o'clock, within 8 inches of joint: YES

    126.7 ft. - Surface Spalling, from 08 to 12 o'clock, within 8 inches of joint: YES

All inspections of P16582Work order 547382

Observations (26)

DistanceCodeObservation
60SAP—
177.7TFA—
55.7TFA—
60SAV—
313.4AMH22 0295
0MGOLATERAL AT MH 3 O'CLOCK ACTIVE
133.4SAM—
309.8SAM—
313.3MGOMAGNESIUM H.O. FINISH
230.8TFA—
0VC—
313.4MGOLATERAL AT MH 3 O'CLOCK ACTIVE
0MWL—
0MWM—
313.4VC—
43.3TFC—
126.7SSS—
309.8DAGS—
0AMH22 0296
124.7TFA—
2.1MGOMAGNESIUM H.O. START
2.1DAGS—
259.2TFC—
133.4SAP—
2.1SAV—
0MGOCORRECTION SHOULD BE MAGNESIUM COATING AND SURFACE AGGREGATE PROJECTING

Properties (5)

additional_info
SC224612
custom_field_two
2
customer
LACSD
datetime
2015-12-29T22:29:32-08:00
sewer_category
GRAVITY
