Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 31, 2015, 09:11 AM

  • 22 0278_22 0277_20151231_012525.mp4

Date
12/31/2015
W/O
547382
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16564
Time
1:11 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3021
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_547382_TV22014_JAN2016
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0278
Downstream MH
22 0277
Dir. of Survey
Downstream
Length Surveyed
157.3 ft.
Total Length
157.3 ft.
Structural Index
4
Structural Quick
4131
Structural Rating
7
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 22 0278 to 22 0277
MH: 22 0278MH: 22 0277downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 02780 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK MADE DEBRIS INSIDE SEVERE0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - MAGNESIUM H.O. START2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES26.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"73.5 ft. LL - Alignment Left, 5 %153.9 ft. MGO - General Observation - MAGNESIUM H.O. FINISH153.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish153.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish157.2 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK ACTIVE157.3 ft. AMH - Downstream Manhole, Survey Ends - 22 0277

Observation photos (3)

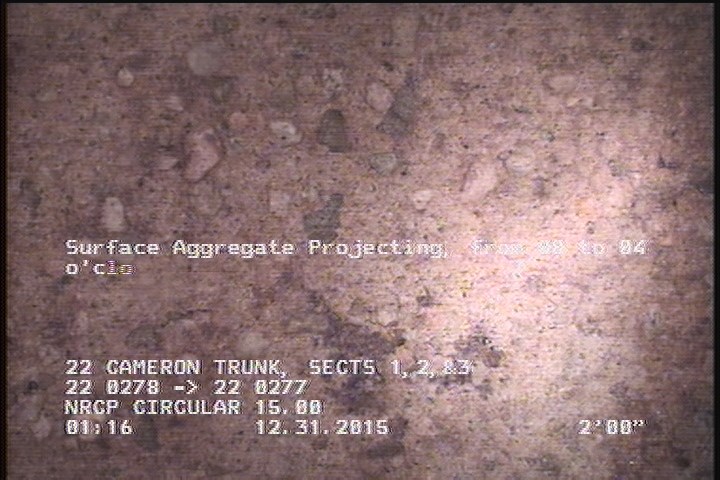

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

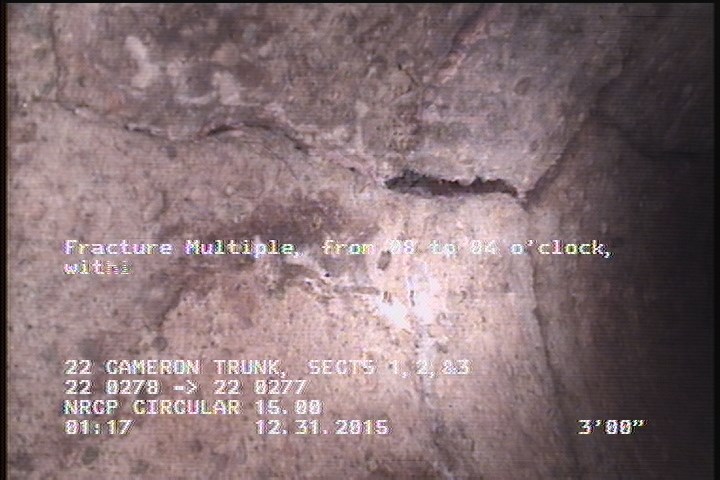

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    3 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

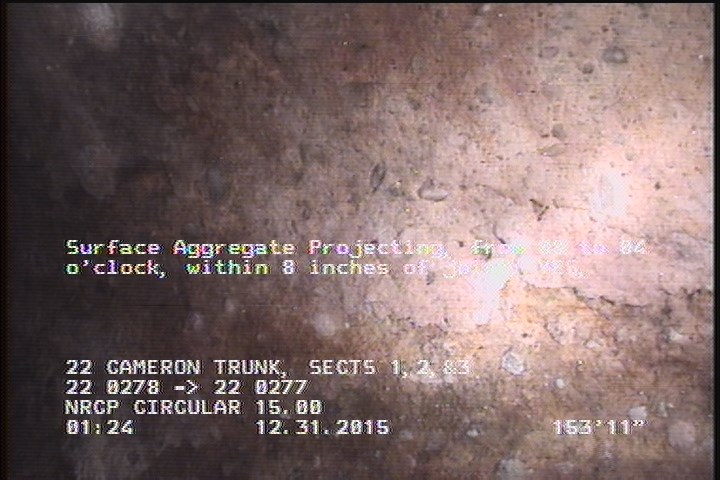

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    153.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

All inspections of P16564Work order 547382

Observations (15)

DistanceCodeObservation
2MGOMAGNESIUM H.O. START
157.2MGOLATERAL AT MH 3 O'CLOCK ACTIVE
2SAP—
153.9MGOMAGNESIUM H.O. FINISH
0AMH22 0278
0MWM—
26.7TFC—
0MGOLATERAL AT MH 3 O'CLOCK MADE DEBRIS INSIDE SEVERE
153.9DAGS—
3FM—
157.3AMH22 0277
73.5LL—
0MWL—
2DAGS—
153.9SAP—

Properties (5)

additional_info
SC224613
custom_field_two
2
customer
LACSD
datetime
2015-12-31T01:11:16-08:00
sewer_category
GRAVITY
