Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 2, 2016, 10:50 AM

  • 02 1466_02 1465 _20160802_050912.mp4

Date
08/02/2016
W/O
585991
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00309
PipeID
P03910
Time
3:50 AM
Certificate
507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3670
Sewer Name
02 UNION PACIFIC TRUNK
City
COMMERCE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
17
Purpose
Routine Assessment
Project
WO_585991_TV02189_AUG2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 1466
Downstream MH
02 1465
Dir. of Survey
Downstream
Length Surveyed
331.5 ft.
Total Length
331.5 ft.
Structural Index
2
Structural Quick
3111
Structural Rating
4
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 02 1466 to 02 1465
MH: 02 1466MH: 02 1465downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 14660 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT THE MH O'CLOCK ACTIVE0 ft. MGO - General Observation - CONNECTION AT THE MH O'CLOCK ACTIVE7.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start12.3 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start82.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"85.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"106.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"114.8 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish126.4 ft. CC - Crack Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES128.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"131 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"158.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"177 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"185.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"207 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"222.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"234.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"259.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"261.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"275.6 ft. CM - Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES286.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"289 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"310.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"313.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"328.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish331.5 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK ACTIVE331.5 ft. AMH - Downstream Manhole, Survey Ends - 02 1465

Observation photos (3)

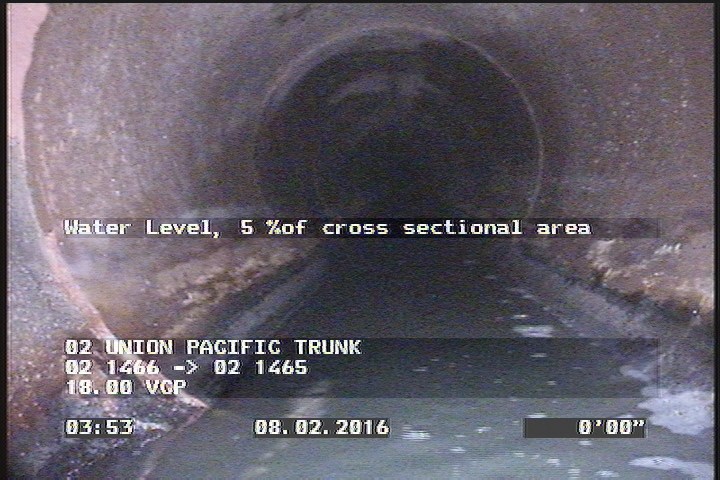

  • Water Level, 5 %of cross sectional area

    0 ft. - Water Level, 5 %of cross sectional area

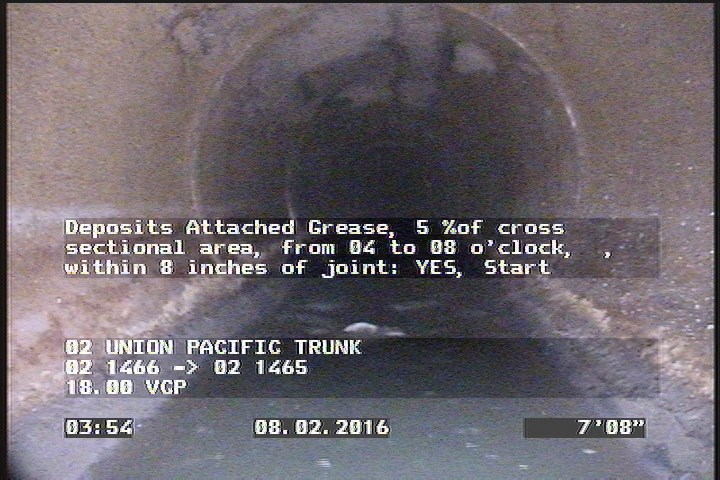

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    7.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

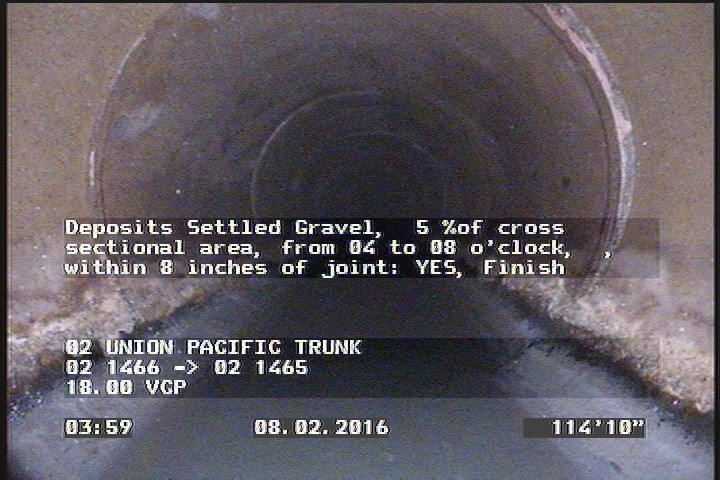

  • Deposits Settled Gravel, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

    114.8 ft. - Deposits Settled Gravel, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

All inspections of P03910Work order 585991

Observations (30)

DistanceCodeObservation
0AMH02 1466
331.5MGOCONNECTION AT THE MH 9 O'CLOCK ACTIVE
0MWL—
7.7DAGS—
128.2TFC—
275.6CM—
185.8TFC—
289TFC—
331.5AMH02 1465
126.4CC—
313.1TFC—
0MWM—
261.8TF—
234.8TFC—
106.7TFC—
177TF—
207TFC—
114.8DSGV—
85.3TFC—
158.5TFC—
12.3DSGV—
286.8TFC—
82.4TFC—
328.7DAGS—
0MGOCONNECTION AT THE MH O'CLOCK ACTIVE
310.5TF—
131TFC—
0MGOCONNECTION AT THE MH O'CLOCK ACTIVE
259.1TFC—
222.5TF—

Properties (5)

additional_info
SC305550
custom_field_two
4
customer
LACSD
datetime
2016-08-02T03:50:21-07:00
sewer_category
Gravity
