Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 3, 2016, 05:19 AM

  • 02 1463_02 1462 _20160802_233857.mp4

Date
08/02/2016
W/O
585991
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00309
PipeID
P04630
Time
10:19 PM
Certificate
507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3671
Sewer Name
02 UNION PACIFIC TRUNK
City
COMMERCE, CA
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
17
Purpose
Routine Assessment
Project
WO_585991_TV02189_AUG2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 1463
Downstream MH
02 1462
Dir. of Survey
Downstream
Length Surveyed
315.8 ft.
Total Length
315.8 ft.
Structural Index
2
Structural Quick
2211
Structural Rating
5
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 02 1463 to 02 1462
MH: 02 1463MH: 02 1462downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 02 14633.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start21.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"23.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"33.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4"46.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"48.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"53.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start74.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"75.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"98.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"102.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"122.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"126 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"131.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish149.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"152.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"171.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4", 4"174.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"198.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"202 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"222.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"225.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"241.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start263 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish278.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"280.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"288.5 ft. CC - Crack Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES312.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish315.8 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK ACTIVE315.8 ft. AMH - Downstream Manhole, Survey Ends - 02 1462

Observation photos (4)

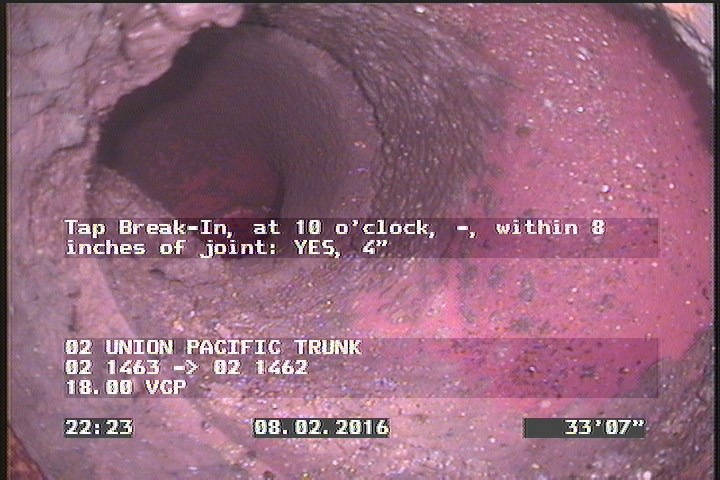

  • Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4"

    33.6 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4"

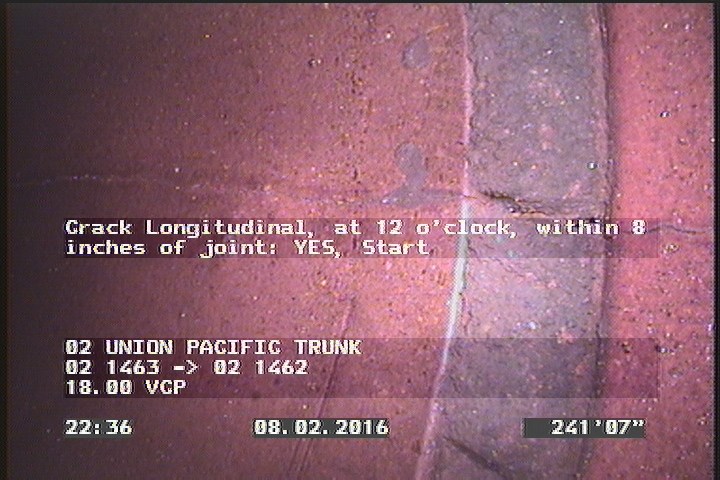

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    241.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

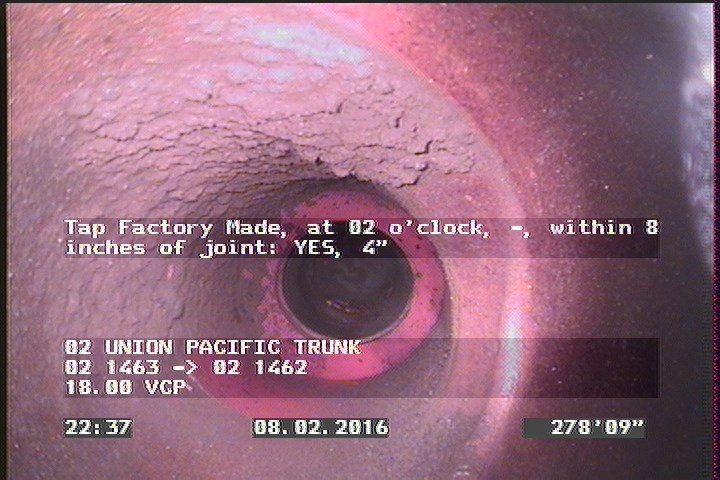

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"

    278.7 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"

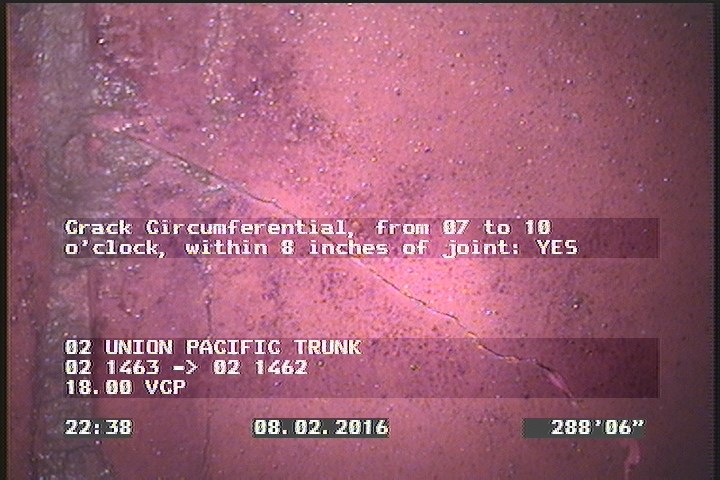

  • Crack Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES

    288.5 ft. - Crack Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES

All inspections of P04630Work order 585991

Observations (34)

DistanceCodeObservation
315.8MGOCONNECTION AT THE MH 9 O'CLOCK ACTIVE
75.3TFC—
0MWL—
102.5TFC—
263CL—
74.9TFC—
3.4DAGS—
23.2TFC—
288.5CC—
0MWM—
149.7TFC—
241.6CL—
98.7TFC—
131.9CL—
152.4TFC—
126TFA—
171.2TFA—
0MGOCONNECTION AT THE MH 3 O'CLOCK ACTIVE
174.1TFA—
122.4TFC—
48.7TF—
198.3TFC—
225.4TFA—
33.6TB—
315.8AMH02 1462
53.8CL—
280.9TFC—
46.2TFC—
21.3TFC—
222.9TF—
0AMH02 1463
312.1DAGS—
202TFC—
278.7TF—

Properties (5)

additional_info
SC306001
custom_field_two
3
customer
LACSD
datetime
2016-08-02T22:19:00-07:00
sewer_category
Gravity
