Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 3, 2016, 04:55 AM

  • 02 1464_02 1463 _20160802_231517.mp4

Date
08/02/2016
W/O
585991
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00309
PipeID
P03908
Time
9:55 PM
Certificate
507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3671
Sewer Name
02 UNION PACIFIC TRUNK
City
COMMERCE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
17
Purpose
Routine Assessment
Project
WO_585991_TV02189_AUG2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 1464
Downstream MH
02 1463
Dir. of Survey
Downstream
Length Surveyed
316.1 ft.
Total Length
316.1 ft.
Structural Index
2
Structural Quick
2400
Structural Rating
8
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 02 1464 to 02 1463
MH: 02 1464MH: 02 1463downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 14642 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start83.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"83.8 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Start85.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"88.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start107.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"110.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"138.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"142.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"144.9 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Finish144.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish159.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"162.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"181.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"184.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"204.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start208.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"211.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"224.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish239.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"239.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"262 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"263 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"272.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start286.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"287.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"294.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish308.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"311.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"311.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Finish316.1 ft. AMH - Downstream Manhole, Survey Ends - 02 1463

Observation photos (3)

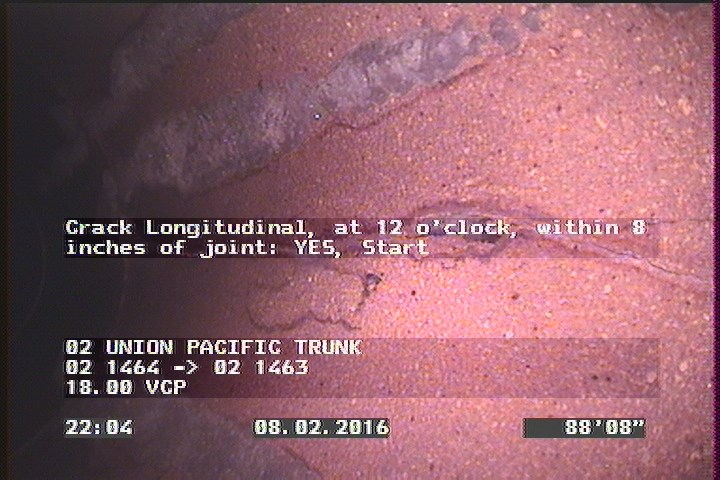

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    88.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

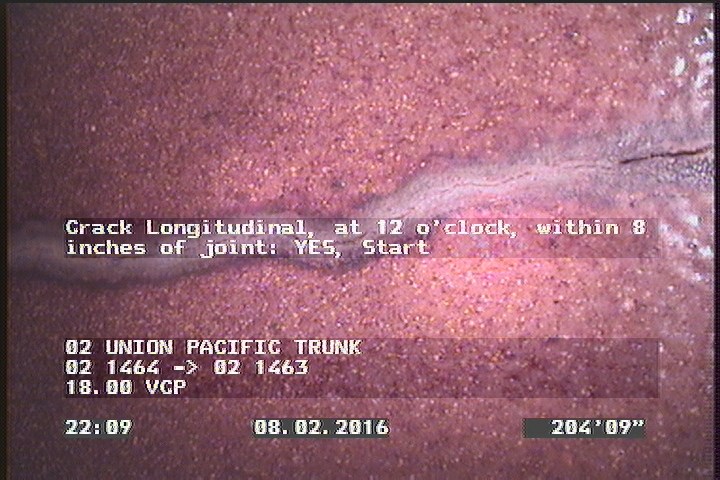

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    204.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    272.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P03908Work order 585991

Observations (34)

DistanceCodeObservation
83.8TFC—
142.7TFC—
0MWM—
144.9CL—
162.6TFC—
263TFC—
224.6CL—
294.5CL—
138.4TFC—
181.3TFC—
159.7TFC—
0MWL—
211.8TFC—
262TFC—
311.8TFC—
287.2TFC—
144.9CL—
85.8TF—
107.7TFC—
239.6TFC—
204.7CL—
308.8TFC—
110.6TFC—
2DAGS—
311.8DAGS—
316.1AMH02 1463
239.6TFC—
272.7CL—
0AMH02 1464
208.3TFC—
184.8TFC—
83.8CL—
286.8TFA—
88.7CL—

Properties (5)

additional_info
SC306001
custom_field_two
3
customer
LACSD
datetime
2016-08-02T21:55:00-07:00
sewer_category
Gravity
