Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2016, 09:07 AM

  • 03 0141_03 0140_20160830_032132.mp4

Date
08/30/2016
W/O
579967
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00363
PipeID
P04758
Time
2:07 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3693
Sewer Name
03 LAKEWOOD TRUNK
City
LAKEWOOD, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
08
Purpose
Routine Assessment
Project
WO_579967_TV03005_AUG2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
03 0141
Downstream MH
03 0140
Dir. of Survey
Downstream
Length Surveyed
355 ft.
Total Length
355 ft.
Structural Index
3
Structural Quick
3421
Structural Rating
14
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 03 0141 to 03 0140
MH: 03 0141MH: 03 0140downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 03 01410 ft. MWL - Water Level, 10 %of cross sectional area3.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start90.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES94.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start273.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish280.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES285.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES301.1 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES349.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish355 ft. AMH - Downstream Manhole, Survey Ends - 03 0140355 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE

Observation photos (6)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

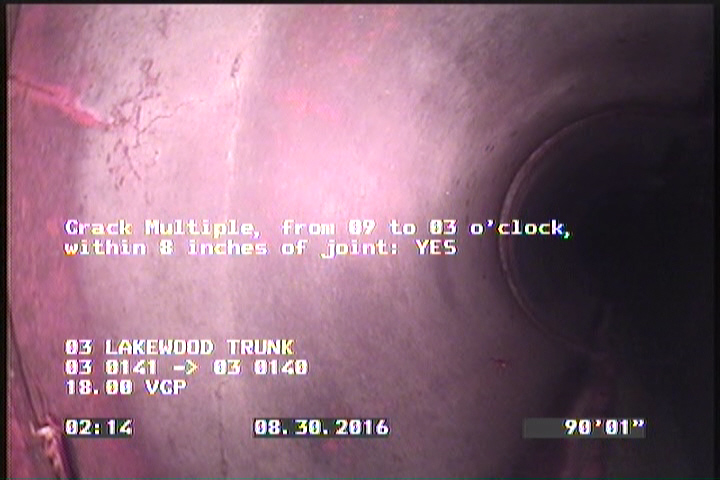

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    90.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

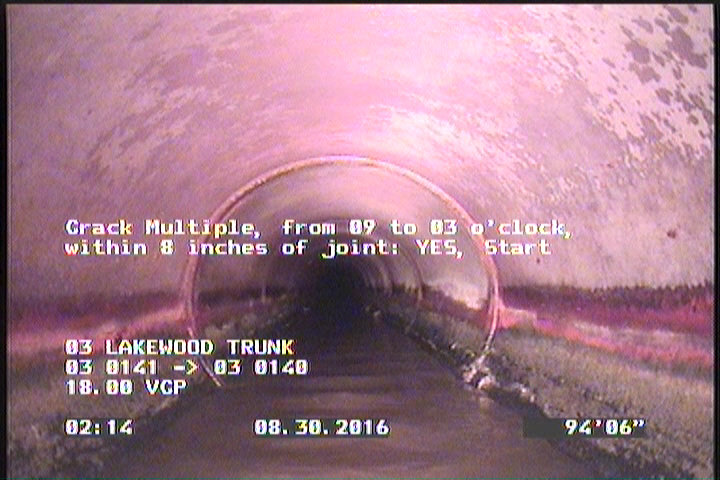

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    94.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

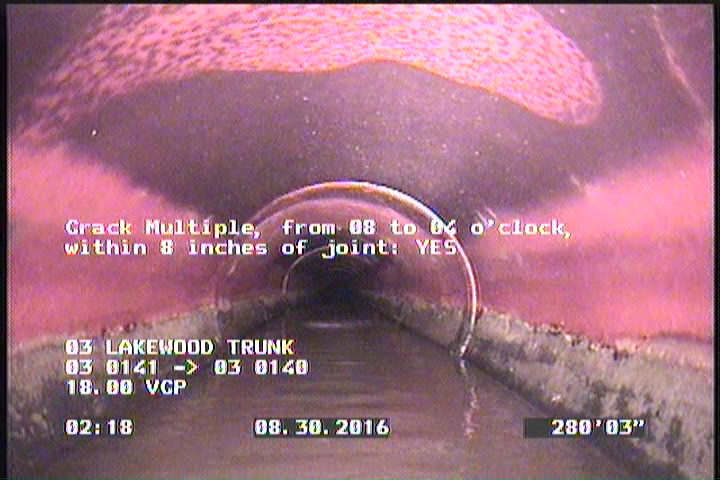

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    280.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    285.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

    301.1 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

All inspections of P04758Work order 579967

Observations (13)

DistanceCodeObservation
349.2DAGS—
0MWM—
3.5DAGS—
273.1CM—
0AMH03 0141
285.2CL—
0MWL—
355AMH03 0140
90.1CM—
94.5CM—
280.2CM—
301.1CM—
355MGOCONNECTION AT THE MH 3 O'CLOCK ACTIVE

Properties (5)

additional_info
SC306023
custom_field_two
3
customer
LACSD
datetime
2016-08-30T02:07:00-07:00
sewer_category
Gravity
