Wastewater/Activity/PacpInspection/1.0Aug 29, 2016, 08:40 AM
03 0155_03 0154 _20160829_025431.mp4
- Date
- 08/29/2016
- W/O
- 579967
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00363
- PipeID
- P04772
- Time
- 1:40 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3692
- Sewer Name
- 03 LAKEWOOD TRUNK
- City
- LAKEWOOD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_579967_TV03005_AUG2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 03 0155
- Downstream MH
- 03 0154
- Dir. of Survey
- Downstream
- Length Surveyed
- 375.3 ft.
- Total Length
- 375.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

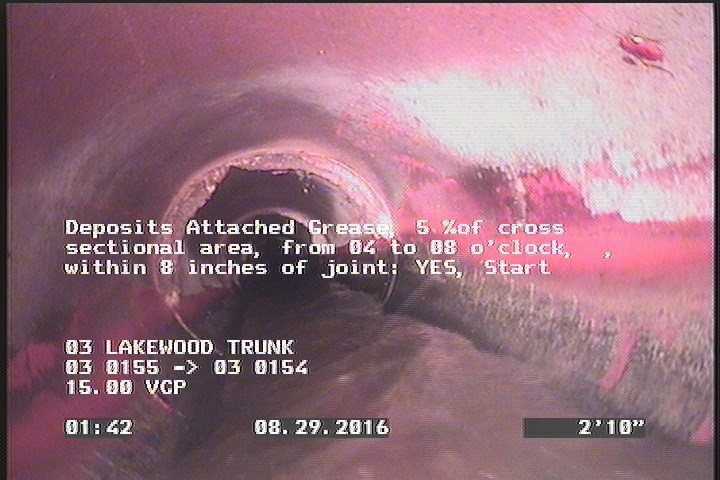

2.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

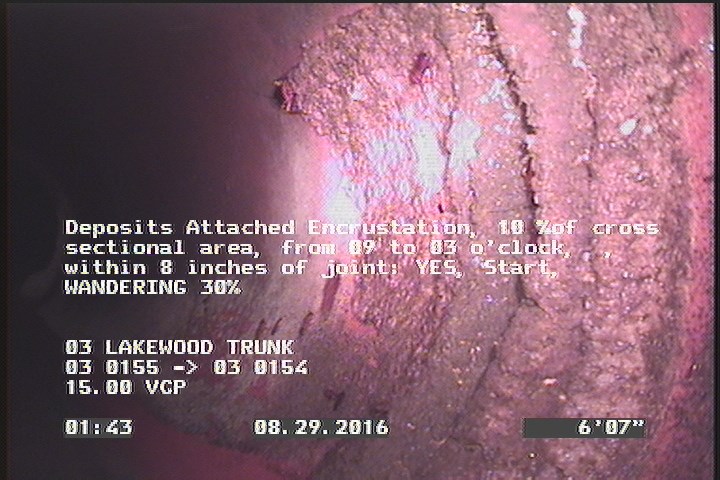

6.6 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start - WANDERING 30%
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 03 0155 |
| 6.6 | DAE | WANDERING 30% |
| 0 | MWL | — |
| 372.4 | DAE | — |
| 372.4 | DAGS | — |
| 375.3 | AMH | 03 0154 |
| 2.8 | DAGS | — |
Properties (5)
- additional_info
- SC306022
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-29T01:40:17-07:00
- sewer_category
- Gravity
