Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 28, 2015, 11:43 AM

  • 21 1063_21 1062_20151228_041311.mp4

Date
12/28/2015
W/O
547133
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00769
PipeID
P16188
Time
3:43 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3018
Sewer Name
21 GAREY AVENUE TRUNK
City
POMONA
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
06
Purpose
Routine Assessment
Project
WO_547133_TV21036_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
21 1062
Downstream MH
21 1063
Dir. of Survey
Upstream
Length Surveyed
400.7 ft.
Total Length
400.7 ft.
Structural Index
2
Structural Quick
2311
Structural Rating
7
O&M Index
2
O&M Quick
2411
O&M Rating
9
Overall Index
2
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 21 1062 to 21 1063
MH: 21 1062MH: 21 1063upstream0 ft. AMH - Upstream Manhole, Survey Ends - 21 10633.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish35.8 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES48.3 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 4" - ROOTS INSIDE70.4 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES74.3 ft. CC - Crack Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES106.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"165.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"228.3 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 4" - ROOTS INSDIE291.1 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 4" - ROOTS INSIDE350 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"367.9 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES368.9 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"398.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start400.7 ft. AMH - Downstream Manhole, Survey Begins - 21 1062400.7 ft. MWM - Water Mark, 15 %of cross sectional area400.7 ft. VC - Vermin Cockroach400.7 ft. MGO - General Observation - LATERAL AT MH 3 O'CLOCK ACTIVE400.7 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (4)

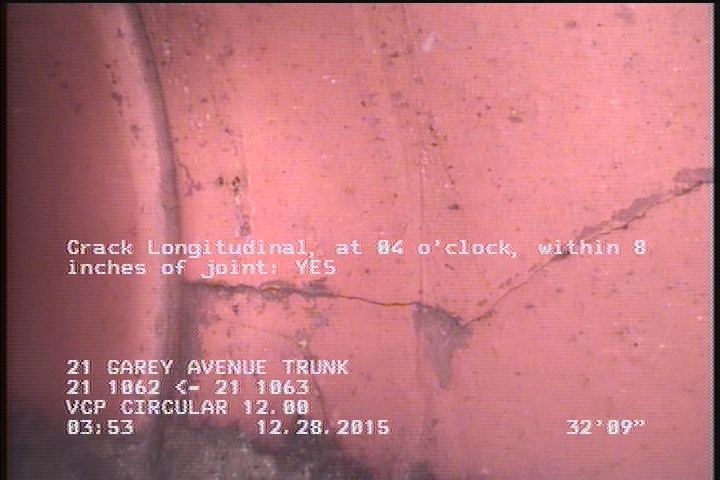

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    32.8 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

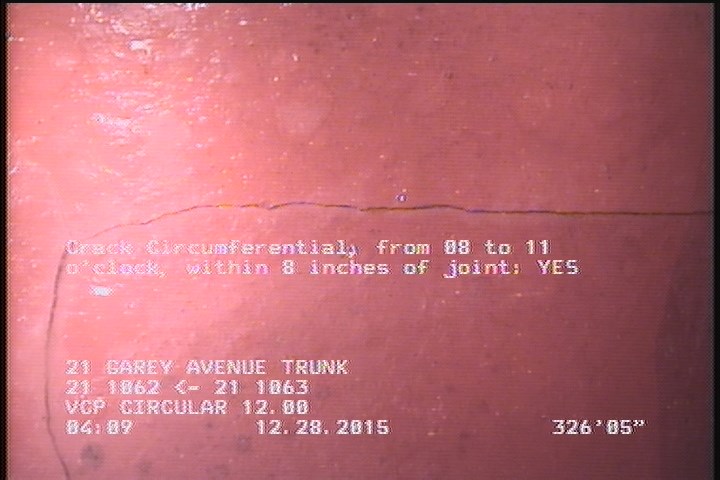

  • Crack Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES

    326.4 ft. - Crack Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES

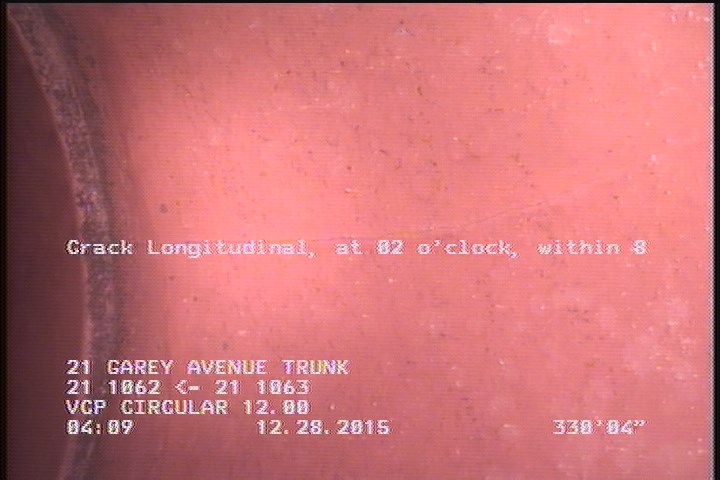

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    330.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

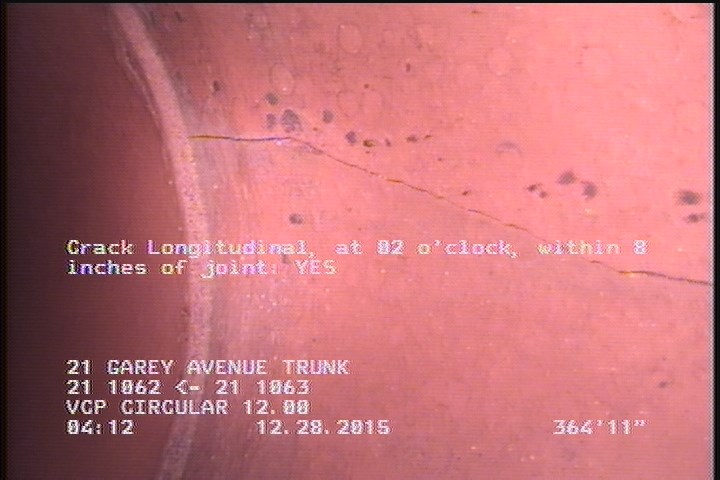

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    364.9 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

All inspections of P16188Work order 547133

Observations (19)

DistanceCodeObservation
400.7AMH21 1063
330.3CL—
109.6TFDROOTS INSIDE
31.8TBA—
352.4TFDROOTS INSIDE
2.1DAGS—
234.9TFA—
32.8CL—
397.3DAGS—
50.7TFC—
364.9CL—
326.4CC—
0AMH21 1062
294.1TFA—
0MWM—
172.4TFDROOTS INSDIE
0VC—
0MGOLATERAL AT MH 3 O'CLOCK ACTIVE
0MWL—

Properties (5)

additional_info
SC224610
custom_field_two
3
customer
LACSD
datetime
2015-12-28T03:43:18-08:00
sewer_category
GRAVITY
