Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 28, 2015, 10:32 AM

  • 21 1065_21 1064_20151228_025027.mp4

Date
12/28/2015
W/O
547133
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00769
PipeID
P16190
Time
2:32 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3018
Sewer Name
21 GAREY AVENUE TRUNK
City
POMONA
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
06
Purpose
Routine Assessment
Project
WO_547133_TV21036_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
21 1065
Downstream MH
21 1064
Dir. of Survey
Downstream
Length Surveyed
352.3 ft.
Total Length
352.3 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
11
O&M Index
2
O&M Quick
4124
O&M Rating
16
Overall Index
2
Overall Quick
—
Overall Rating
27
Pipe schematic from manhole 21 1065 to 21 1064
MH: 21 1065MH: 21 1064downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 21 10650 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. SAM - Surface Aggregate Missing, from 04 to 05 o'clock, within 8 inches of joint: YES0 ft. SAP - Surface Aggregate Projecting, from 04 to 08 o'clock, within 8 inches of joint: YES2.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start25.6 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 4" - ROOTS INSIDE89.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"152.6 ft. CM - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES158 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 4" - ROOTS INSIDE159.3 ft. RFJ - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES171.4 ft. RFJ - Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YES226 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"302.3 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 4" - ROOTS INSIDE340.6 ft. RFJ - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YES340.6 ft. RFJ - Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YES348.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish349 ft. CC - Crack Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES352.3 ft. AMH - Downstream Manhole, Survey Ends - 21 1064

Observation photos (3)

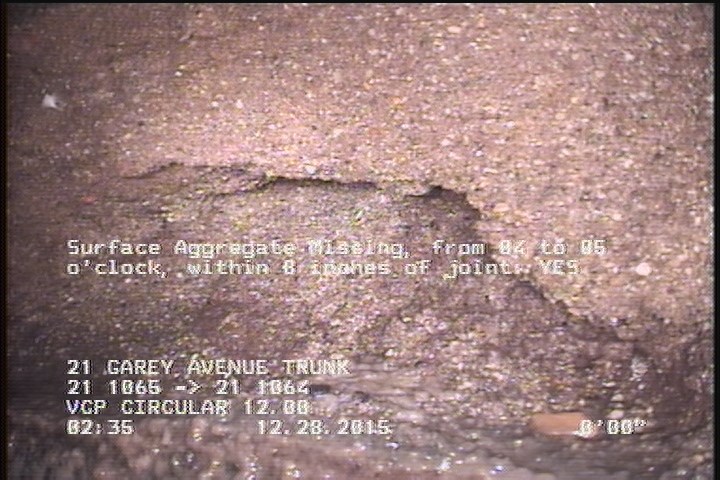

  • Surface Aggregate Missing, from 04 to 05 o'clock, within 8 inches of joint: YES

    0 ft. - Surface Aggregate Missing, from 04 to 05 o'clock, within 8 inches of joint: YES

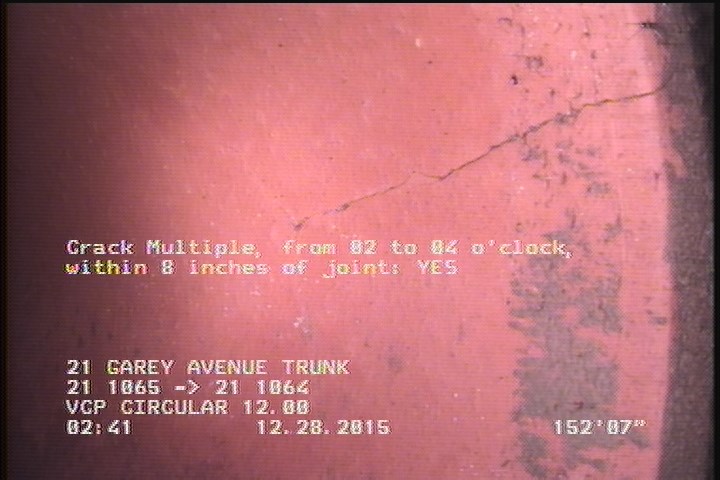

  • Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

    152.6 ft. - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

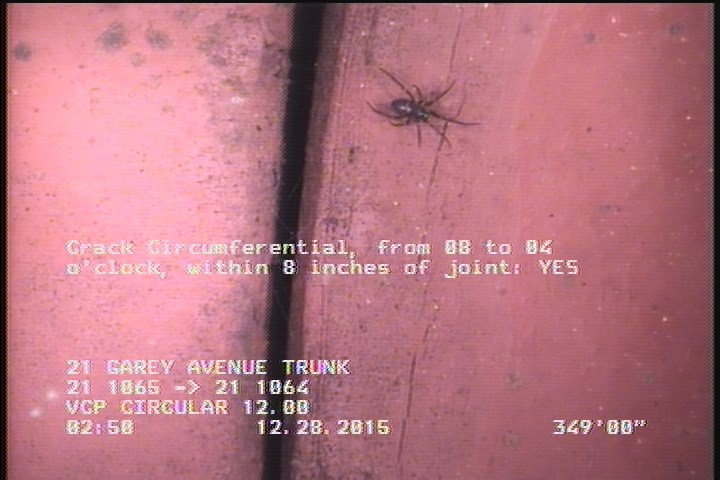

  • Crack Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES

    349 ft. - Crack Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P16190Work order 547133

Observations (19)

DistanceCodeObservation
152.6CM—
302.3TFDROOTS INSIDE
89.6TFA—
340.6RFJ—
226TFA—
159.3RFJ—
25.6TFDROOTS INSIDE
348.9DAGS—
0MWL—
352.3AMH21 1064
171.4RFJ—
0AMH21 1065
158TFDROOTS INSIDE
2.4DAGS—
340.6RFJ—
0MWM—
0SAM—
0SAP—
349CC—

Properties (5)

additional_info
SC224610
custom_field_two
4
customer
LACSD
datetime
2015-12-28T02:32:51-08:00
sewer_category
GRAVITY
