Wastewater/Activity/PacpInspection/1.0Jan 15, 2016, 10:55 AM
05 0716_05 0715_20160115_030651_.mp4
- Date
- 01/15/2016
- W/O
- 547108
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00521
- PipeID
- P05939
- Time
- 2:55 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3115
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
- City
- INGLEWOOD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_547108_TV05104_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 05 0716
- Downstream MH
- 05 0715
- Dir. of Survey
- Downstream
- Length Surveyed
- 366.2 ft.
- Total Length
- 366.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

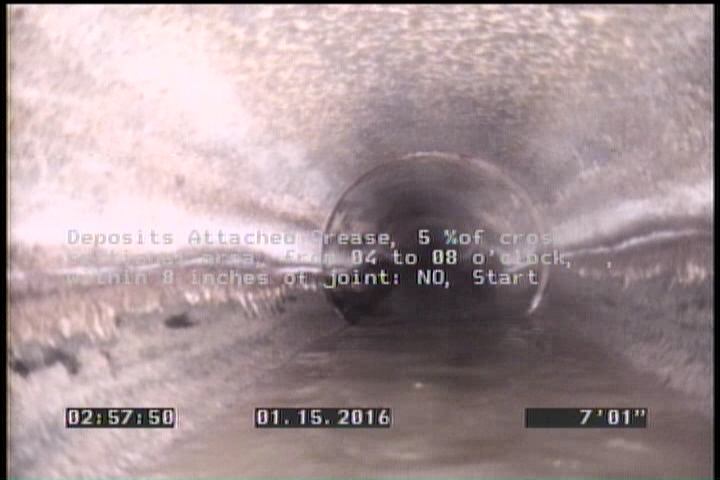

7.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

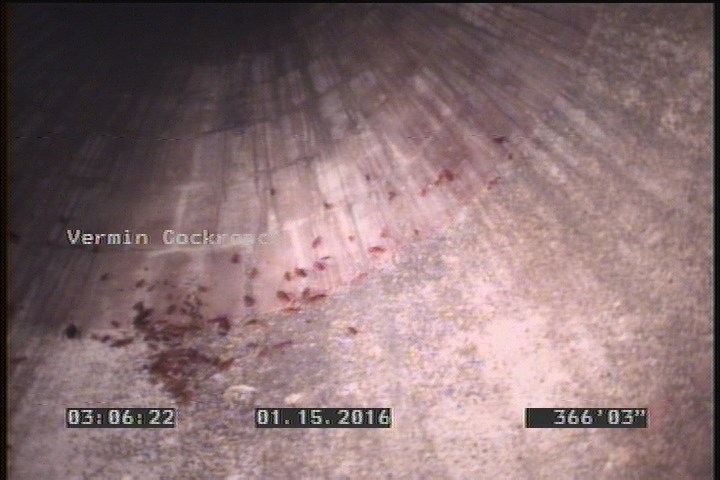

366.2 ft. - Vermin Cockroach
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 0716 |
| 0 | MGO | CONNECTION AT MH 3 OCLOCK |
| 0 | MWL | — |
| 7.1 | DAGS | — |
| 0 | MWM | — |
| 366.2 | VC | — |
| 366.2 | AMH | 05 0715 |
| 362.4 | DAGS | — |
Properties (4)
- additional_info
- SC224497
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-01-15T02:55:00-08:00
