Wastewater/Activity/PacpInspection/1.0Jan 13, 2016, 11:15 AM
05 0717_05 0716_20160113_033306_.mp4
- Date
- 01/13/2016
- W/O
- 547108
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00521
- PipeID
- P05940
- Time
- 3:15 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3113
- Sewer Name
- 05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
- City
- INGLEWOOD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_547108_TV05104_JAN2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 05 0717
- Downstream MH
- 05 0716
- Dir. of Survey
- Downstream
- Length Surveyed
- 316.3 ft.
- Total Length
- 316.3 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 4121
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (4)

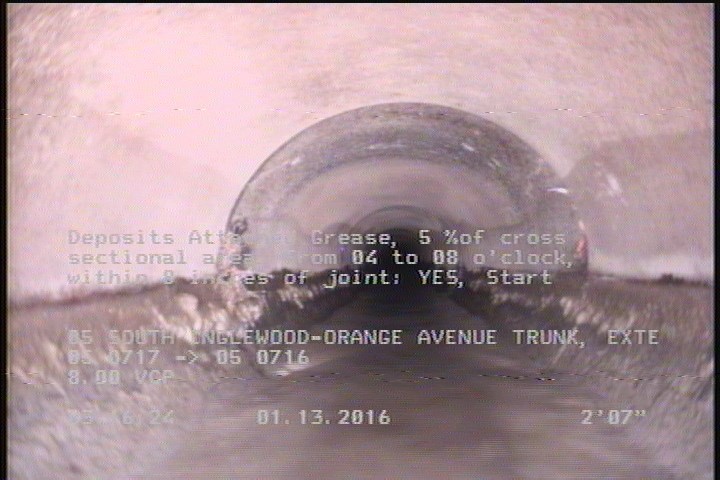

2.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

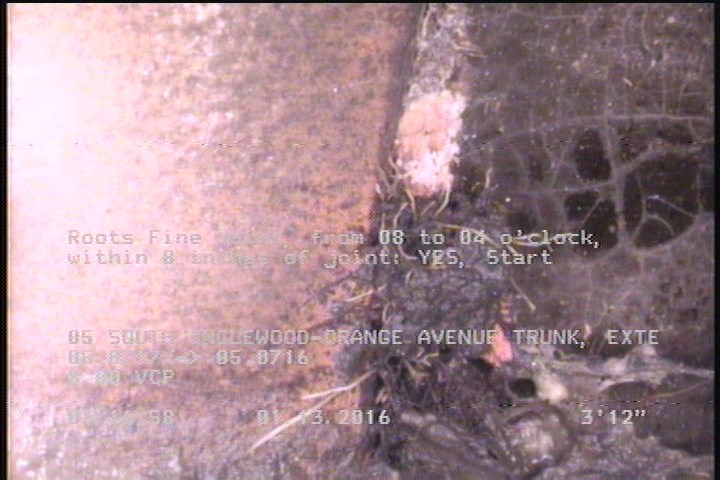

4 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

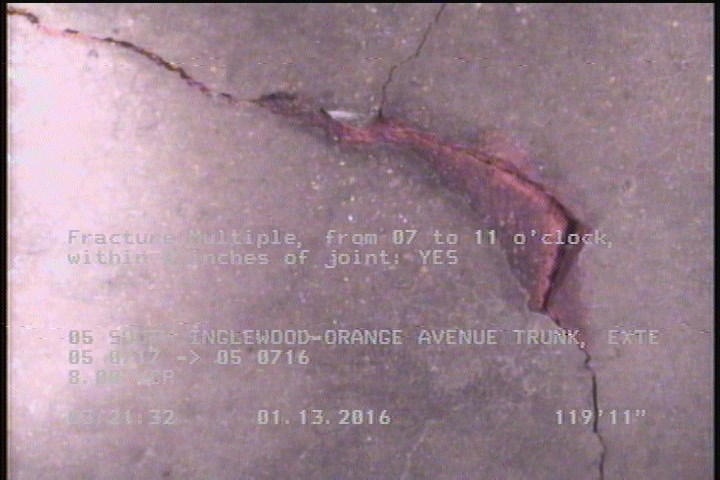

119.9 ft. - Fracture Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

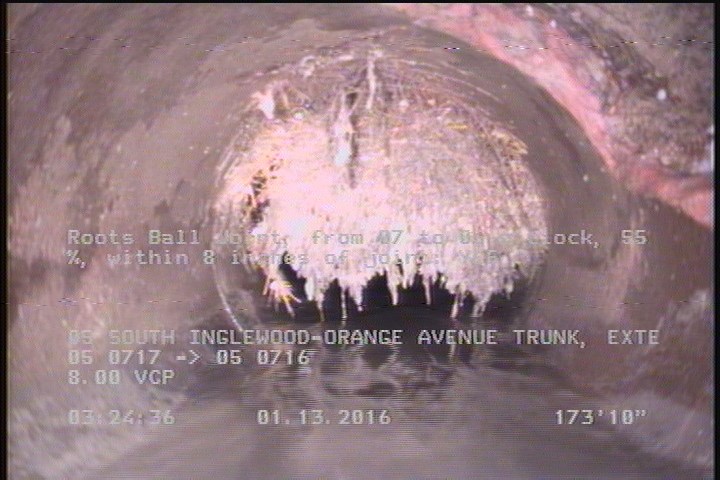

173.8 ft. - Roots Ball Joint, from 07 to 05 o'clock, 55 %, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 284.2 | RFJ | — |
| 119.9 | FM | — |
| 0 | MWL | — |
| 0 | AMH | 05 0717 |
| 173.8 | RBJ | — |
| 316.3 | MGO | CAPPED LAT |
| 316.3 | AMH | 05 0716 |
| 2.6 | DAGS | — |
| 173.5 | TBA | — |
| 312.4 | DAGS | — |
| 4 | RFJ | — |
Properties (4)
- additional_info
- SC224495
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-01-13T03:15:00-08:00
