Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 13, 2016, 10:39 AM

  • 05 0719_05 0718_20160113_025428_.mp4

Date
01/13/2016
W/O
547108
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00521
PipeID
P05942
Time
2:39 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3113
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #1
City
INGLEWOOD, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
07
Purpose
Routine Assessment
Project
WO_547108_TV05104_JAN2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 0719
Downstream MH
05 0718
Dir. of Survey
Downstream
Length Surveyed
315.9 ft.
Total Length
315.9 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
3121
O&M Rating
7
Overall Index
2
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 05 0719 to 05 0718
MH: 05 0719MH: 05 0718downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 07193.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start33.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start94.6 ft. RFJ - Roots Fine Joint, at 12 o'clock, within 8 inches of joint: NO124.6 ft. RFJ - Roots Fine Joint, from 03 to 05 o'clock, within 8 inches of joint: YES127.9 ft. RMJ - Roots Medium Joint, from 03 to 09 o'clock, 5 %, within 8 inches of joint: YESR, Start311.3 ft. RMJ - Roots Medium Joint, from 03 to 09 o'clock, 5 %, within 8 inches of joint: YESR, Finish311.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish311.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish315.9 ft. AMH - Downstream Manhole, Survey Ends - 05 0718

Observation photos (5)

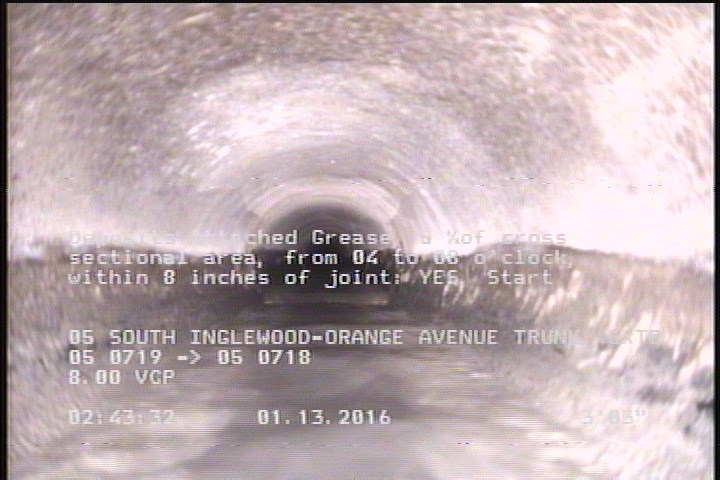

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

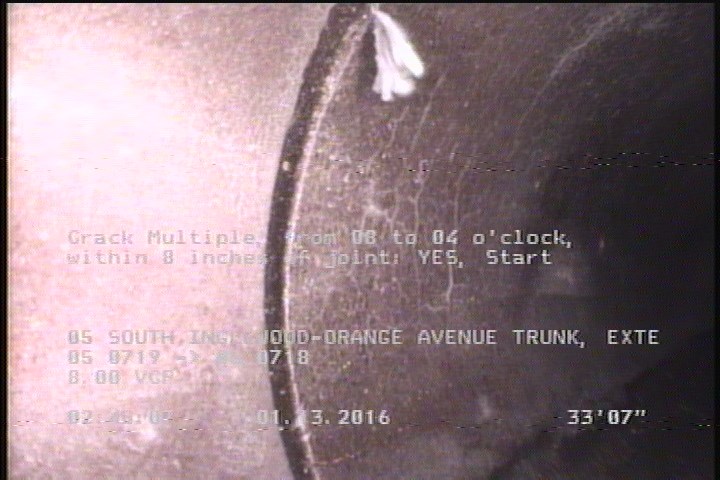

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    33.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

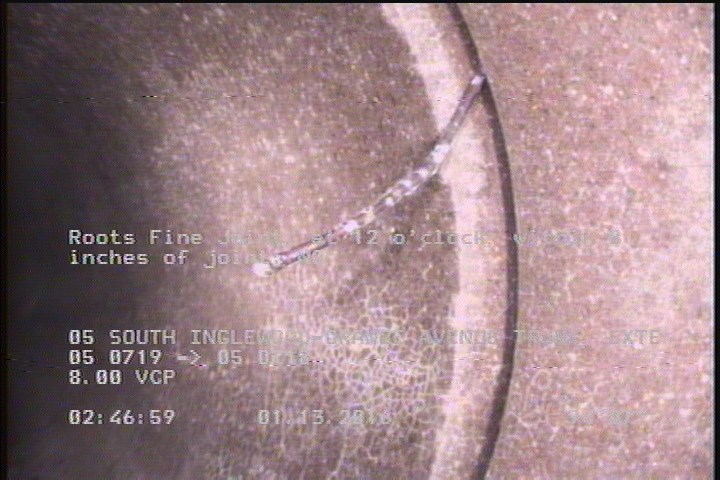

  • Roots Fine Joint, at 12 o'clock, within 8 inches of joint: NO

    94.6 ft. - Roots Fine Joint, at 12 o'clock, within 8 inches of joint: NO

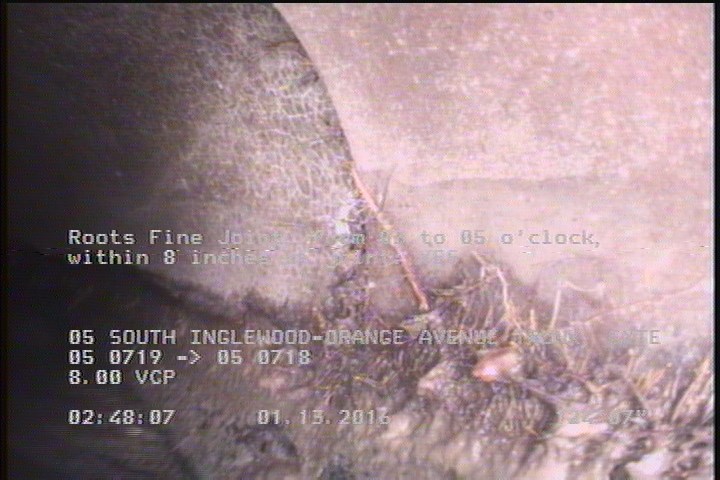

  • Roots Fine Joint, from 03 to 05 o'clock, within 8 inches of joint: YES

    124.6 ft. - Roots Fine Joint, from 03 to 05 o'clock, within 8 inches of joint: YES

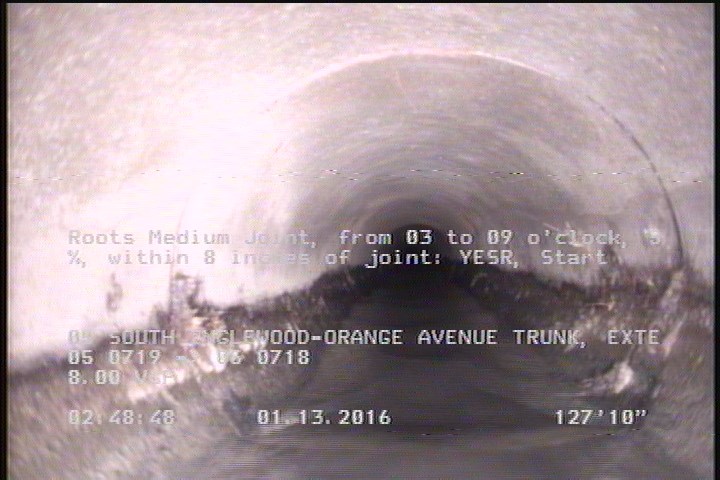

  • Roots Medium Joint, from 03 to 09 o'clock, 5 %, within 8 inches of joint: YESR, Start

    127.9 ft. - Roots Medium Joint, from 03 to 09 o'clock, 5 %, within 8 inches of joint: YESR, Start

All inspections of P05942Work order 547108

Observations (12)

DistanceCodeObservation
124.6RFJ—
0MWM—
33.5CM—
311.3RMJ—
127.9RMJ—
311.3CM—
94.6RFJ—
3.3DAGS—
0MWL—
311.3DAGS—
315.9AMH05 0718
0AMH05 0719

Properties (4)

additional_info
SC224495
custom_field_two
3
customer
LACSD
datetime
2016-01-13T02:39:11-08:00
